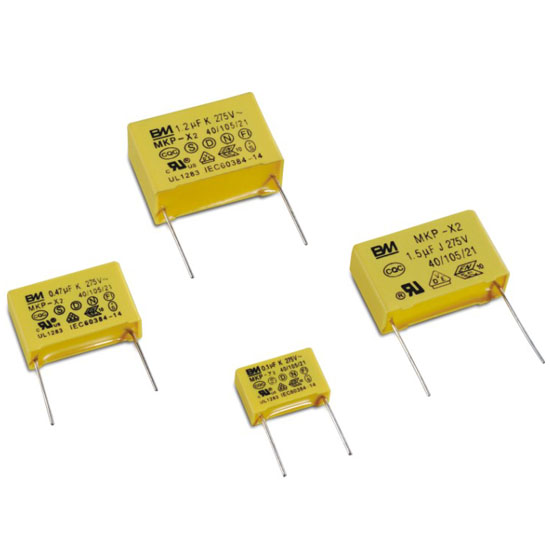

Fixed Capacitor
Description
Contact Supplier
Description
Main application:
- Widely used in induction cooker, ammeter, TV set, high-powered electrical rectifier, save energy lamp and all kinds of high -powered switch electrical source, electrical tool, etc. electric appliance which need the high electrical performance.
- Used in AC pulse circuit, electrical network connection(electrical source connection, debase noise, coupling wire, bypass wire), filter wave circuit, restrain electronic light circuit, restrain interference circuit, jump firm safeguard circuit, EMI filter circuit, etc.
- Particular appearance, novel design.
- Withstand temperature up to 105℃,rust resistant and flame resistant PBT plastic container, enveloped with flame resistant epoxy resin.
- Withstand high voltage and resist outer electric interference ability.
- Adopting fortified metallized electrode, improve product’s ability of withstand high voltage and big current.
- Adopting standard pin distance, can meet the install requirement by automatic equipment.
- Adopting φ0.8 & φ1.0 standard size of tinned copper wire, can debase the wastage of signal availably.
- Non-inductive structure, low electric inductance, high insulation resistance, long life, stable temperature characteristic.
- Adopting excellent Polypropylene film as dielectric, advanced manufacture craft and automatic production equipment, can ensure products’ high quality standard, our products have the following features: excellent stability, good self-healing performance, low dissipation factor in high frequency, excellent frequency characteristic, high precision capacitance, can withstand big current, high insulation resistance, long using life, can withstand 1.8KV pulse voltage, etc.
- Flame resistant performance up to UL94/V-0 grade.
- According with green environment protection ROHS standard of Europe alliance.
- Reference standard: GB14472-1998/UL1283/IEC6384-14(2nd Edition,1993).
- Capacitance range: 0.01μF - 12μF.
- Capacitance tolerance: ±5%(J)、10%(K)、±20%(M).
- Rated voltage: 275V AC.
- Rated frequency: 50/60Hz.
- Tangent of loss angle: ≤0.001(frequency:1kHz, 1V temperature:20℃).
- Insulation resistance (temperature: 20℃):
- C≤0.33μF Rs≥15,000MΩ.
- C> 0.33μF C×Rs≥5,000S .
- Withstand voltage between terminal: 4.3UnDC/10s.
- DV/DT : 100V/us.
- Climatic category: 40/105/21.
