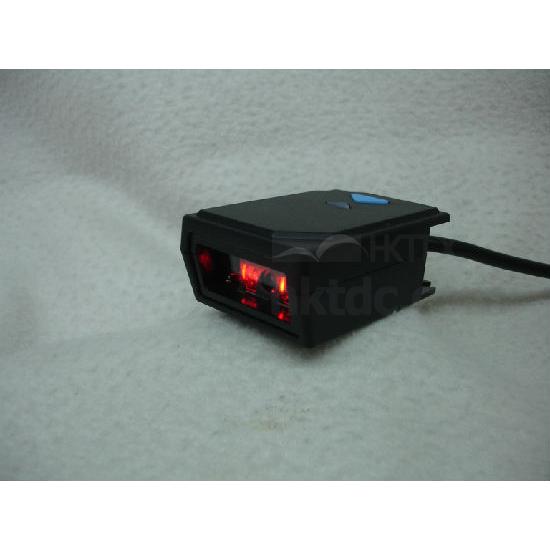

Fixed Type CCD Barcode Scanner

Model No.:

CM-008

Brand:

Canmax

Colour:

Black

Port:

Taiwan

Minimum Order Quantity:

1 piece(s)

Description

Contact Supplier

Output interface support: USB, PS2, RS232, USB COM.
Readable barcode type: EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC add-on, code-39, code-32, codabar/Nw7, UCC/EAN/code-128, industrial-25, interleaved-25, martix-25, , MSI/plessey, RSS (GS1 databar).
Light source: 630nm red LED lamp.
Read sensor: linear CCD image sensor.
Scan rate: 250 scan/sec.
Reading distance: 50mm-250mm.
PCS: up to 0.3.
Resolution: 4mil (code 39, 9 digits, PCS: 0.9).
Reading indicator: green LED and buzzer.
Size: 46.2 x 27.9 x 69.8mm.
Configuration: user manual or via USB COM I/F from PC.
Weight: 80g (without cable & stand).
Cable: 1.8m straight type.
Drop durability: 1m drop onto concrete surface.
Safety standard: FCC class A and CE.
Voltage: 5V ± 5%.
Environmental temperature: operation: 0-50°C, storage: -10-60°C.
Environmental humidity: operation: 10-90% RH, storage: 5-90% RH.
Power consumption: 65-75mA.
Stand by power: 5uA (0.005mA) via keyboard mode.
