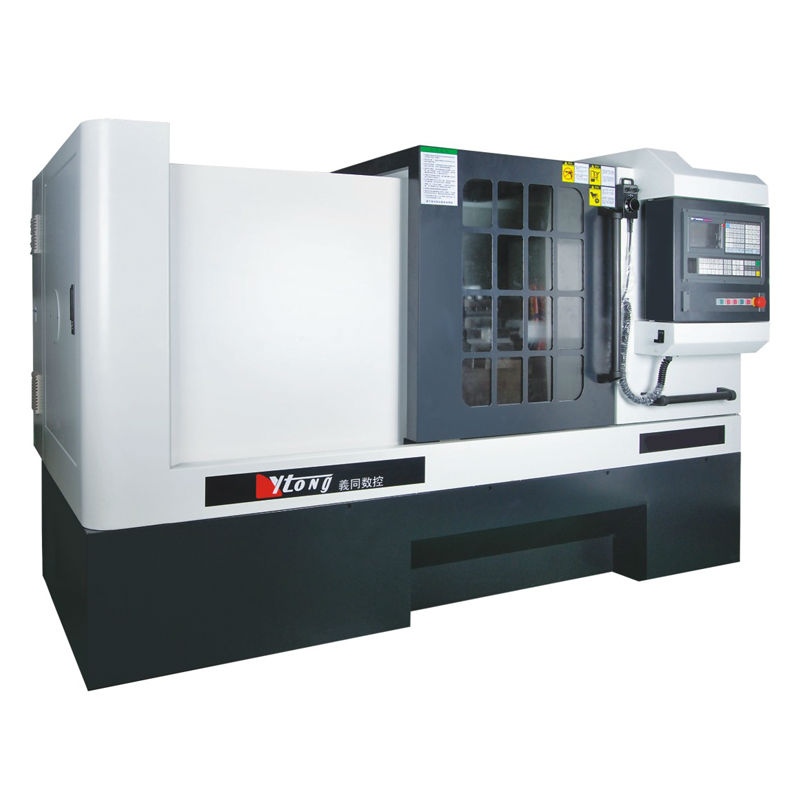

Flat Bed Type CNC Lathe

Model No.:

CK6140S

Brand:

Yitong

Size:

(L x W x H) 2805x1

Customised:

Yes

Description

Contact Supplier

Maximum swing diameter over table (mm): Φ420.
Maximum swing diameter over carriage (mm): Φ230.
Width of guide rail (mm): 350.
Distance between centers (mm): 750.
X axis effective working travel (mm): 230
Z axis effective working travel (mm): 750.
Spindle head model: A2-6.
Spindle head taper hole: Mohs 6#.
Spindle bore diameter (mm): Φ66.
Maximum spindle rotation speed (rpm): 2000(requirements 2000-3000, need replace chuck).
Tool-station: four working or six.
Tool size: 25x25.
Tail type: manual.
Tailstock quill diameter: Φ60.
Tailstock sleeve taper hole: Mohs 4#.
Travel of tailstock sleeve: 100.
Main motor: 5.5.
X axis motor: 0.5.
Z axis motor: 1.
Coolant motor: 120.
Net weight: 700x2000.
Stock available: 100.
Standard tool turret CNC lathe
The flat bed go through ultrasonic frequency quenching and grinding,with good rigidity and high hardness
Guidway and lead screw adopt centralized and automatic lubrication to reduce thermal deformation to assure high accurancy.
Electric 4 position tool rest is positioned by precise chuck to achieve high accurancy of repeat positioning.
Rapid cam clamping device is used on tailstock.
Industrial highlights
Machine parts
Auto parts
Medical equippment parts
