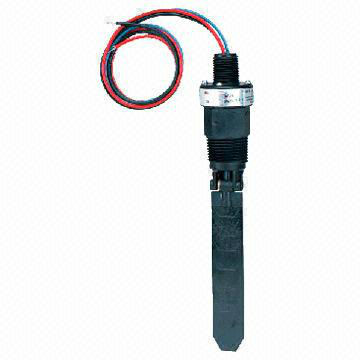

Flow Switch
Model No.:
Series V8
Brand:
Dwyer
Port:
Hong Kong
Description
Contact Supplier
Description
- V8 Flotect flow switch protects equipment: operation is simple and dependable
- In most applications, the switch is normally off while there is sufficient flow of liquid or air When flow stops, the vane spring moves the vane, actuating a single pole double throw switch rated 5A at 120/250V AC to start or stop motor, pump, engine
- Operate a damper or valve; shut down a burner or actuate an alarm or signal, protecting unattended equipment from damage or loss of production
- With leak proof body and vane constructed of tough durable polyphenylene sulfide which has excellent chemical resistance
- The full size trimmable vane is provided with molded-in graduations allowing for installation in a 1-inch through 6-inch pipe
- Operating pressures are up to 150 psig (10 bar) and temperatures to 212°F (100°C)
- Can be used in various chemical processes, industrial systems and similar applications where process conditions are compatible with polyphenylene sulfide, ceramic 8 and 316SS
- UL recognized as an industrial motor controller per UL standard 508, suitable for mounting in a protected environment
- Specifications:
- Service: compatible gases or liquids
- Wetted materials:
- Vane/body: polyphenylene sulfide (PPS)
- Pin/spring: 316 SS on Inconel
- Magnet: ceramic 8
- Temperature limit: 212°F (100°C)
- Pressure limit: 150 psig (10 bar)
- Enclosure rating: general purpose, WP and WP2 options are weatherproof
- Switch type: SPDT snap switch
- MV option: SPDT gold contact snap switch
- Electrical rating: 5A at 125/250V AC, 5A resistive, 3A inductive at 30V DC, 1A at 125V AC MV option, 1A resistive, 0.5A inductive at 30V DC
- Electrical connections: 18 AWG 18-inch (460mm) long
- Conduit connection: 1/2 inch male NPT, 1/2 inch female NPT on WP and WP2
- Process connection: 1 inch male NPT
- Mounting orientation: actuation/de-actuation flow rates
