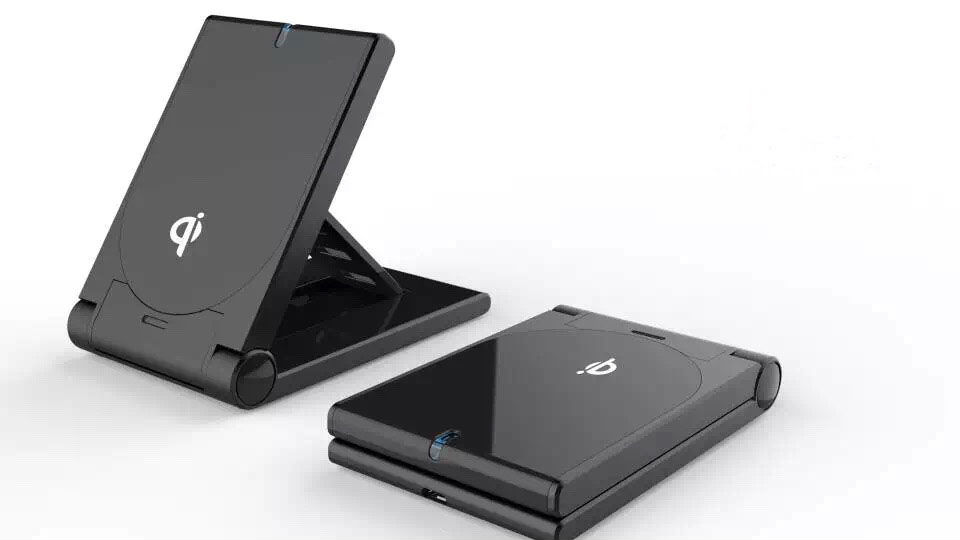

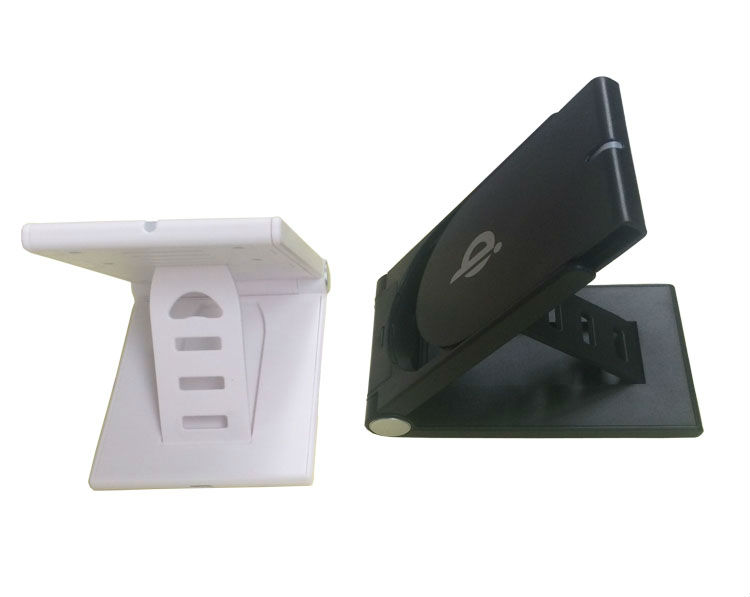

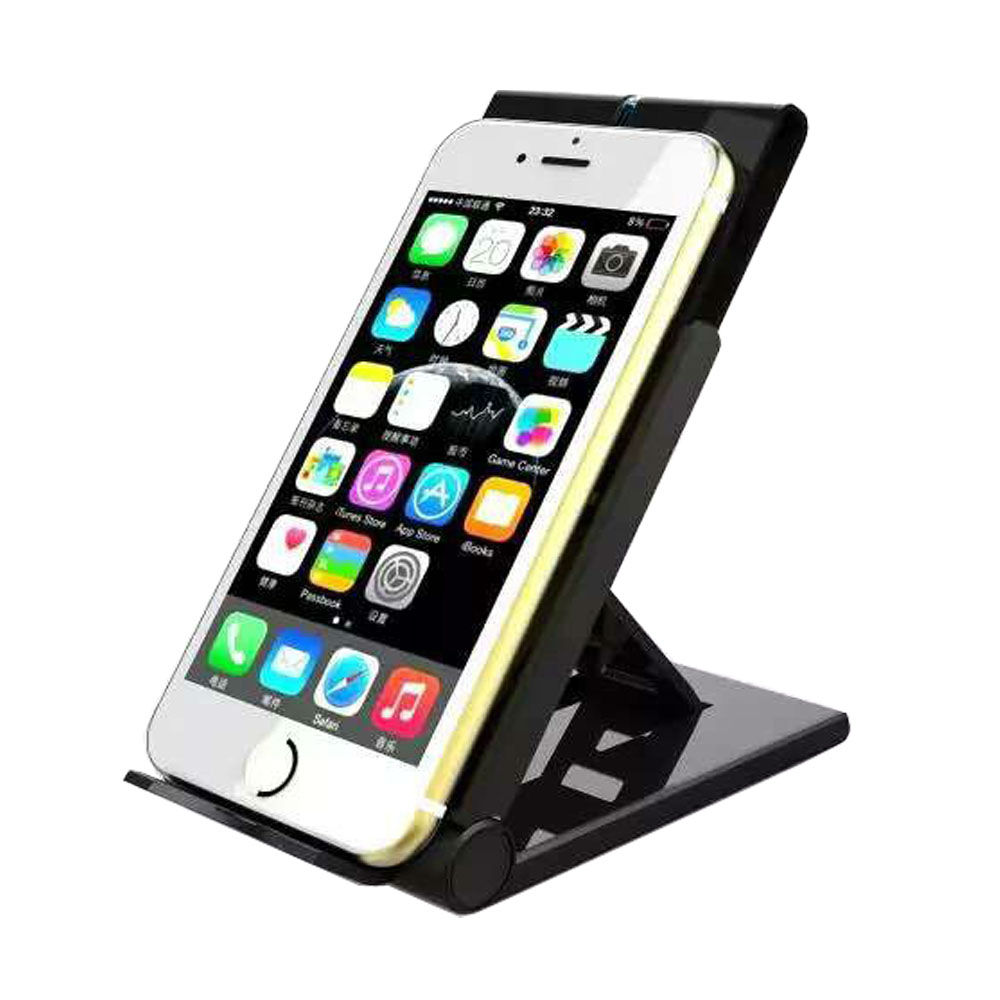

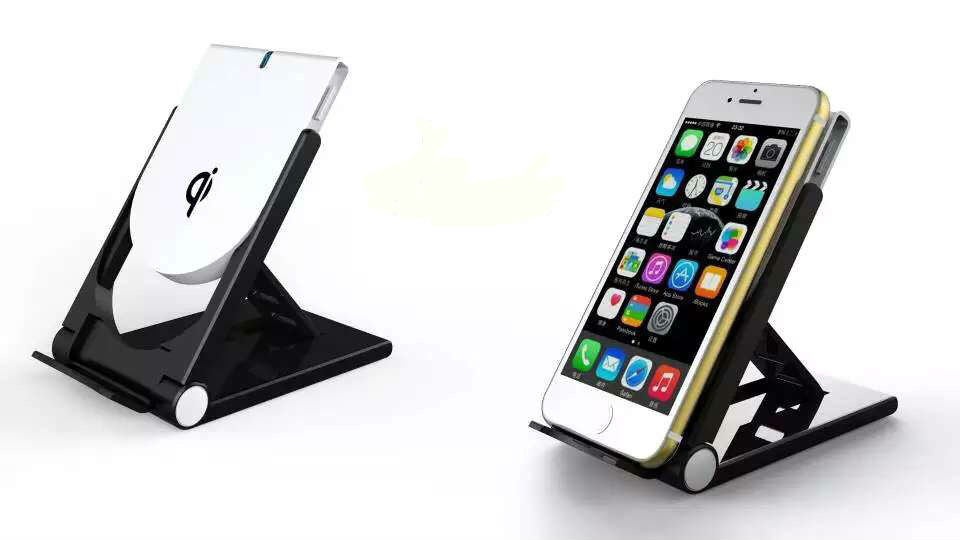

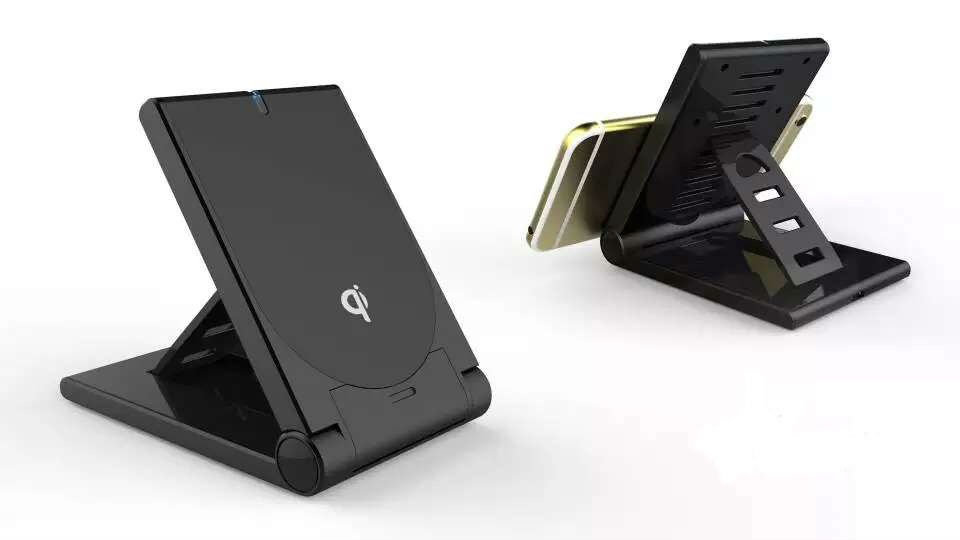

Foldable Wireless Charge Pad
Model No.:
509
Brand:
xingyangxing
Colour:
Black
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
100 piece(s)
Customised:
Yes
Type:
Portable
Compatible Brand:
Apple iPhones, Samsung
Description
Contact Supplier
Description
Function Parameter：
- 5W Input voltage/current: DC 5V /2A ，
- 5W Output Voltage/Current： DC 5V /1A(MAX)
- 10W Input voltage/current: DC 5V /2A OR 9V/1.67A ，
- 10W output voltage/current： DC 5V/1A(MAX) OR 9V/1.2A(MAX)
- Charging power : MAX 5W
- Transfer efficiency：70% to76%
- Effective distance：max 8mm，recommend distance 2mm~4mm
- Standby power：average power less than 50mw
- Over heat protection ：power off automatic when temperature over 60°and red led flash
- Over current protection：power off automatic when charging current over 2a
- FOD (foreign object detect) power off automatic when you place coil or metal material for example key upon the charging pad. the red led will flash.
- Standard：qi
- Indication led: SMT led ，blue light on when charging，green light on when charging full
- Working frequency: 110- 205khz
- Product size ： 10 cm ; color box size: 12x12.3x2.5cm
- Weight:100 g
- Power input： positive and negetive power wire or micro usb
- TX coil magnetic insulator diameter：5cm
- TX coil and magnetic insulator total thickness：3mm
