The Food Processing LED High Bay Light is specifically designed for use in challenging environments such as food and beverage, garden centers, and industrial facilities. It meets the requirements of NSF for food processing applications by not having any glass or exposed screws. The IP69K waterproof structure makes it ideal for areas that require hose-down cleaning. The Clean High Bay Series fixtures bring the benefits of LED lighting to high mounting heights in food processing facilities, which were traditionally limited to HID lighting.

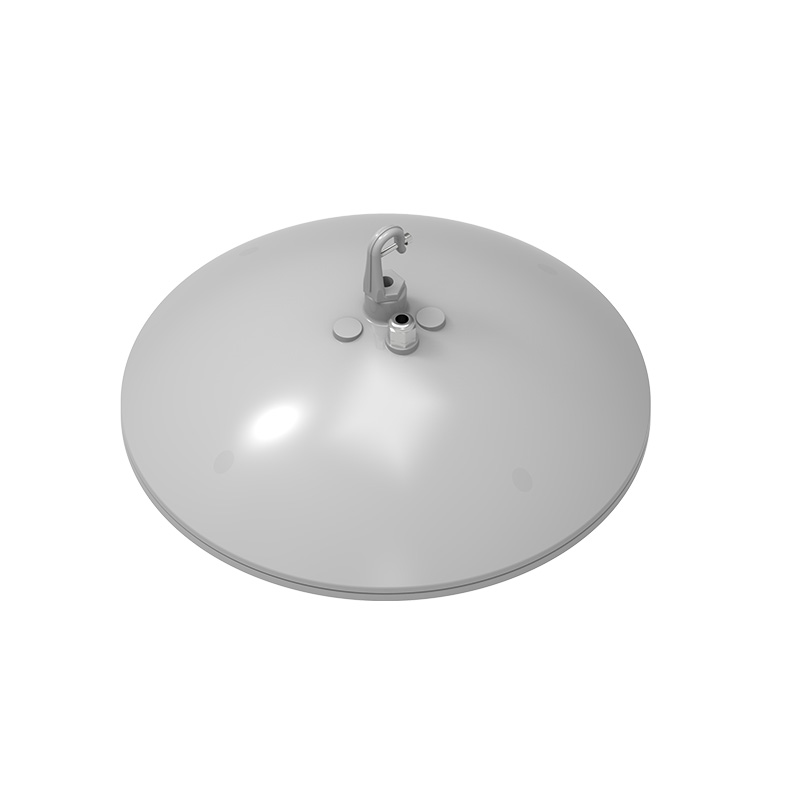

With no screws on the front, the smooth back of the high bay ensures minimal dust accumulation. This makes it easy to clean without the risk of any screws or small parts falling off when using a high-pressure water gun.
The surface coating of the high bay has been tested and meets the standards of REACH, ROHS, and HALOGEN, as confirmed by SGS. It is equipped with either a Meanwell HBG driver or a MOSO Isolated Driver, ensuring a high power factor (>0.96), low total harmonic distortion (THD), and flicker-free operation. Additionally, the high bay is environmentally friendly with no mercury, UV, or IR emissions.
Features:
Product Code | TBF10-100W | TBF10-120W | TBF10-150W | |
Power | 100W | 120W | 150W | |
Input Voltage | 90-305VAC | |||
Input Current | 0.47A | 0.57A | 0.66A | |
Power Factor | >0.98 220VAC | |||
Dimming Option | 0-10V/Dail Dimming | |||
CCT | 3000K/4000K/5000K/6000K | |||
RA>805000K | Luminous Flux | 14000Lm±5% | 16800Lm±5% | 21000Lm±5% |
Efficiency | 140Lm/W±5% | |||
RA>705000K | Luminous Flux | 15000Lm±5% | 18000Lm±5% | 225000Lm±5% |
Efficiency | 150Lm/W±5% | |||
LED Brand | 3030 | |||
Beam Angle | 60°/90°/120° | |||
Operation Temperature | -40℃~+45℃ | |||
Storage Temperature | -40℃~+85℃ | |||
Life Span | Ta 45℃ L70>54000Hours | |||
IP Class | IP69K | |||
IK Class | IK10 | |||
Certificate | CE, RoHs | |||
Lamp Body Color | Gray (RAL9007) | |||
Product Size (mm) | 400*400*197 | |||
Net weight (kg) ±0.3 | 5.8 | |||
Product Size (mm) | 470*470*210 | |||
Gross Weight ( kg ) ± 0.3 | 6.8 | |||
Installation | Hook/Pendant Mount |
