Frameless Panel Series
Share this page
US $25.00 - US $65.00
Production Lead Time:
30 day(s)
Shipping Method:
by sea
Model No.:
DWM606036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

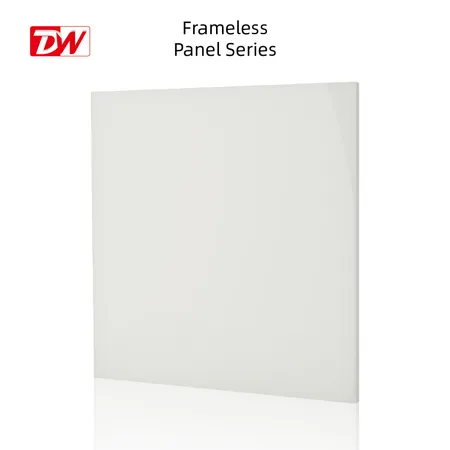

Frameless Panel  Series

No mental frame, Dolight frameless panel is just like a clear Crystal. Thick PMMA diffuser and good quality PMMA LGP shows, no worry about yellowing. It emits soft and even light which is comfortable for human’s eyes and offer innovative features. No only good for illumination, frameless panel is outstanding in decoration by connecting into different shapes.

◈  FEATURES

Frameless panel, there is no visible frame when you light it up;

Be able to connect one by one into different shapes;

Diversified installation way;

It is ideal products to build the panel ceiling and panel wall;

◈  ADVANTAGE

  TUV Listed CE, CB, and RoHS, SAA,ISO9001;

Be able to connect one by one into different shapes ;

It is ideal products to build the panel ceiling and panel wall;

Even light distribution, soft & smooth light, no glare.

◈  SPECIFICATION

Frameless Panel Light

Photometric Parameters

NO.

project

parameter

1

LED

SMD4014

2

Luminous Efficiency

>90 Lm/W

3

CCT

3000K-5700K (warm white,  natural white, cool white)

4

CRI

≥80

5

Beam Angle

120°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

Driver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.9

11

Protection Class

Class II

12

Rating IP

IP40

13

Material

Aluminum + PMMA

14

Frame Finishing

White

15

Installation

Recessed/Pendant

16

Working Temperature

-20~+45℃

17

Storing Temperature

-40~+60℃

18

Working Humidity

15%~90%RH

◈  SIZE

Efficiency

Model No.

Wattage

Luminous flux

CRI

LED

Dimension

95LM/W

DWM303018

18W

1440lm

80Ra

SMD4014

295x295x16.7mm

DWM606036

36W

3450lm

80Ra

SMD4014

595x595x16.7mm

DWM626236

36W

3450lm

80Ra

SMD4014

620x620x16.7mm

DWM3012036

36W

3450lm

80Ra

SMD4014

295x1195x16.7mm

◈  APPLICATION

 Showrooms

Boardrooms, offices, corridors

Retail outlets

Hospitals

Hotels, motels/hospital
