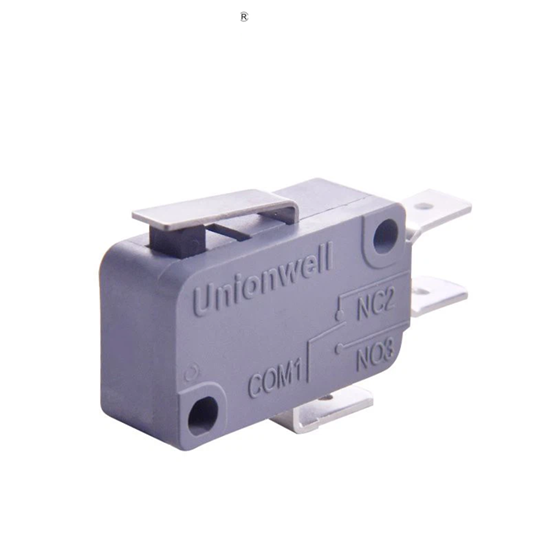

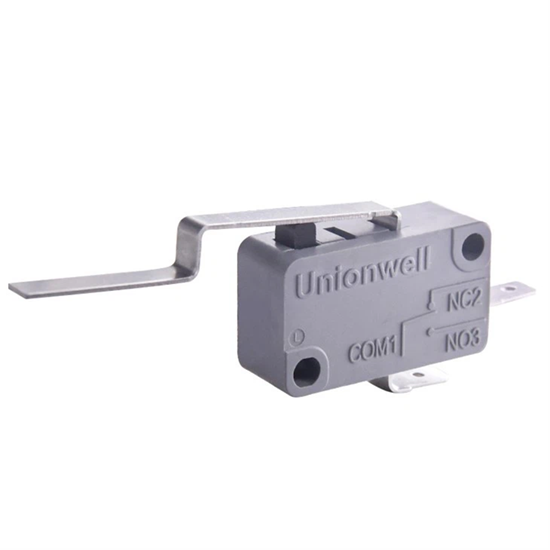

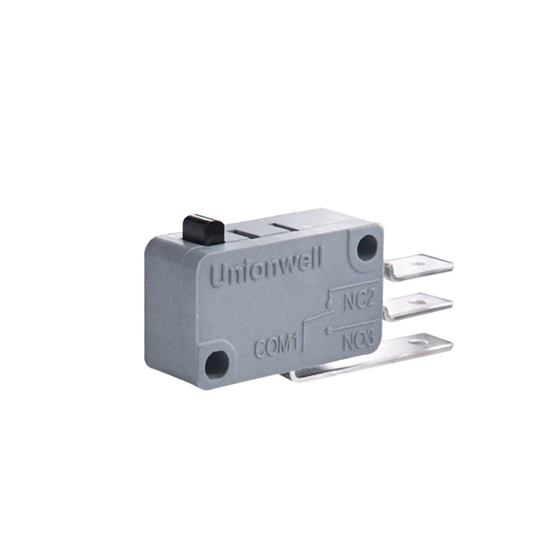

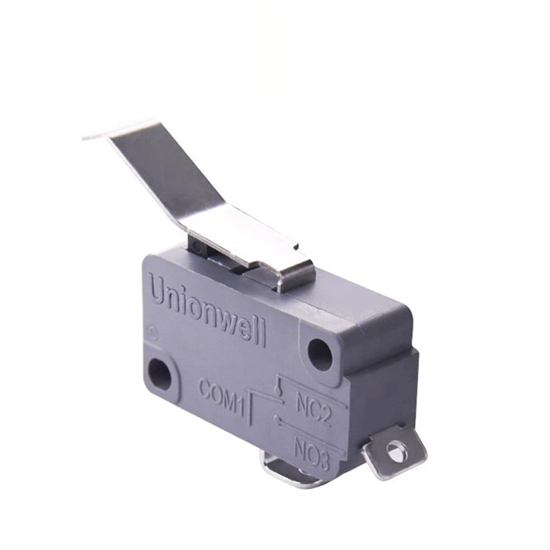

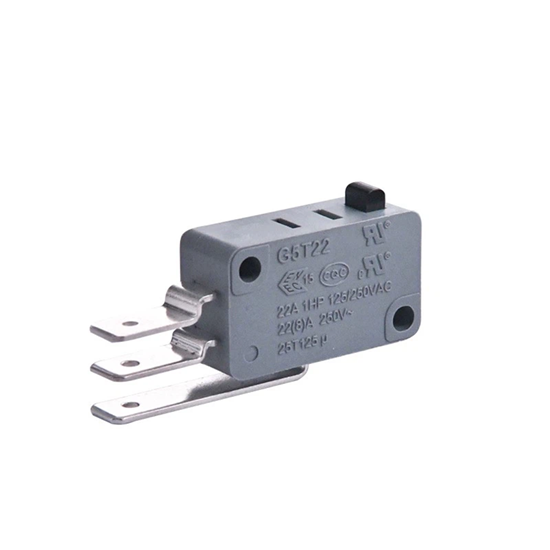

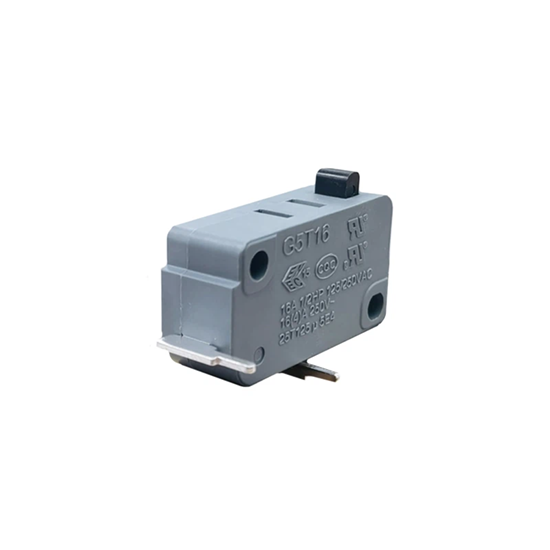

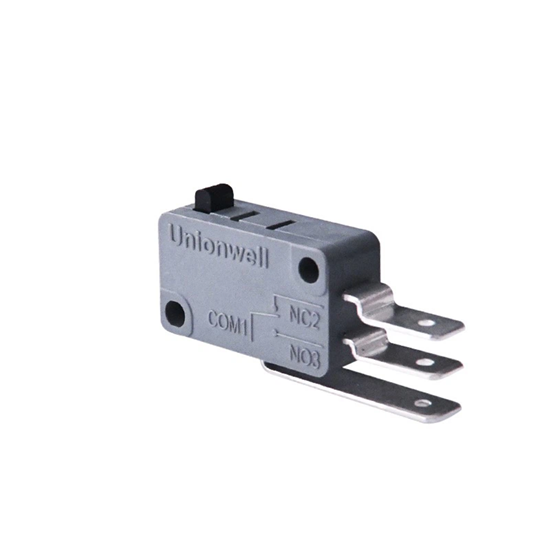

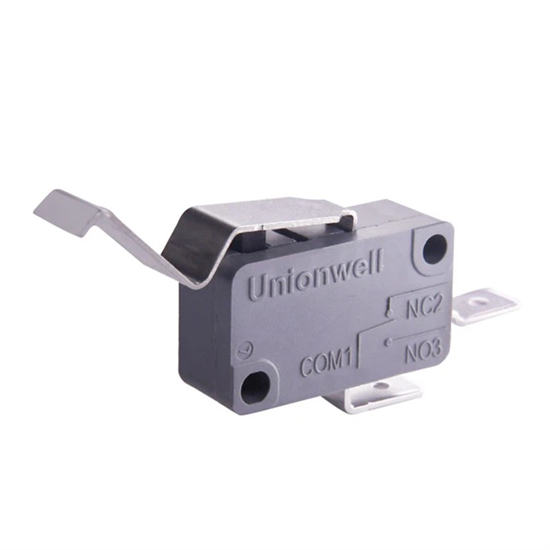

Switch color: Grey
Electrical rating: 0.1A 5A 10A 16A 22A 26A 125/250VAC
Electrical life: 50.000 cycles or 100.000 cycles depend on part no.
Mechanical life: 10.000.000 cycles
Storage temperature: 25T85 / 25T125 / 25T150
Storage humidity: 96% RH Max
Operation electrical frequency: 15 cycles/minute
Operation mechainicalfrequency: 60 cycles/minute
Operating force: 15gf/ 25gf/ 50gf/ 100gf/ 200gf/ 300gf/ 400gf max
Terminal type: Quick connect terminal/ left side PCB terminal/ Right side PCB terminal/ solder terminal.
Circuit: SPDT / SPST-NO / SPST-NC
