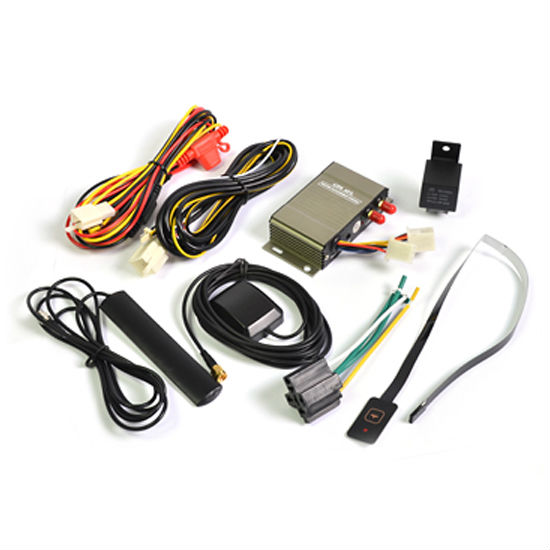

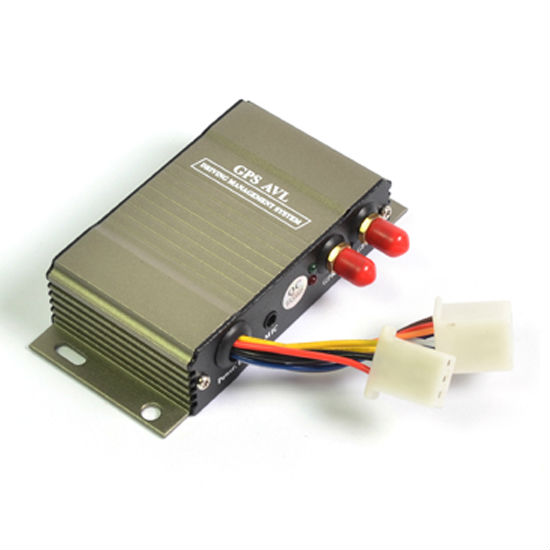

GPS Vehicle Tracker M528
Production Lead Time:
3 day(s)
Model No.:
M528
Description
Contact Supplier
Description
Functions:
- Small size and easy for installation.
- Real-time track by web system.
- SMS configuration and communication.
- Listening monitoring.
- Able to re-upload the location data in the condition that the GSM signal is weak.
- Disable or enable engine remotely.
- Detect the ignition on/off, door open/close, Air-condition on/off etc.
- Record mileage information.
- History playback.
- Emergency alarm.
- Power-off alarm.
- Over-speed alarm.
- Idling alarm.
- Parking alarm.
- Moving alarm.
- Acceleration alarm.
- Illegal door open alarm.
- Geo-fence alarm.
- Fatigue driving alarm.
- Hardware parameter.
- working voltage 8VDC～36VDC.
- Working current 50mA~160mA.
- GSM module inside contain frequency GSM 900/1800.
- inside contain frequency GSM 850/900/1800/1900Mhz (can tailor).
- Communication protocol UDP/TCP(can customize).
- GPS module GPS JRC 595 with SIRFⅢchipset.
- GPS sensitivity -159dBm.
- GPS frequency L1, 1575.42 MHz.
- C/A coding 1.023 MHz chip rate.
- Channels 20 channels for tracking.
- Position accuracy 10 meter, 2D RMS.
- Speed accuracy 0.1 meter/second.
- Time accuracy GPS synchronization.
- Default data WGS-84.
- Recover Average 0.1 second.
- Hot start Average 1 second.
- Warm start Average 38 second.
- Cold start Average 42 second.
- Height limit 18,000 meter (60,000 feet) max.
- Speed limit 515 kilometer/second (1000 knots)max.
- Acceleration limit Less than 4g.
- Expansion peripheral Peripherals can be accessed by an extension (such as: Handset /dispatch screen / camera etc.)
- Work temperature -20°～70° C.
- Storage temperature -30°～85° C.
- Humidity 5% ～95% non-condensing.
- Terminal size 10.1×5×2.4 cm.
- Inside battery Continuing working not less than 4 hours.
- LED light Red: MCU status; yellow: module status.
