Features:

• Boost cell phone signal to reduce drop/off calls and improve communication quality.
• Great for covering weak and blind GSM 900 and 1800MHz mobile signal zones.
• Ultra mini size.
• Modern design.
• Easy installation, maintenance and operation.
• High gain, low consumption, low interference to BTS.
• Reduce cellphone transmit power and radiation, extend cellphone battery life.

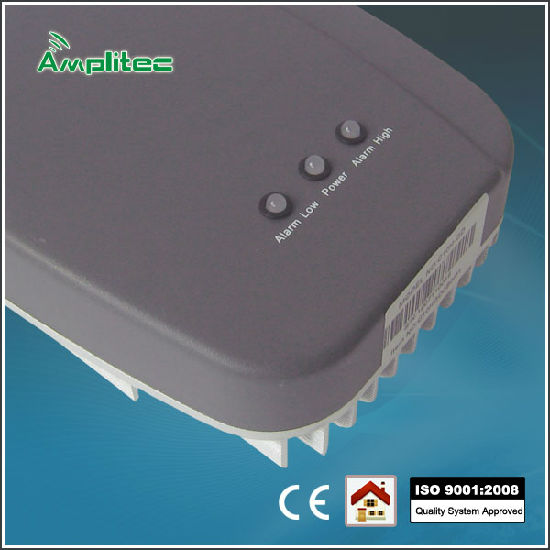

• LED light working and signal condition indicators.
• Works in all countries were both 900 & 1800MHz GSM are in use.
• Apply to approximate 200~500 square meters GSM mobile signal coverage.
• To amplify both GSM900 & 1800MHz mobile signal frequency.
• Perfect indoor repeater solution of GSM 900 and 1800MHz mobile signal extender.

• Frequency: GSM: uplink (890-915MHz). Downlink (935-960MHz); DCS: uplink (1710-1775MHz). Downlink (1805-1870MHz).
• Gain: uplink (55±2dB). Downlink (60±2dB).
• Output power: ≥15dBm.
• Power consumption: <10W.
• Power supply: DC: 5V/3A.

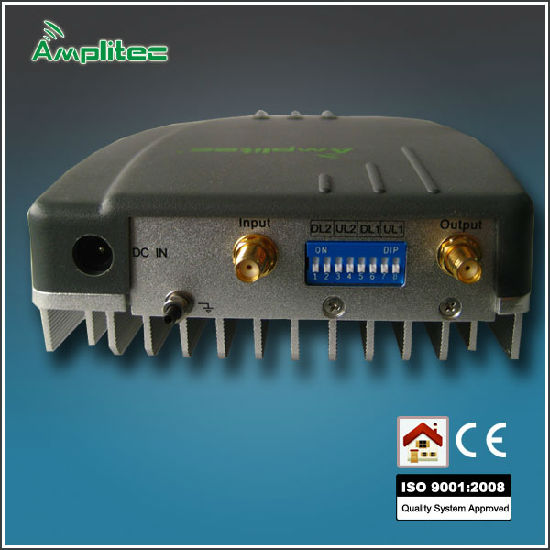

• RF connector: SMA-female.
• Weight: ≤1kg.
• Size: 183 x 127 x 50mm.
