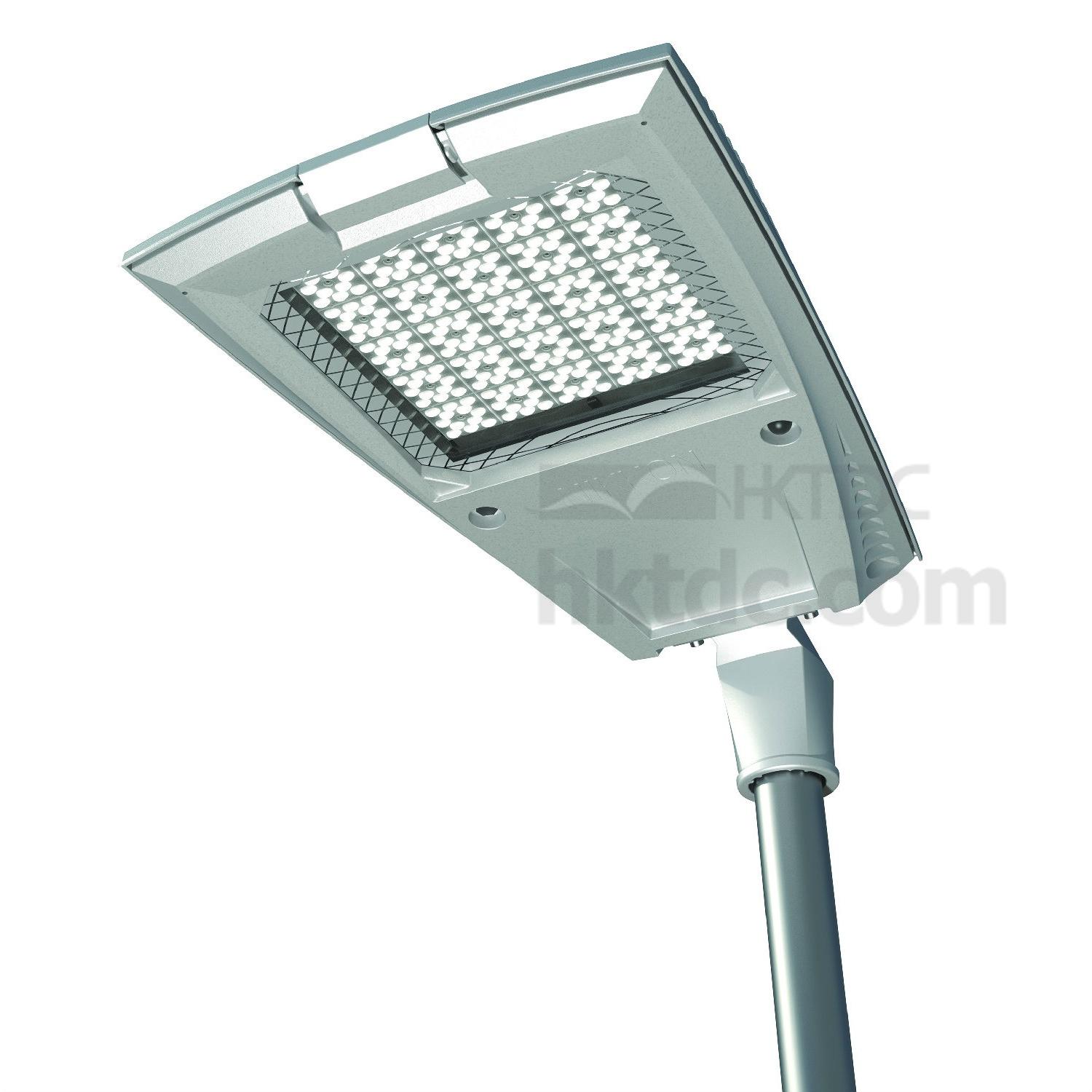

Galaxy M2
Model No.:
M1 & M2
Type of Payment:
TT in advanced upon confirmation and/or before delivery, Irrevocable LC at Sight
Minimum Order Quantity:
No MOQ
Voltage(V):
220-240
Wattage(W):
30-200
Light Source:
LED Bulb
Style:
Modern
Including Bulbs:
Yes
Protection Level:
IP66
Customized:
Yes
Description
Contact Supplier
Description
1) Luminaire Technical Specifications
4) Application
- System Power : M1 - 30W, 60W & 90W
M2 - 120W, 140, 160W, 180W & 200W - Fitting Material : Non-corrosive Die-cast Aluminium
- Fitting Color : White Aluminium, Akzo Nobel RAL9006
- Optical Cover : High Transparency Tempered Glass
- Ingress Protection : IP66
- Impact Portection : IK08
- Electrical Safety Class : Class I (Class II upon request)
- Operating Temperature : -30 ~ +55°C
- Surge Protections : 10KV, 20KA
- Installation : M1 - 48mm & 60mm
M2 - 60mm - Nett Weight : M1 - 9kg
M2 - 17kg
- LEDs : Lumileds 3030 2D
- Color Temperature : 3000K, 4000K, 5000K
- L70 : 54,000 hrs @ 25°C
- PCB Material : Metal Core
- Lens Type : Type II, Type III
- 50/60HZ
- LED Driver : Constant Current - Output 1-10v Dimming
Time Dimming Control (upon request) - Control System : Intelligent Light Control System (iLCS) with GPS
4) Application
- M1 : Pathways, Car Parks, Foot Paths, Access Ways, Parks, Road Lightings, Residential Areas, Pedestrian Areas
- M2 : Pedestrian Areas, Residential Areas, Rural Roads, Urban Roads, Expressway Lightings
