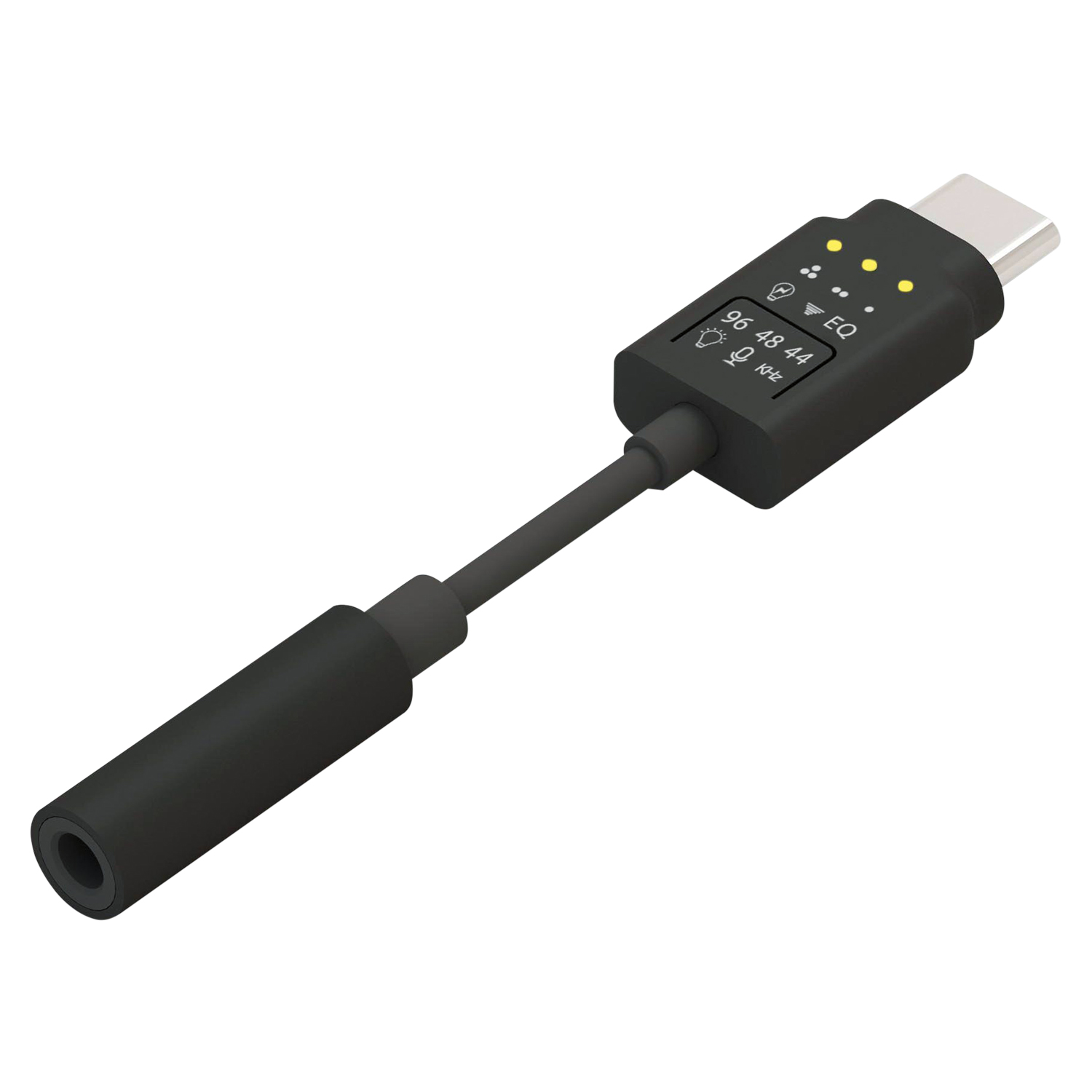

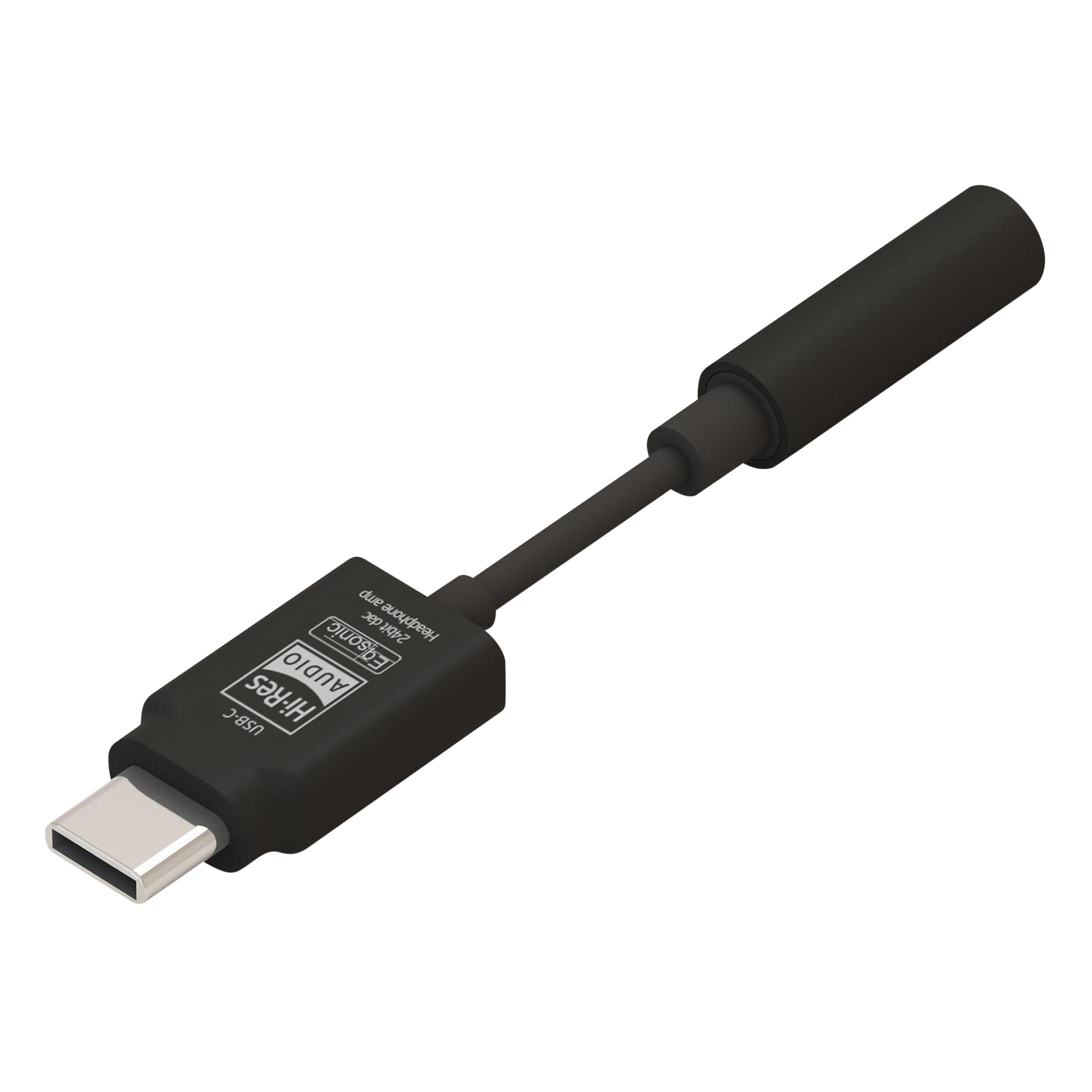

Gaming USB-C Audio Adapter Cable
Production Lead Time:
42 day(s)
Model No.:
AUHA05A
Brand:
SYBASONIC
Colour:
Black
Size:
143 x 12 x 7mm
Port:
Hong Kong
Type of Payment:
PayPal
Minimum Order Quantity:
1
Type:
Mini Amplifier
Place of Origin:
Mainland China
Package:
Yes
Customised:
Yes
Output Power:
2
Output Type:
3.5mm Stereo Audio
Channels:
2
Input Type:
USB Type-C
Description
Contact Supplier
Description
USB-C to 3.5mm 96KHz / 24-bit Audio Adapter Cable with EQ sound effect
Specification
Specification
- Complies with Universal Serial Bus 2.0 specification with USB Type-C interface
- Capable data transfer rate at 12Mbps
- USB bus-powered mode, no external power required
- Compliant with USB audio device class specification 1.0
- True digital to analogue conversion
- Control IC:
- DAC: BES Technic BES3100
- Headphone Amplifier: Maxim MAX97220AA
- Support sampling rate at 96KHz 24-bit
- LED indicator show 96KHz, 48KHz, 44.1KHz working frequency
- Built-in microphone for phone conversation (for supported mobile phones)
- Built-in 3 levels of hardware EQ selectable by a control button
- Audio output parameters
- Support most 3.5mm 3 pole 16-600ohm headset in the market
- Output Power (W): 125mW (max) per channel
- Signal to Noise Ratio (SNR): Around 100dB (A-weighting)
- Total Harmonic Distortion(THD+N): 0.003% (A-Weighting)
- Crosstalk: >=110dB
- Support power delivery charging port
- Support charging and listening to music at the same time
- Compliant with power delivery 3.0 60W fast charging standard
- LED indicator for different charging voltages
- Purple: 9V or above fast charging
- Red: 5V normal charging
- Chipset: LDR6023
- Fully plug & play, and hot swap compatible
- Elegant ABS plastic housing in black
- Product size
- Total Length: 143mm
- Cable Length: 80mm (exclude 3.5mm connector and main unit)
- Default Packaging: PE bag with a product sticker
- Support most of the mobile phone brand
- American: Google Pixel 2 /2XL / Nexus, Motorola Z / Z2
- Chinese: Huawei Mate9 / Mate10, Xiaomi, One Plus5 / 5T, LeEco, Smartisan, Nubia, Asus
- Korean: Samsung S8 / S9 / Note8, LG V30
- Japanese: Sony
- Others: Nokia
- Support notebooks with USB Type-C connectors: MacBook, MacBook Pro, HP, Dell, Samsung
