• Table size (mm): 4000x1800.
• Travel longitude(X) (mm): 4000.
• Travel crossward(Y) (mm): 2200(effective cutting 2100).
• Travel vertical (Z) (mm): 1000.
• Distance between spindle and table (mm): 250-1250.
• Spindle rotation speed (rpm): 6000.
• Spindle taper: BT50.
• Spindle motor (KW): 22.
• Spindle rotation mode (standard): Belt type.
• Rapid longitude (X) (m/min): 12.
• Rapid crossward (Y) (m/min): 12.
• Rapid vertical (Z) (m/min): 12.
• Cutting feed m/min: 8.
• Positioning accuracy (m/min): 0.01.
• Minimum set moving unit(mm): 0.001.
• Net weight (KG): 41500.
• Maximum load of table (KG): 10000.
• Stock available: 100.

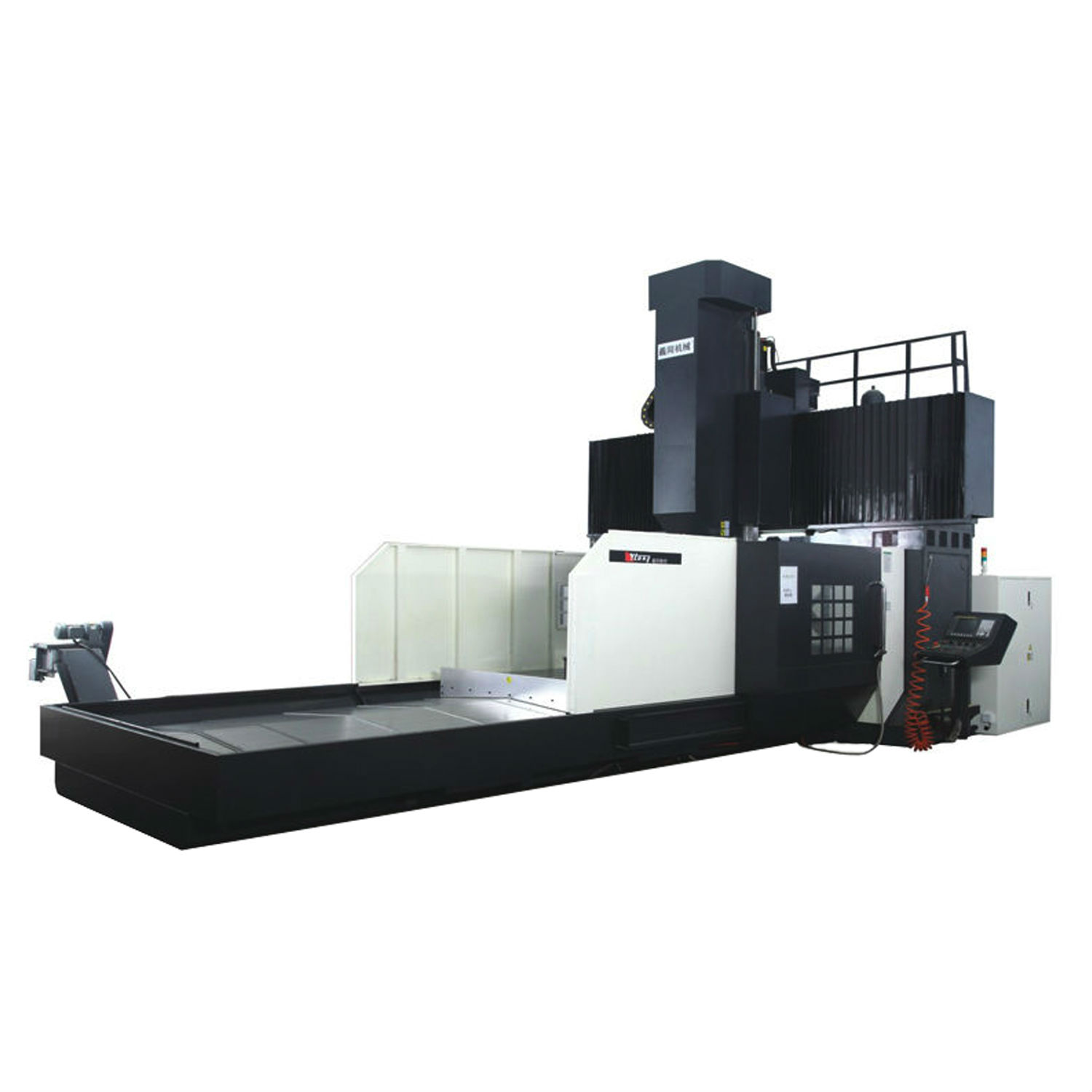

Gantry machining center
Strong cutting,applicable for processing of giant moulding and work piece with high accurancy needs

Perfect performance,good quality

Best application effect for auto body mould,engine cover mould,big scale display screen and other big precise parts processing.

Strong processing ability benefit from super heavy loading structur design, Gear spindle is optional to realize precise processing for heavy cutting.

Super rigid roller lead screw linear guide has both heavy cutting feature of hard way and fast speed cutting of linear guide.

Modulization design to meet various kinds of processing needs.

Machine type has automatic pentahedron and vertical and horizontal dual output pentahedron two options.

Industrial highlights
Household appliance moulding

Auto interior trim moulding

Auto front bumper moulding
