Gateway
US $171.00 - US $228.00
US $180.00 - US $240.00
Production Lead Time:
15 day(s)
Type of Payment:
Alipay
Place of Origin:
Hubei, China
Size:
440 x 230 x 44 mm
Brand:
YUHONG
Colors Available:
Light green
Description
Contact Supplier
Description

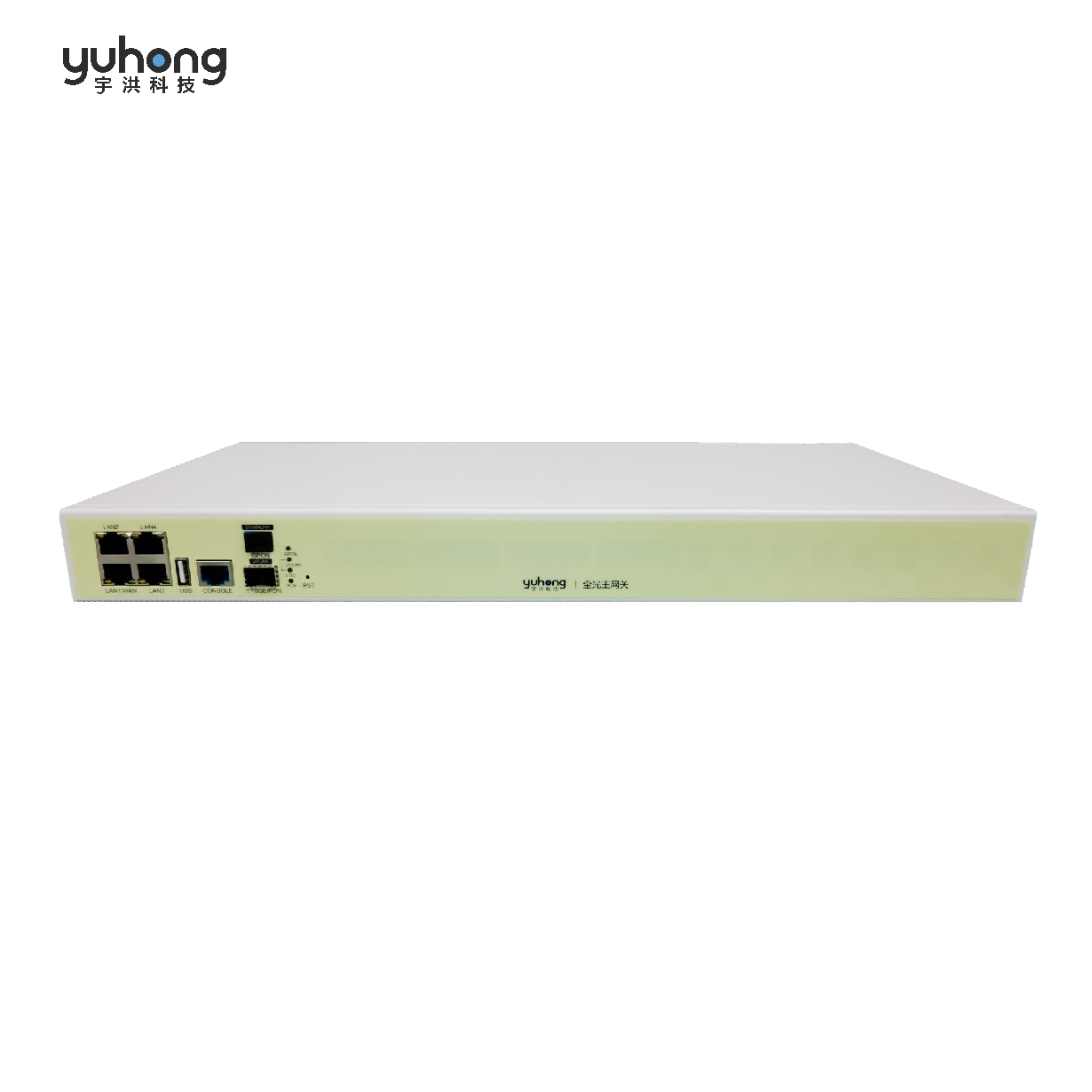

The product is an all-optical converged gateway device designed to support various uplink modes such as Ethernet GE/10G or GPON/XG(S)-PON, enabling all-optical access for enterprises. In addition to multiple Gigabit LAN ports, it offers downlink PON ports that can be paired with sub-optical devices for terminal wired or wireless access. Optionally, it includes a downstream PoF port (powered by a fiber-optic composite cable) and can work with WiFi-type sub-optical devices to provide Wi-Fi wireless access. This integrated optical gateway device is ideal for deployment in network environments such as small and medium-sized enterprises, small hotels, B&Bs, restaurants, child care centers, KTVs, supermarkets, and clinics.
Model No.: GXR101.
Main performance:
- Four GE (LAN1 supports LAN/WAN multiplexing).
- One GPON (connectable to an external optical splitter).
Material: Metal shell.
Size (approx.): 440 x 230 x 44 mm.
Transmission Distance: 20 km.
Operating Voltage: AC 100-240 V, 50/60 Hz.
Power Consumption: 30 W/3 A.
Weight: 2.5 kg.
