The all-optical converged gateway device is designed to support various uplink modes, including Ethernet GE/10G and GPON/XG(S)-PON, enabling seamless all-optical access for enterprises. This versatile gateway device features multiple Gigabit LAN ports and downlink PON ports, which can be paired with sub-optical cats to facilitate both wired and wireless terminal access. Additionally, the gateway includes a downstream PoF port, allowing power to be supplied via a fiber-optic composite cable. It also integrates with WiFi-type sub-optical cats to provide reliable Wi-Fi wireless access, ensuring comprehensive connectivity solutions for modern enterprise environments

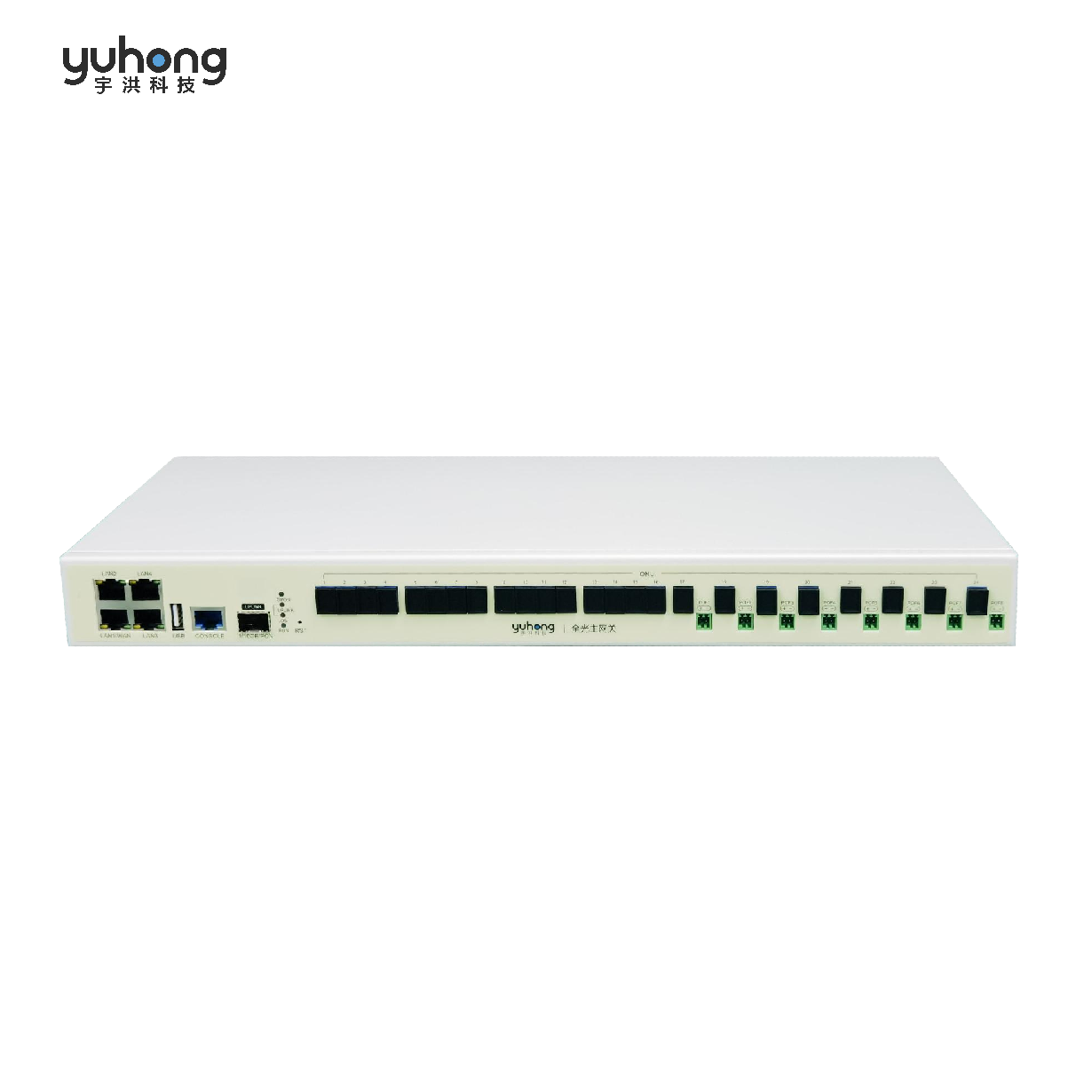

Model No.: GXR101 Pro.

Main performance:

• Four GE (LAN1 supports LAN/WAN multiplexing).
• One GPON (connectable to an external optical splitter).

Material: Metal shell.

Size (approx.): 440 x 230 x 44 mm.

Transmission Distance: 20 km.

Operating Voltage: AC 100-240 V, 50/60 Hz.

Power Consumption: 30 W/3 A.

Weight: 3.5 kg.
