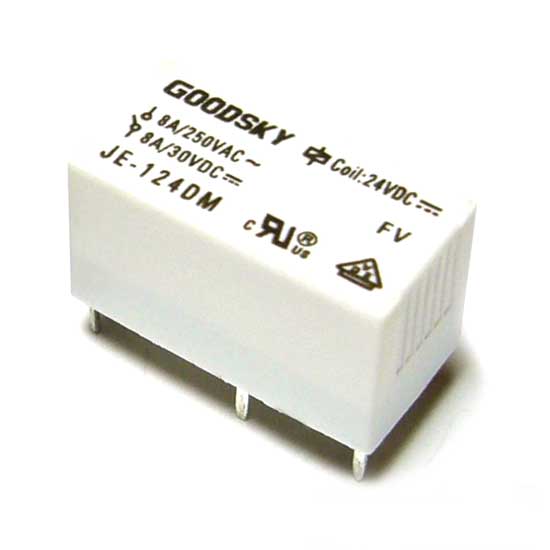

General Control Relay
Brand:
Goodsky Relay
Size:
20(L) x 10(W) x 10.5(H)mm
Description
Contact Supplier
Description
This general control relay is designed to operate a circuit with a low-power signal. A sensitive coil delivers reliable performance. Its high quality construction complies with international safety standards.
- Weight 6.0g.
- 1N/O and 1C/O contact.
- Sensitive coil (200mW).
- Dielectric strength between coil and contact: 4KV.
- Low profile: 10.5 mm.
- Class I protection conforms to industrial norm (clearance and creepage: more than 5.0 mm).
- Cadmium-free contacts.
- In accordance with IEC 60730-1.
- Halogen-free relay available.
- Contact form: SPST/SPDT.
- Contact rating: (1C) 5A/250VAC, 5A/30VDC/(1A) 8A/250VAC, 8A/30VDC.
- Coil voltage: DC 3, 5, 6, 9, 12, 24, 48 AC.
- Power consumption: 0.2W.
- Dielectric strength (50/60 Hz for 1 minute): (between coil and contact) AC 4,000V/(between contact) AC 1,000V.
- Safety standards: UL, C-UL, VDE.
- Mounting method: PC board terminal.
