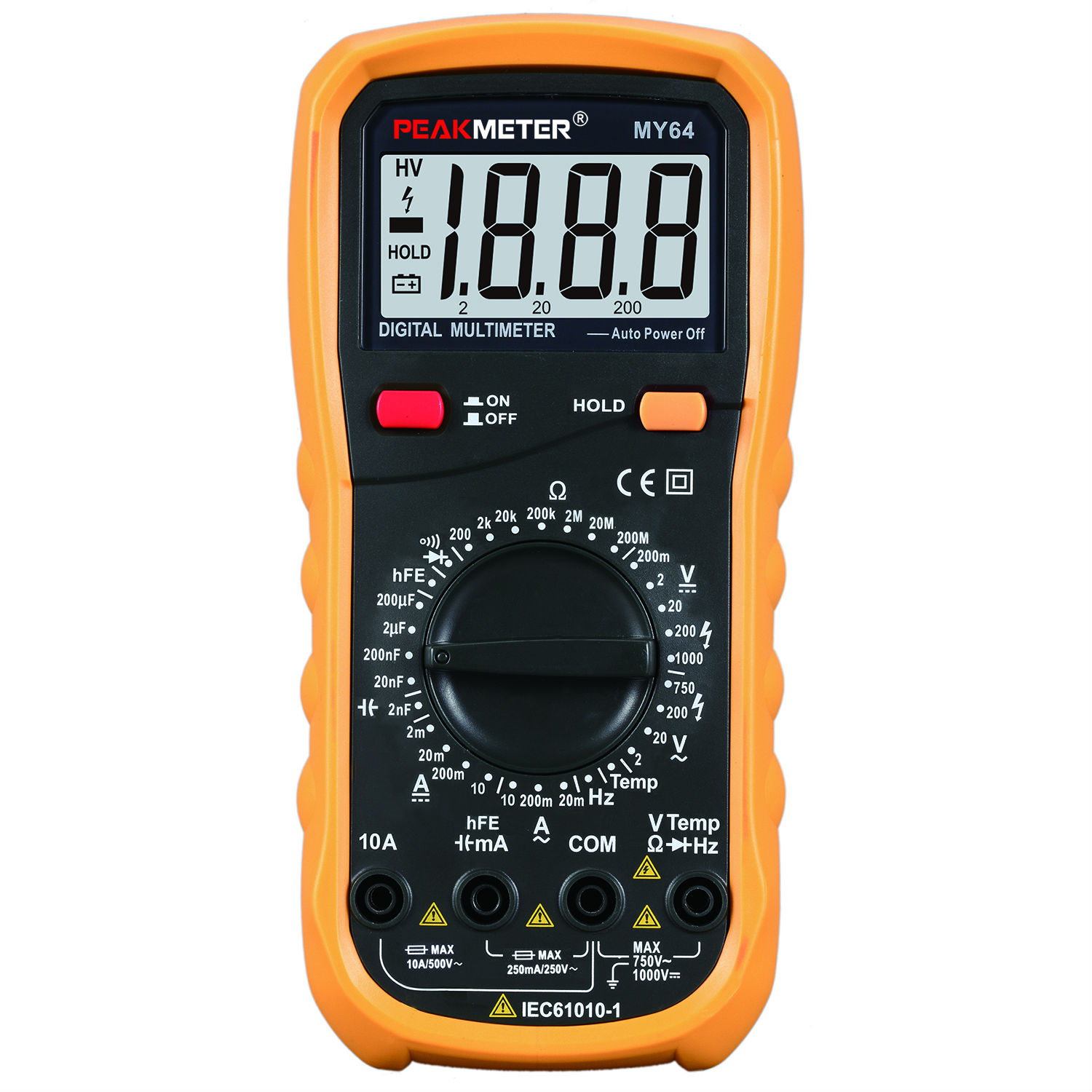

General Purpose Digital Multimeter
Production Lead Time:
30 day(s)
Model No.:
MY64
Brand:
Peakmeter
Colour:
Yellow /Black
Type:
Multimeter
Description
Contact Supplier
Description
3 1/2 digits LCD, max. reading 1999 Data hold for easy reading Temperature and frequency measurement Continuity check with buzzer 10A fused, full ranges protection Auto power off High safety design as per latest IEC1010-1 Cat.II 1000V & Cat. III 600V Technical specifications DCV: 200m/2/20/200/1000V, ±0.5% ACV: 2/20/200/750V, ±0.8% DCA: 2m/20m/200m/10A, ±1.5% ACA: 20m/200m/10A, ±1.8% OHM: 200/2k/20k/200k/2M/20M/200MΩ, ±0.8% CAP: 2n/20n/200n/2u/100uF, ±4.0% TEMP: -20℃ ~1000℃, ±2.0% FREQ: 20kHz, ±1.5% Audible continuity: 50Ω Diode test: 2.8V/1.0mA Transistor hFE: 0~1000 Dimensions & weight: 89x190x51mm, 412g Battery: 9Vx1, 6F22 Accessories: holster, temp probe
