General-Purpose Relay
Production Lead Time:
14 day(s)
Model No.:

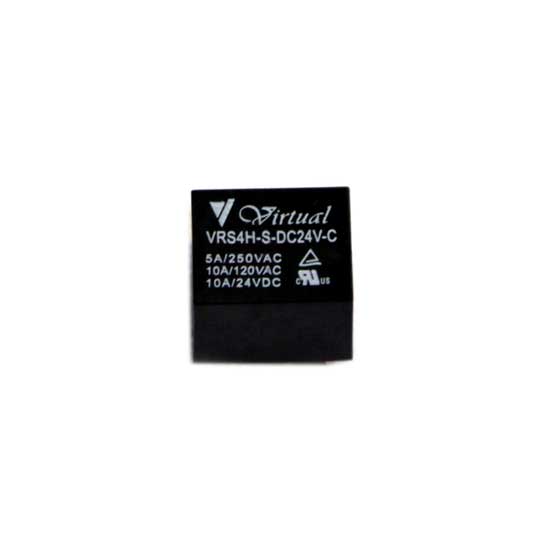

VRS4H-S-DC24V-C
Size:
(L x W x H) 19 x 15.2 x 15.5mm
Port:
Baoji
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description
This general-purpose relay with a 15A switching capability features a super miniature standard PCB layout. The quality 1A and 1C configuration promises operation easiness. There are wash-tight and flux-proof types available.
- Contact form: 1A and 1C.
- Contact material: AgSnO2 and AgCdO.
- Max. rated switching current (resistive load): 10A.
- Max. switching voltage: 250V AC/30V DC.
- Max. switching power: 2,770VA/210W.
- 10A 250V AC/28V DC.
- 5A/250V AC.
- 10A/120V AC.
- 10A/24V DC.
- Certificate: CRU US.
