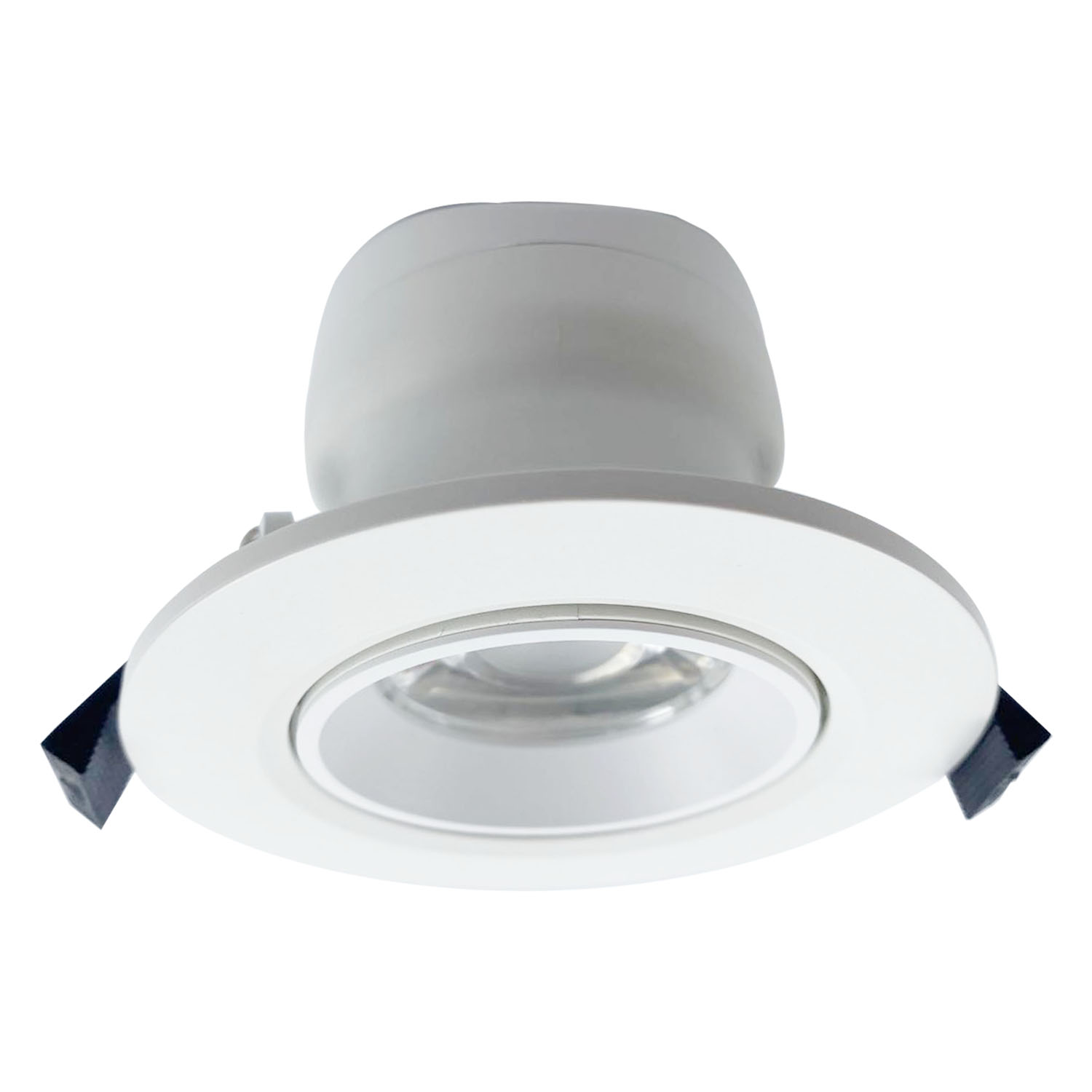

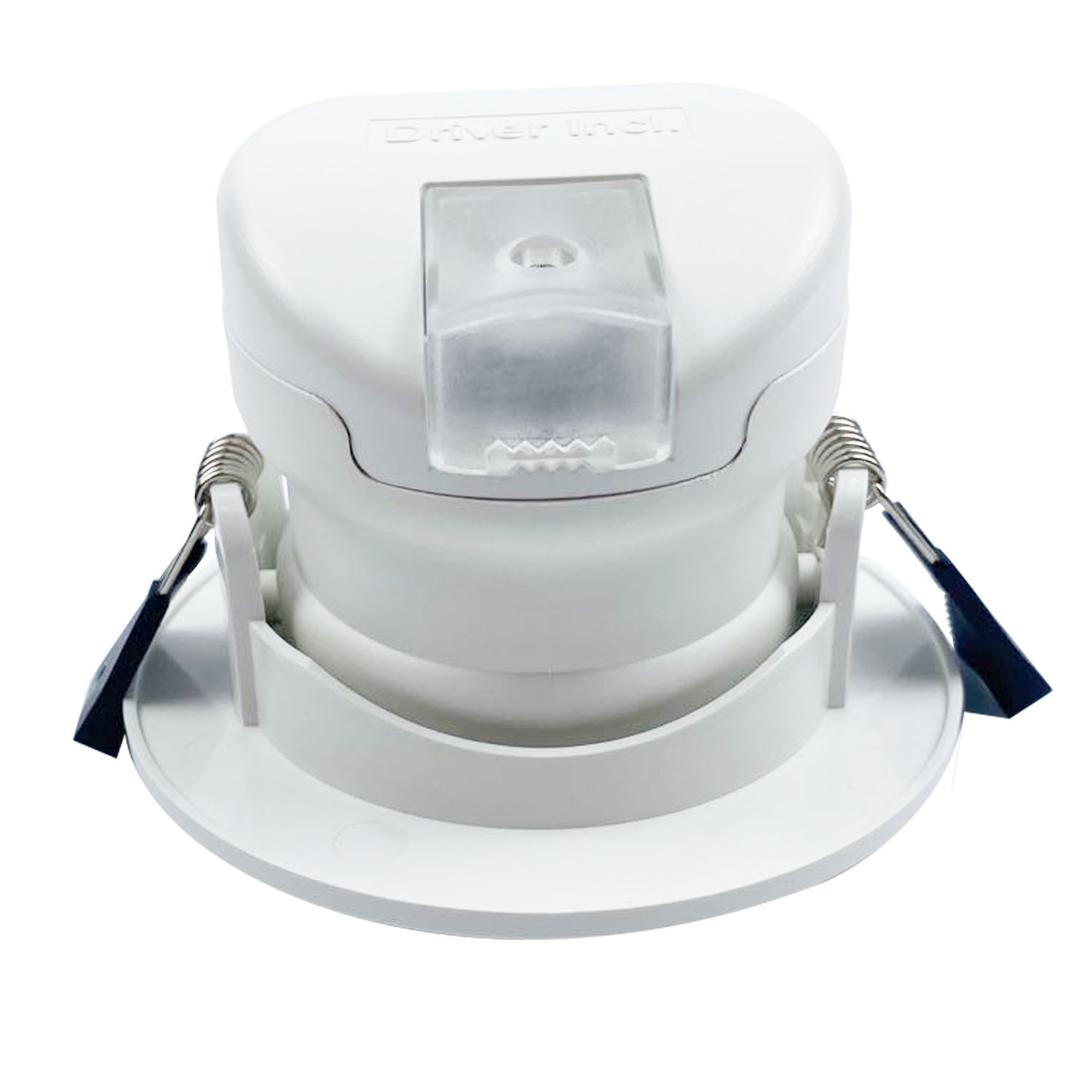

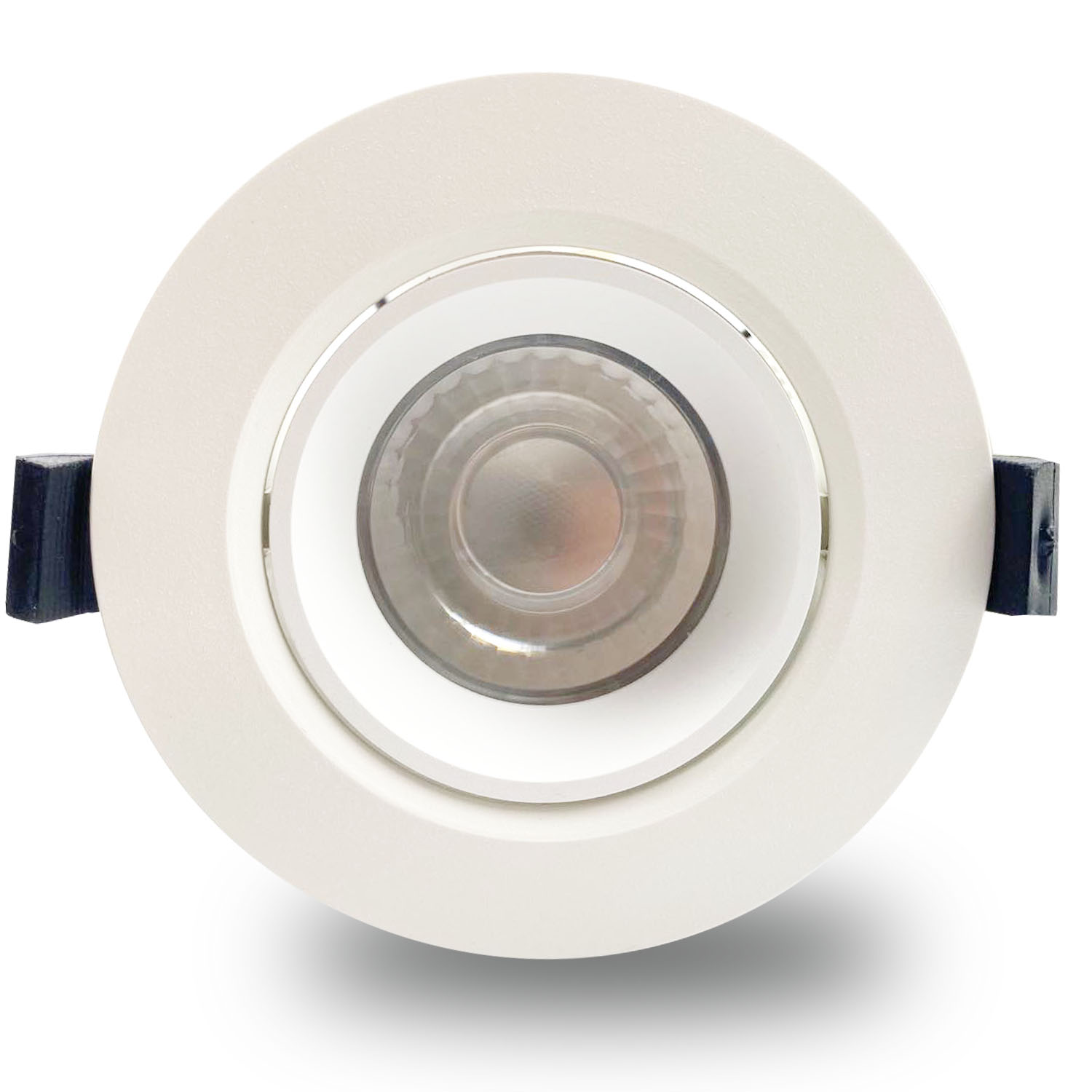

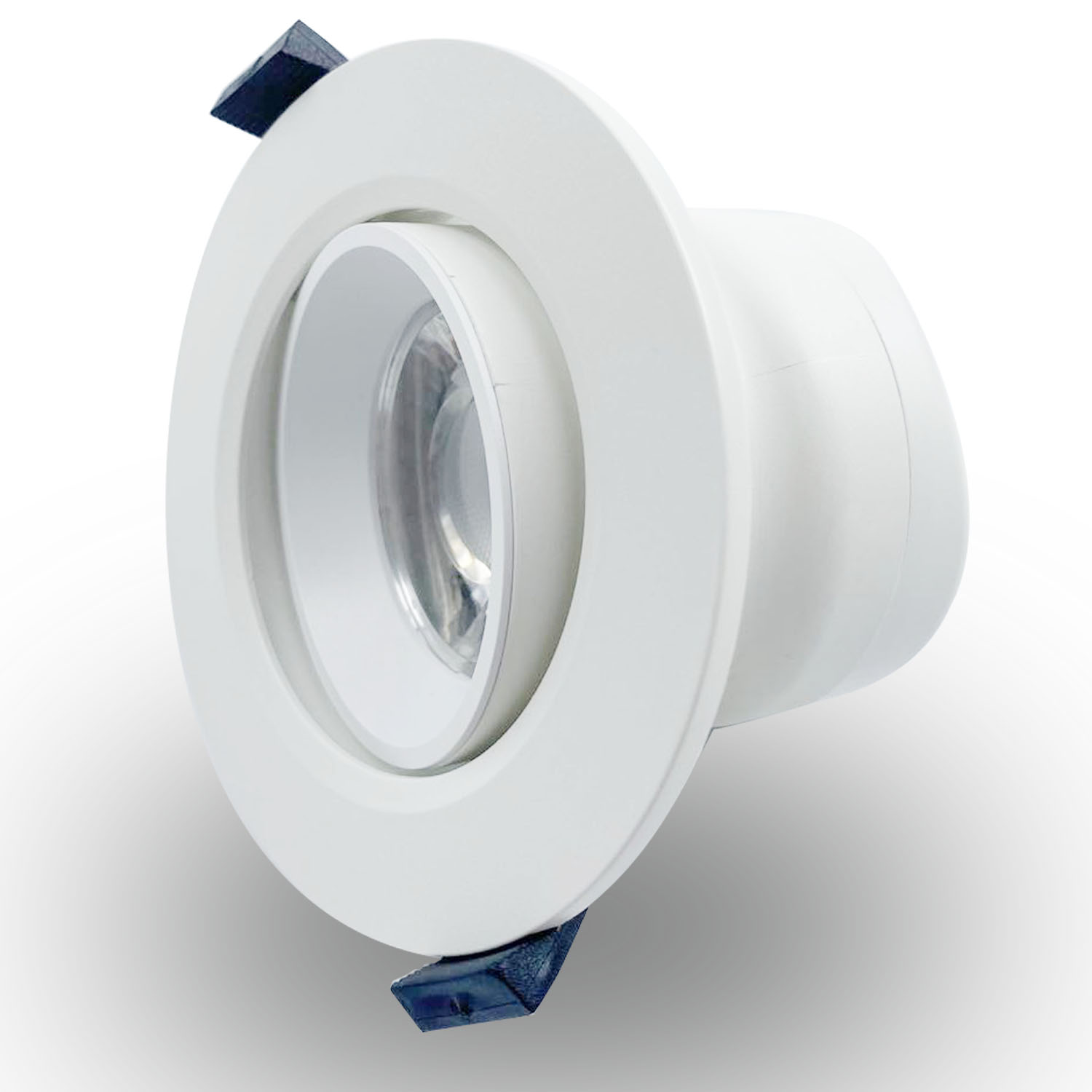

Gimbal LED Downligt
Production Lead Time:
20 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL02
Brand:
SIMONS
Power:
5W, 6W, 10W, 12W
Input Voltage:
220-240V
Lumen Efficiency:
70-90lm/w
PF:
>0.9
Beam Angle:
40˚
Material:
Aluminum Coated Plastic
Cover:
lens
Working Temperature:
-20~50℃
CRI:
Ra 80, 90
IP Rating:
IP20
CCT:
Single Color (3000K-5000K), 3 CCT
LED Chip:
SMD 2835
Light Body Colour:
White, Black
Installation:
Recessed
Working Frequency:
50/60HZ
Lifetime:
44000Hrs
Application:
Office, Shop, Family etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Features:
1. 40° beam angle
2. Thermal conductive plastic coated aluminum housing, V-0 flame rating.
3. 220-240V built-in driver, integrated design.
4. Non dimmable/ Triac dimmable available.
5. 3000K, 4000K, 5000K, 3-CCT for option.
6. Warranty: 3 years.
7. L70 to 44000hrs.
8. Excellent dimming performance, can suitable for most of brand dimmers including leading-edge dimmer.
9. Plastic cover aluminum housing, built-in driver, clean and beautiful appearance
10. Powerful spring buckle, to ensure stable installation. Easy to install and highlight
11. Adjustable direction, SMD chip.
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL02-02--5 | 5W | 70mm | 85mm | 55mm |
SM-DL02-02-5 | 5W | 70mm | 85mm | 55mm |
SM-DL02-03-6 | 5W | 90mm | 105mm | 65mm |
SM-DL02-03-10 | 10W | 90mm | 105mm | 65mm |
SM-DL02-03-12 | 12W | 90mm | 105mm | 65mm |
