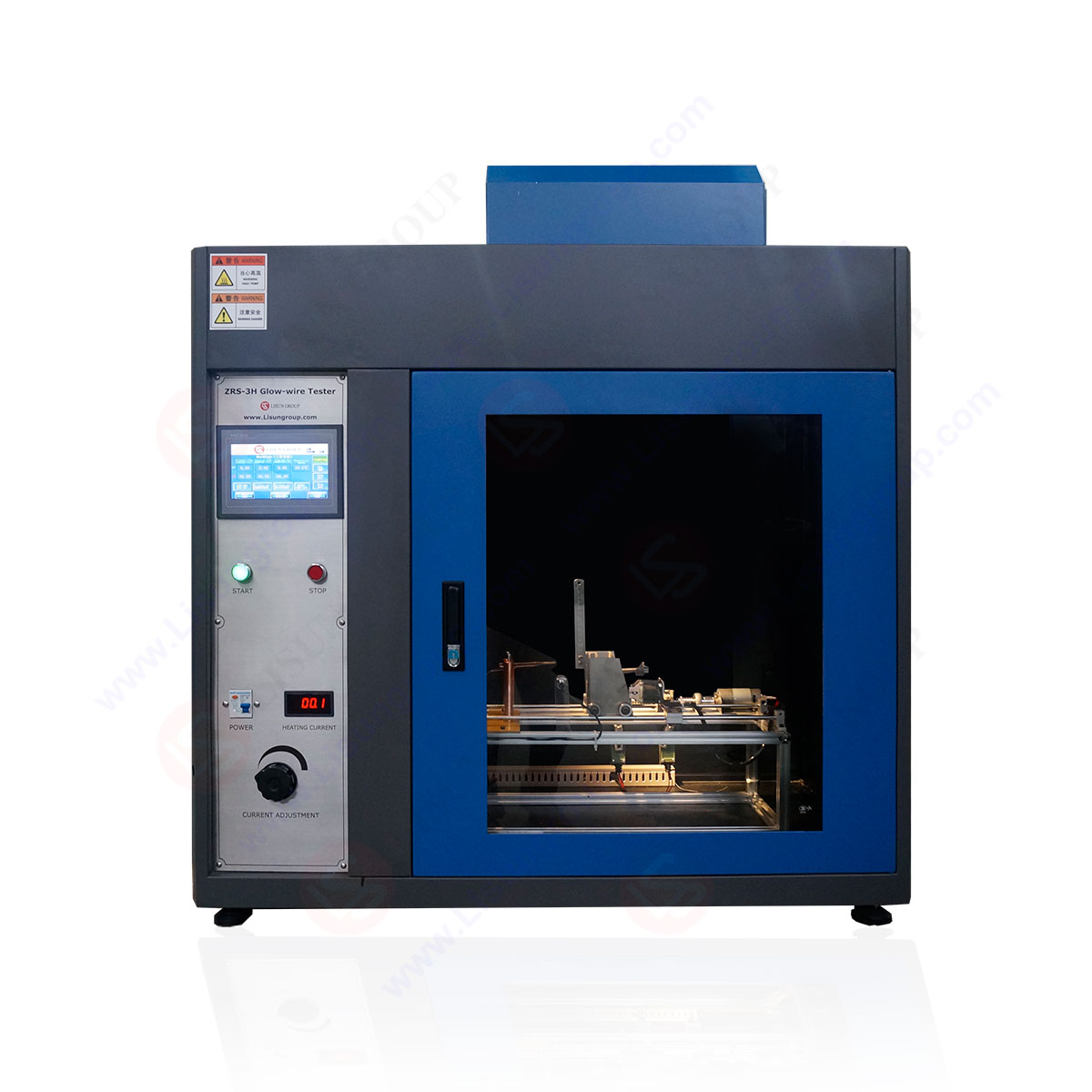

The ZRS-3H Glow-wire Test Apparatus is used to test the flammability of plastic sheets or other insulating materials. The specimen is exposed to a high temperature glow wire (nickel/chrome wire) through a standard test procedure. It is used to identify whether the insulating material does not reach a certain temperature or ignite to prevent fire hazards around it.

What is glow wire test?
The Glow wire tester ZRS-3H/ZRS-3HS is mainly used to test the ignition performance, ignition temperature, flammability and flammability index of lighting equipment, electronic products and household appliances. The equipment adopts high-temperature sprayed steel structure and imported instrument display, which is easy to operate and has stable test performance. This equipment is mainly used for flame retardancy testing by QC departments and related enterprises.

Standard:
IEC 60695-2-1:2021(VDE0471:2019) “Fire hazard testing – Part 2: Test methods – Section 1/sheet 1: Glow-wire end-product test and guidance”
IEC 60695-2-11:2021(GB/T5169.10-2006)”Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods – Glow-wire flammability test method for end products (GWEPT)”
IEC60695-2-10:2000 “Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure”
IEC 60695-2-12:2021 “Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials”
IEC 60695-2-13:2000 “Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignition temperature (GWIT) test method for materials”
IEC 60335:2023 “Household and similar electrical appliances – Safety – Part 1: General requirements”
UL 746A:2021 “Standard for Polymeric Materials – Short Term Property Evaluations”
IEC 829

Specification:
• Heating temperature: adjustable continuously within the range of 25~1100°C, the accuracy of temperature is 3°C, the resolution of temperature is ±1°C
• Glow-wire time: 0.1-999.9s，±0.1s(time range is adjustable)
• Ignition time: 0.1-999.9s (auto record, manual pause)
• Flame-out time: 0.1-999.9s (auto record, manual pause)
• Glow wire pressure on test specimen: 0.95±0.1N. Limiting pressure depth is 7mm.
• Glow wire: φ4 nickel (80％) and chromium (20％). Made in specific dimensions.
• Thermocouple: φ1 armored nickel-chromium/nickel-aluminum wire, K Type.
• Automatic departure: While reaching specified glowing time, test specimen will depart from glow wire automatically.
