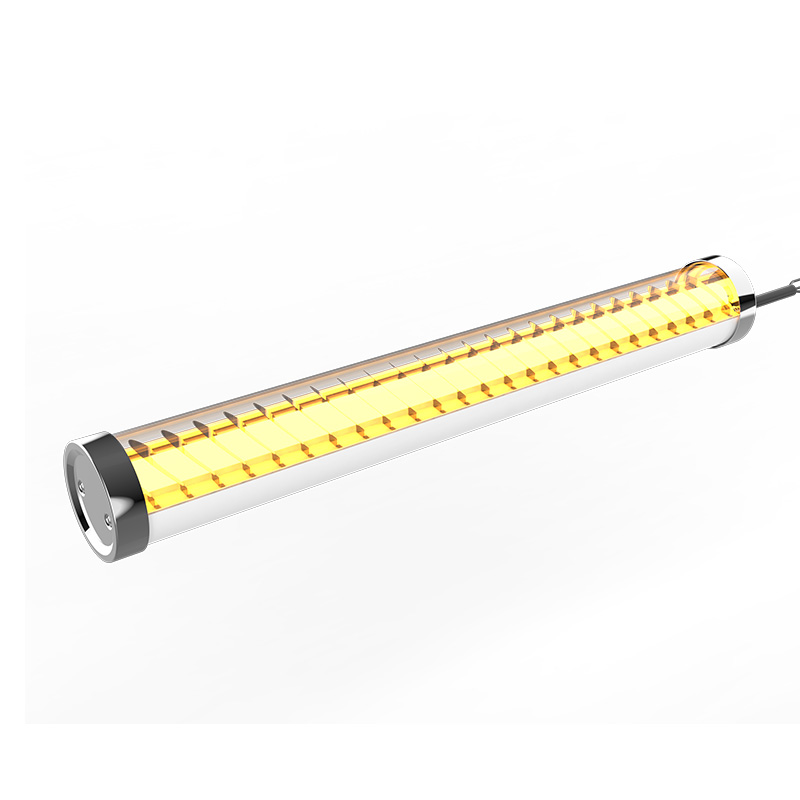

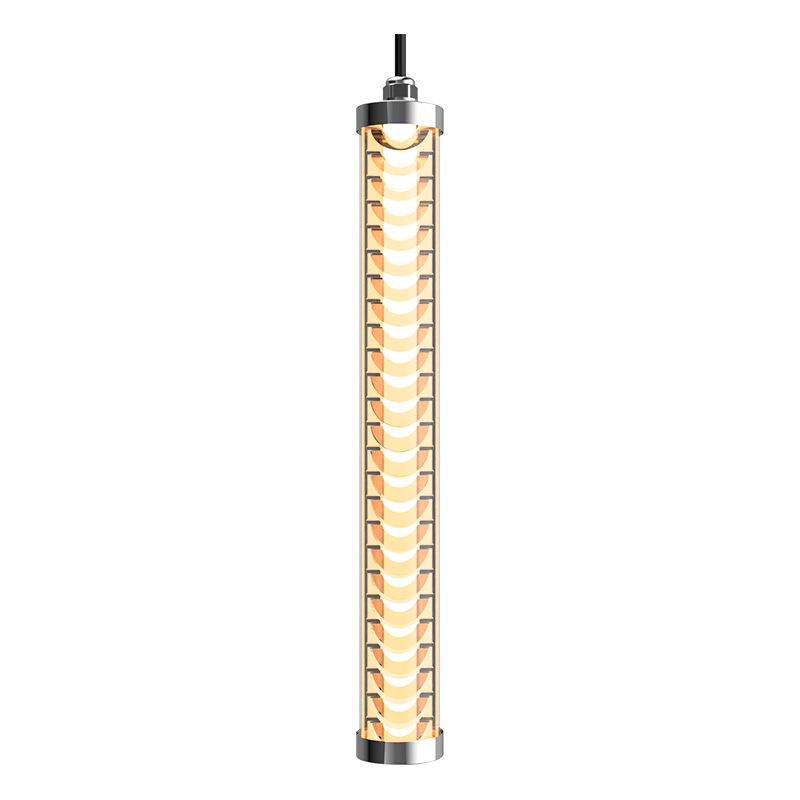

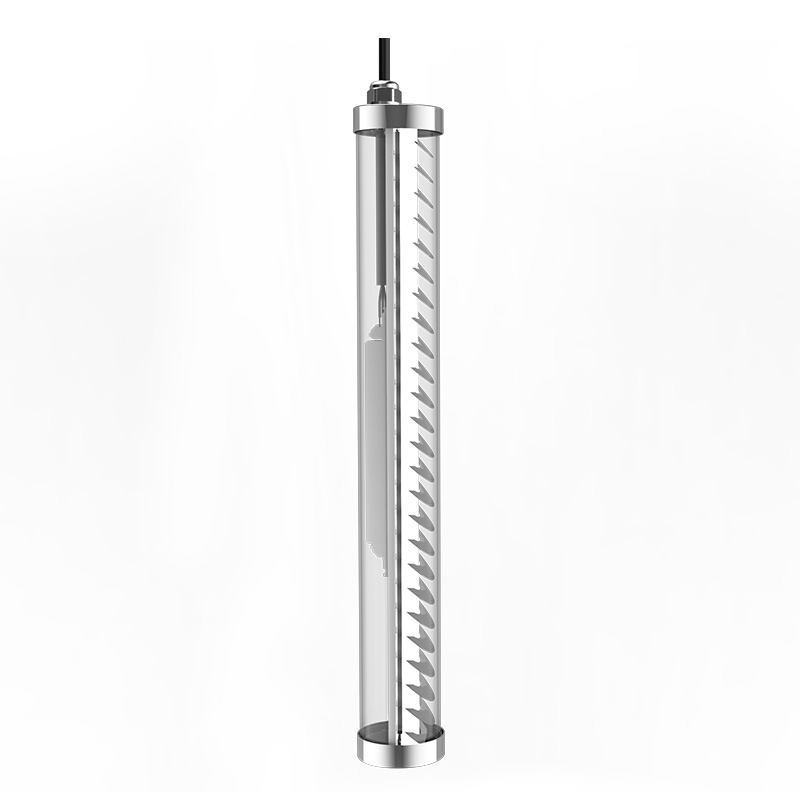

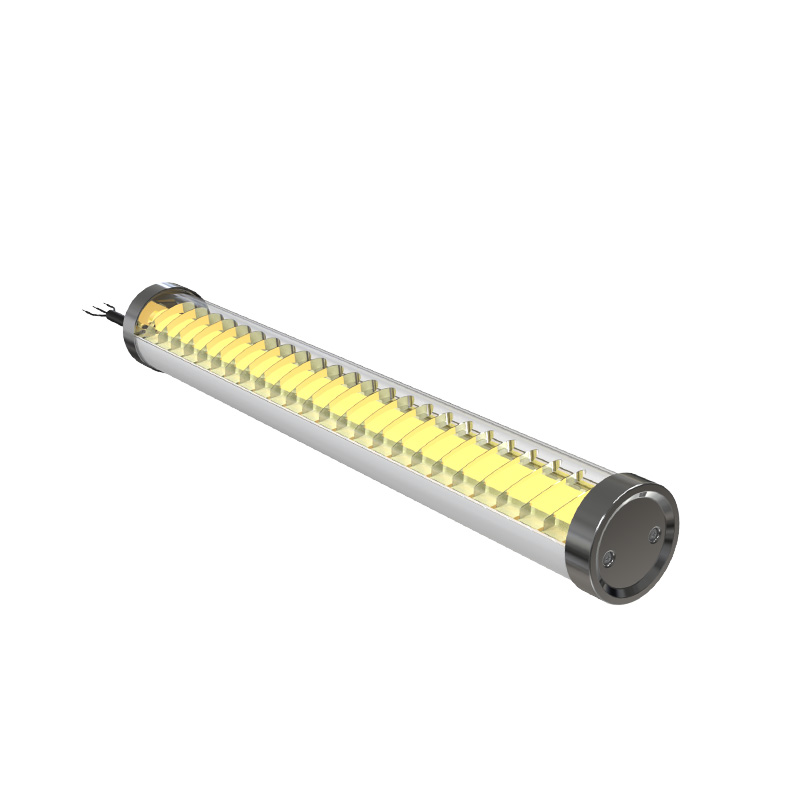

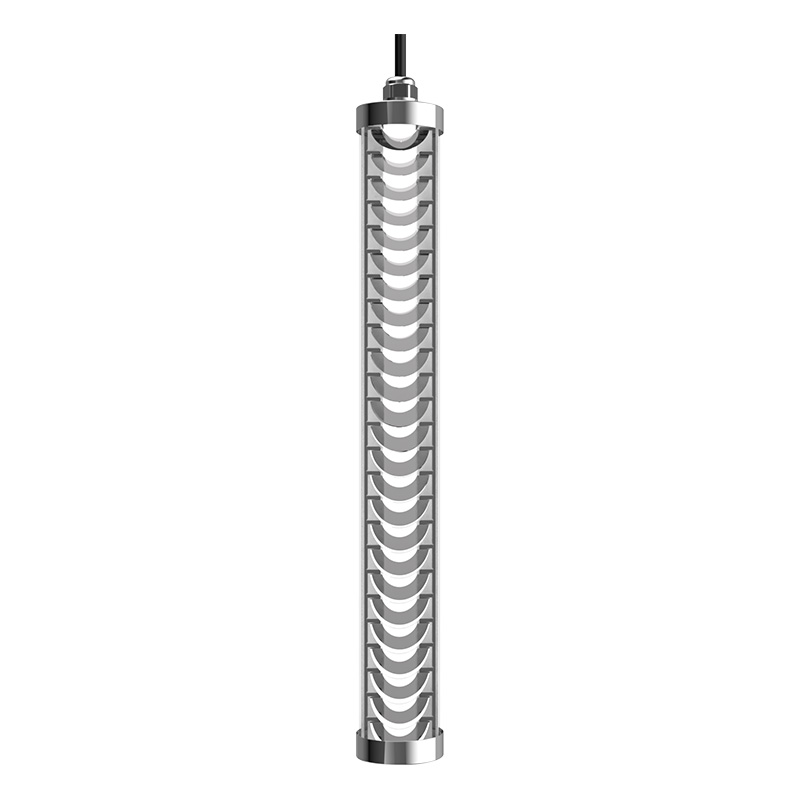

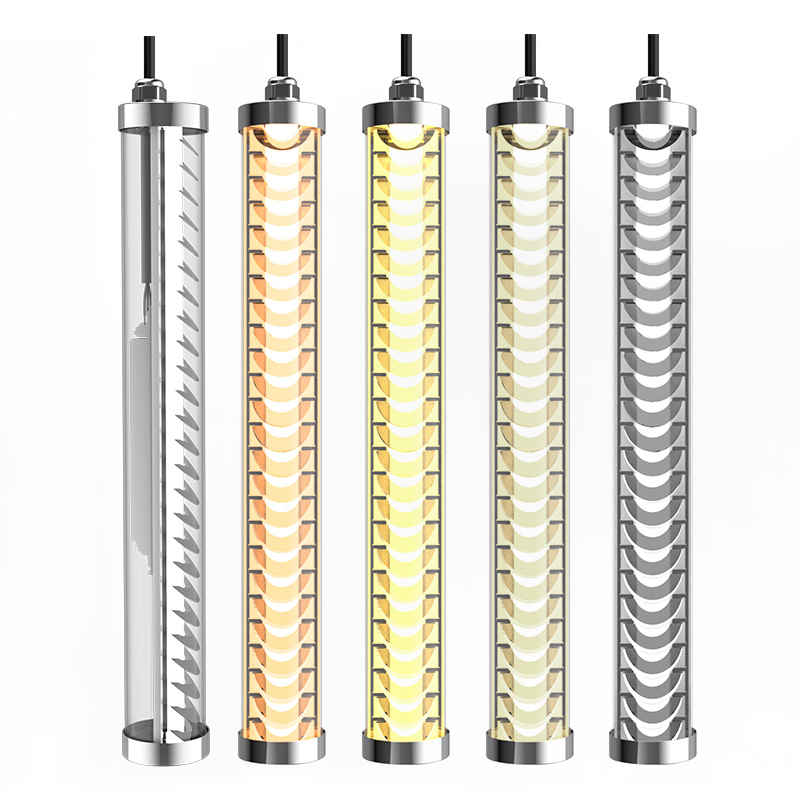

    Grid Type LED Tubular Wall Light
    Share this page
    US $18.99 - US $170.04
    US $19.99 - US $178.99
    Production Lead Time:
    20-25 day(s)
    Shipping Method:
    EXW
    Brand:
    TUBU
    Feature:
    Environmentally friendly, no mercury, No UV, No IR.
    Customised:
    Yes
    IP Class:
    IP67 & IP69K
    Is Dimmable:
    Yes
    CCT:
    3000K/4000K/5000K/6000K
    Description
    Contact Supplier
    Description

    With a system efficiency of up to 60 lm/W and a wide beam angle of 80°, TUBU's Grid Type LED Tubular Wall Light provides powerful lighting while minimizing energy consumption. And resistant to ammonia and various chemicals, ensuring durability and longevity. Suitable for corridors, shared kitchens, hotel room headboards, rooftop restaurants, exterior walls of residential buildings, mirrors in suites, and more

    Architectural art lighting design adds a touch of style to your space, the mesh grille diffuses light, blocks direct light from light sources, and reduces glare for softer, diffused lighting that enhances the overall ambiance of any space. Meanwhile, we offer a variety of CCT options, including 3000K, 4000K, 5000K, and 6000K.

    Features:
    • IP67 & IP69K
    • PMMA IK08/PC IK10
    • Against water pressure of 100bar(1450psi) and temperature of 80℃
    • System efficiency up to 60lm/W
    • High CRI> 80
    • Environmentally friendly, no mercury, No UV, No IR
    • Wide beam angle of 80X120°
    • Energy Efficiency Grade: A+
    • Quick Start instant 100% luminous flux
    • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing)
    • Certificate: CE, RoHS Certified
    • Surface Mount or Suspended
    Tech Specs:

    Product CodeTBL92F-20W-GTBL94F-40W-GTBL95F-50W-GTBL95F-60W-G
    Power20W40W50W60W
    Input Voltage200-240VAC/100-277VAC (50/60HZ)
    Input Current0.09A@220VAC0.19A@220VAC0.23A@220VAC0.28A@220VAC
    Power Factor0.90@220VAC
    Dimming Option0-10V/Dali
    Color Temperature3000K/4000K/5000K/6000K
    CRI>80Luminous Flux1200Lm±5%2400Lm±5%3000Lm±5%3600Lm±5%
    Efficiency60Lm/W±5%
    LED BrandLumileds/Hongli
    Beam Angle80x120°
    Operation Temperature-20℃~+40℃
    Storage Temperature-20℃~+60℃
    Life SpanTa 40℃ L70>54000Hours
    IP ClassIP67 & IP69K
    IK ClassPMMA IK08 & PC IK10
    CertificateCE, RoHs, CB, IK10, IP69K, ENEC
    Lamp Body MaterialMilky PC/PMMA Housing & 304/316 Stainless Steel End Caps
    Product Size ( mm )75*55275*115275*145275*1452
    Packing Size ( mm )730*260*2601330*260*1801630*260*1801630*260*180
    Quantity / Carton9pcs6pcs6pcs6pcs
    Gross Weight ( kg ) ± 0.312152323
    InstallationSurface Mount & Suspension Mount
