HC-49S DIP MHz Crystal 3.2MHz-64MHz Xtal

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

9AC

Size:

11.5x4.8x3.8mm

Nominal Frequency:

3.2-64MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

Email:

alan@jghcrystal.com

Description

Contact Supplier

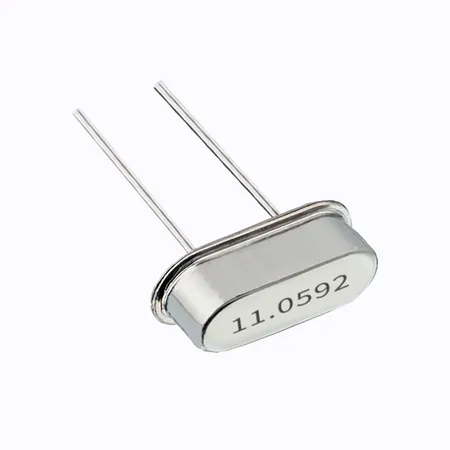

Metal Can Type DIP Crystal HC-49S 9AC Series

Features

Resistance welded type crystal units.

A great number of standard frequencies.

Higher frequency pullibility and lower equivalent series resistance.

Lower cost and highly mass production capability.

The best choice of TV, STB, LCDM and Cable Modem.

ROHS Compliant / Pb Free.

Crystals specifications:

ITEMS/TYPE	9AC
Frequency Range	3.2~64 MHz
Frequency Tolerance (at 25 ℃)	± 10 ppm, ± 20 ppm, or specify
Operating Temperature Range	~40~+85℃, or specify
Shunt Capacitance (C0)	7pF Max.
Drive Level	1~ 500μW (50 μW typical)
Load Capacitance	20pF, or specify
Aging (at 25℃ )	± 5 ppm / year Max.
Storage Temperature Range	-40~+125℃
