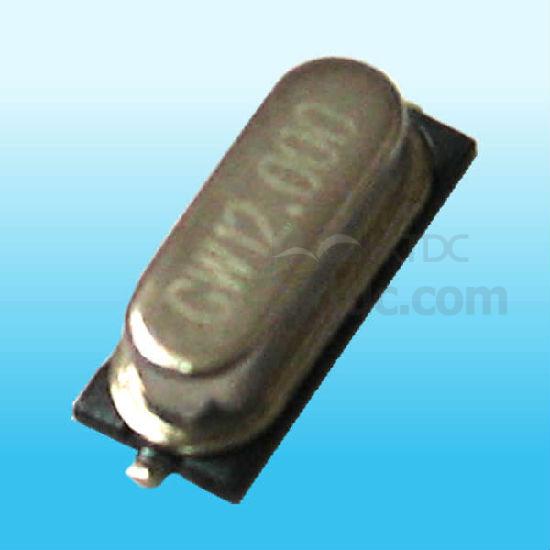

HC49/SM Surface Mount Crystal

Production Lead Time:

7 day(s)

Model No.:

GW12.000

Brand:

Type of Payment:

C.O.D.

Description

Contact Supplier

ISO 9001:2000; ISO 14001:2004 certified.
RoHS complaint SGS certified.
Freq. Range 3MHz to 80MHz.
Stability +/-3ppm to 100ppm.
Competitive pricing.

Product specifications:

This quartz crystal has the frequency range of 3.200MHz to 60.000MHz.
The mode is fundamental or AT.
The frequency tolerance (at 25°C) is +/-50ppm, +/-30ppm or specify and the temperature stability (REF to 25°C) is +/-50ppm, +/-30ppm or specify.
Operating temperature range (Torp) is -10°C to 70°C.
Storage temperature range (Tstg) is -40°C to 85°C.
Shunt capacitance (C0) is 7 PF max.
Load capacitance (Cl) is 10 to 3 PF Series Resonance or Specify.
Insulation resistance is 500 mega ohm minimum at 100V.
Drive level is 1 watt max.
Aging (at 25°C) is +/-5ppm/year max.
