    HDPE Waterproofing Membrane
    Share this page
    US $2.00 - US $2.50
    Production Lead Time:
    25 day(s)
    Shipping Method:
    By sea or by road
    Brand:
    Weidun
    Feature:
    Easy to apply
    Material:
    HDPE
    Application:
    Self-adhesive
    Model No.:
    WD006
    Size:
    20 square meter / Roll
    Customised:
    Yes
    Weight:
    1.8 kg / square meter
    Surface Treatment:
    Full Body Tiles
    Maxload on 20GP Container:
    10000 square meters
    Description
    Certification & Document
    Contact Supplier
    Description

    Product Description:

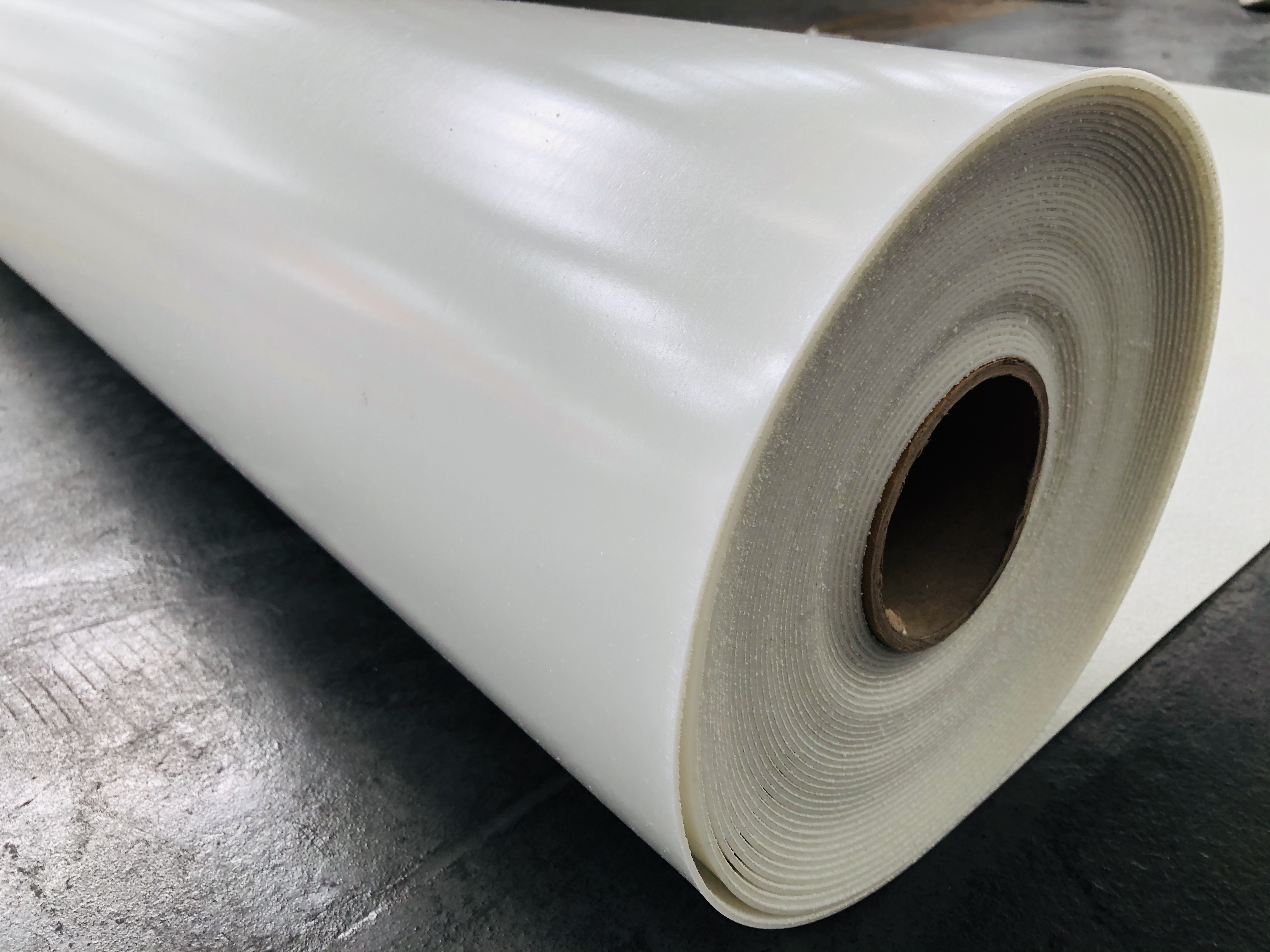

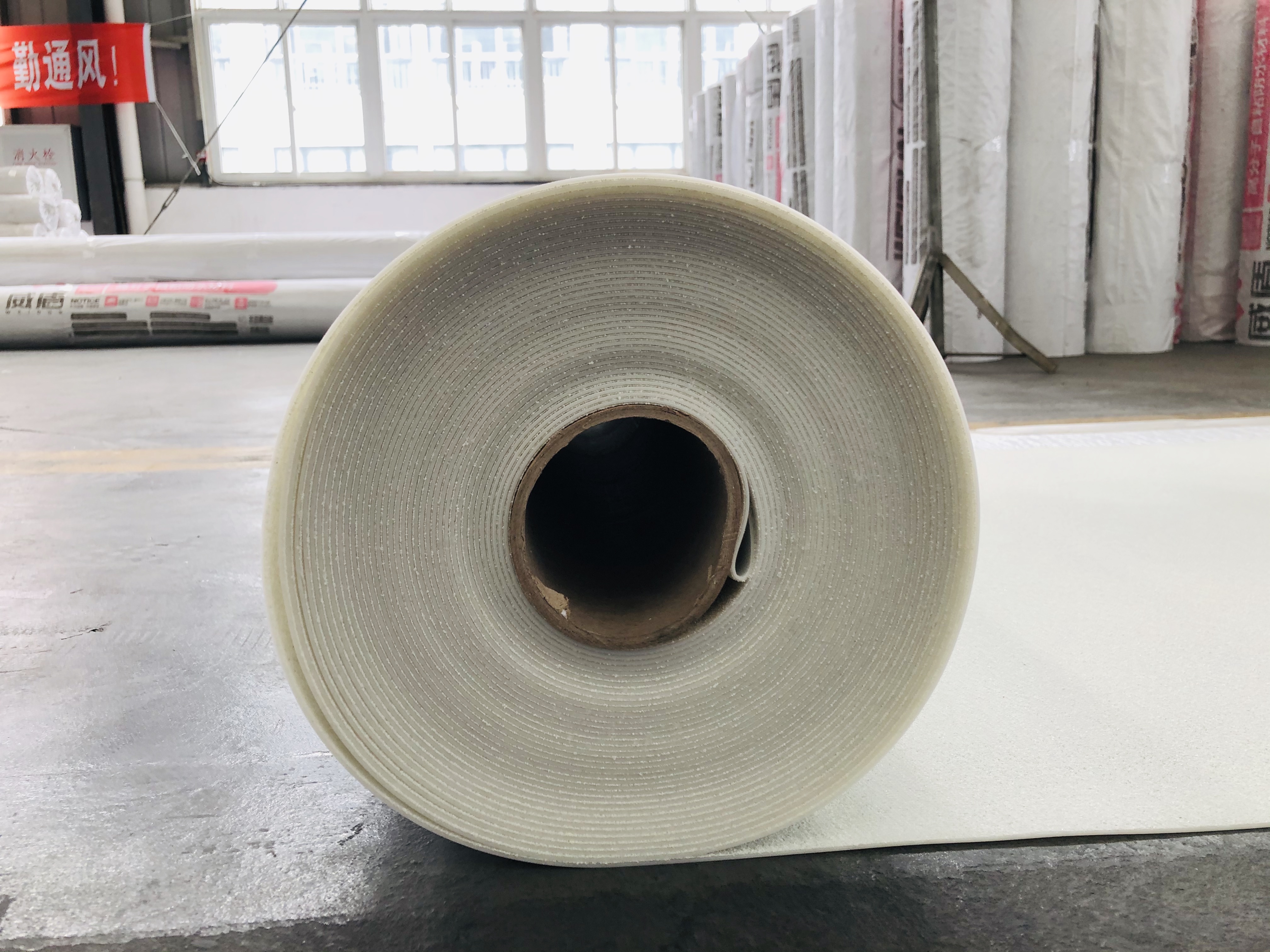

    Weidun 006 HDPE Waterproofing Membrane is closely integrated with a concrete substrate, providing the best waterproofing performance. HDPE membrane is widely used in underground and basement waterproofing projects.

    Uses:

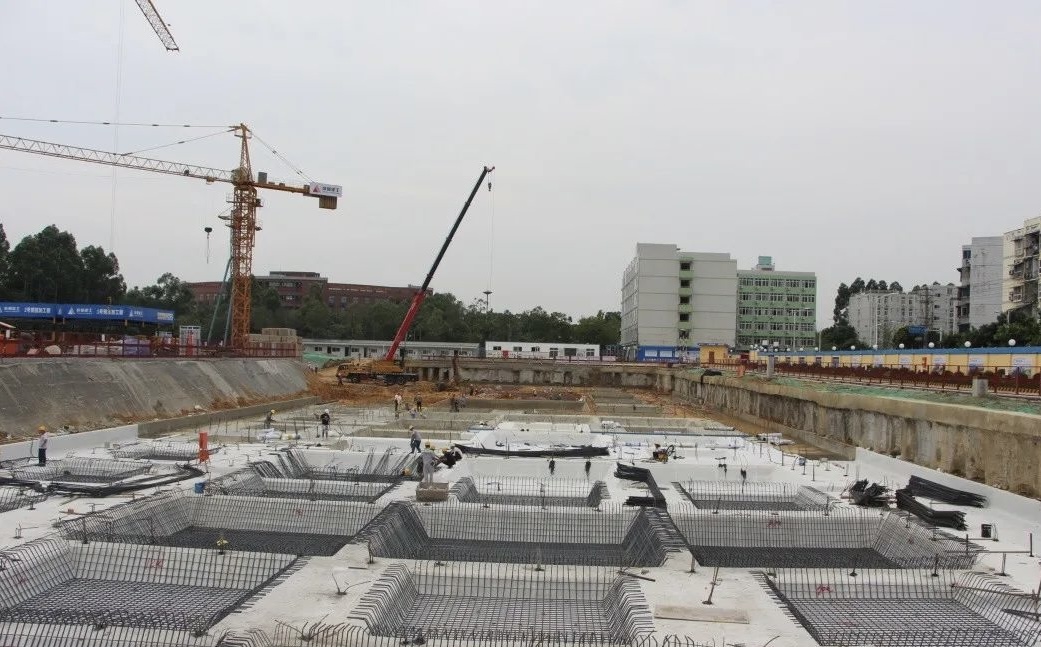

    Weidun 006 HDPE Waterproofing Membrane is designed for areas that require waterproofing, such as basements, undergrounds, terraces, and green roofs.

    Advantages:

    • The membrane fully bonds with concrete
    • Maintain high peel strength in soaking
    •  Length and width can be customized
    • No open flame required


    Product Application:

    Self-adhesive on the substrate and use hot-weld equipment to seam the overlap.


    Storage and Handling:

    To prevent damage, support rolls on end in an upright position and store in a clean, dry location. Cover as necessary to protect from environmental damage. Monitor environmental conditions during storage, handling, and application.


    Product Specifications:

    Roll Size* :  20.0 m2

    Roll Length: 20.0m

    Roll Width:  1.0m

    Roll Thickness  1.2mm; 1.5mm

    Top side Surfacing  PE Film or Sand

    Bottom Side Surfacing:  PE Film or Self-adhesive Glue


    Technical Data Sheet

    Property

    Standard Minimum Value

    Weidun Value

    Roll Length min(m)

    10

    10.01

    Tensile Strength at 23°c (N/50mm)

    300

    357

    Elongation at 23°C +/-2°C, (%)

    300

    400

    Adhesive strength at 23°C (N/50mm)

    1.5

    1.5

    Low temperature flexibility, at-20°C

    No crack

    No crack

    Peel strength between membrane and overlap (N/mm)

    1.0

    1.0

    Puncture resistance (N)

    350

    398

    Oil permeability/number of sheets

    0

    0

    Heat resistance, at 80°C, 2 hours

    No drop

    No drop

    Water penetration (Maintain a water pressure of 0.3MPa for 120 minutes)

    Non- penetration

    Non-penetration
