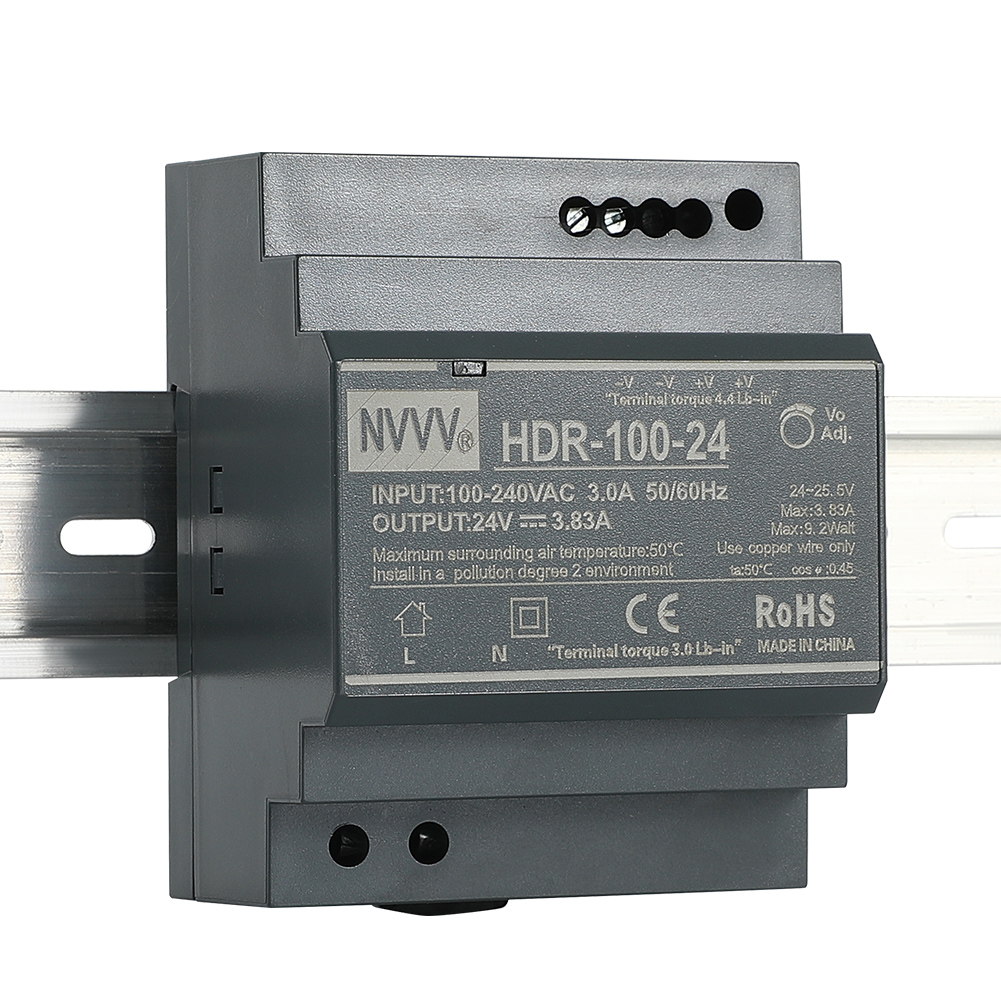

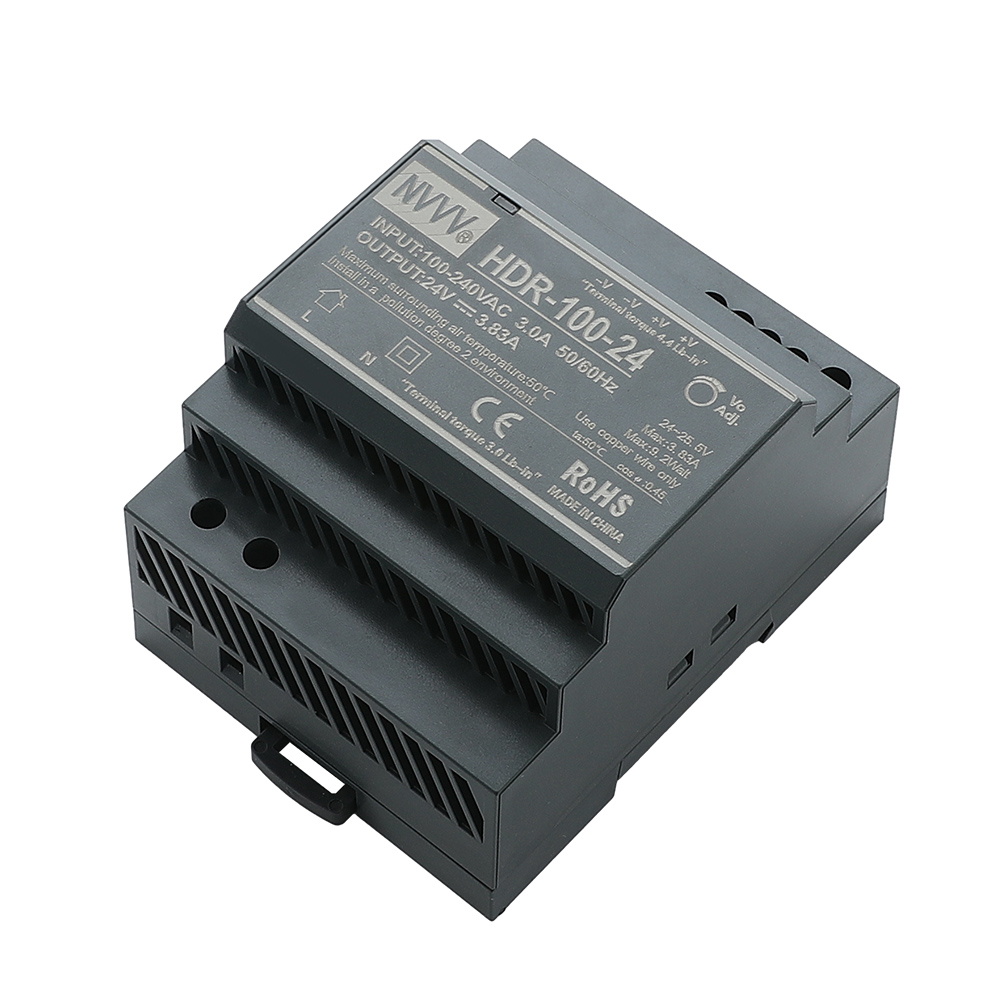

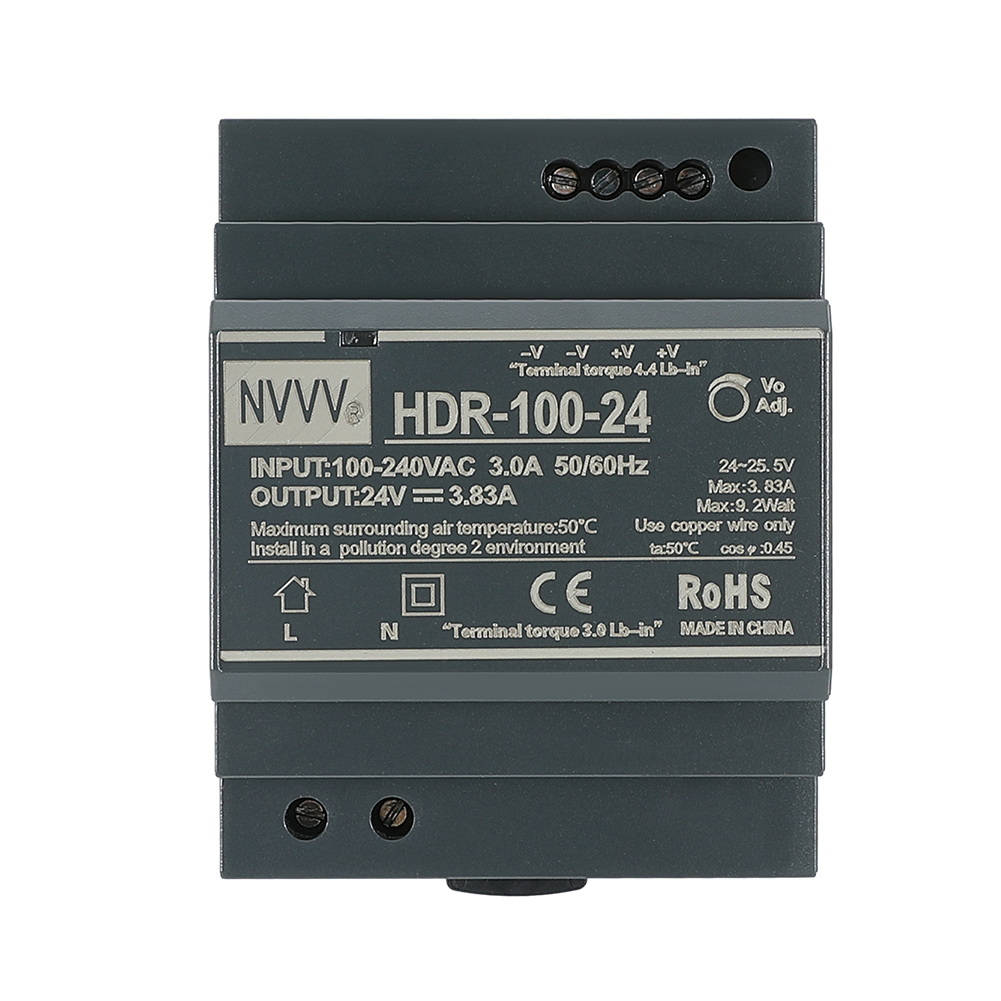

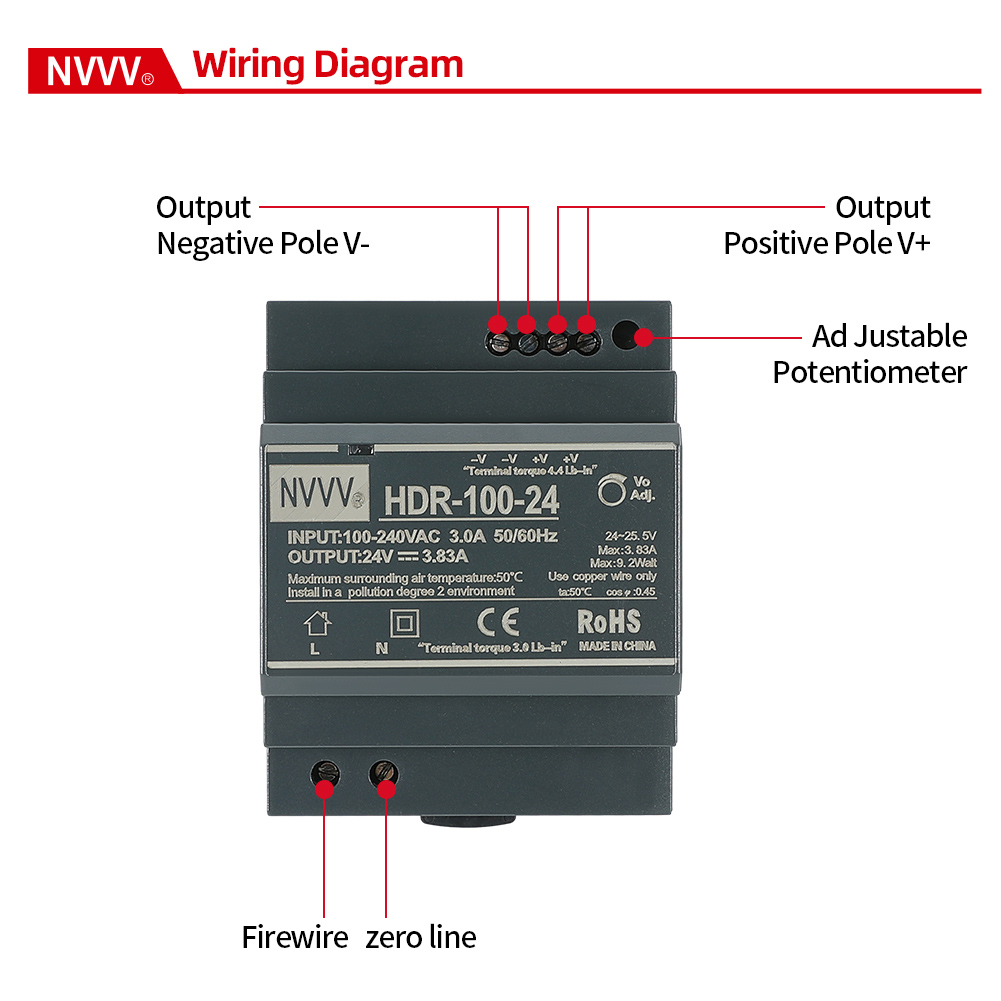

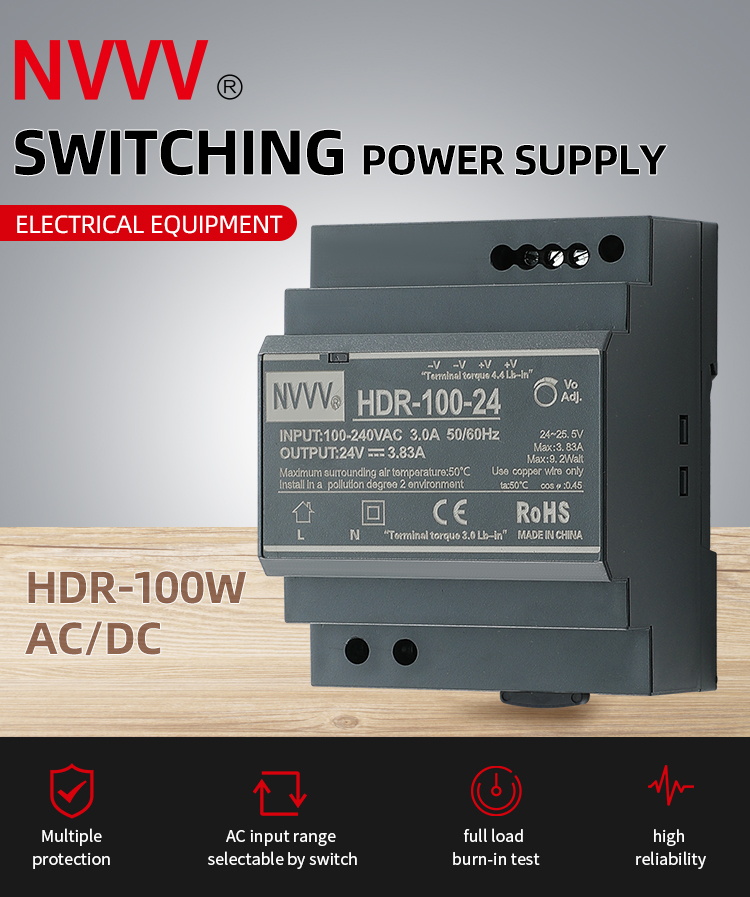

HDR-100-24 Ultra Slim Step-Shape 4SU DIN Rail Power Supply, 24Volt 3.83Amp 92Watt 85 to 264 VAC Input 24 V Output
Production Lead Time:
1 day(s)
Shipping Method:
Express Delivery
Application:
AC to DC
Brand:
NVVV
Model No.:
HDR-100-24
Size:

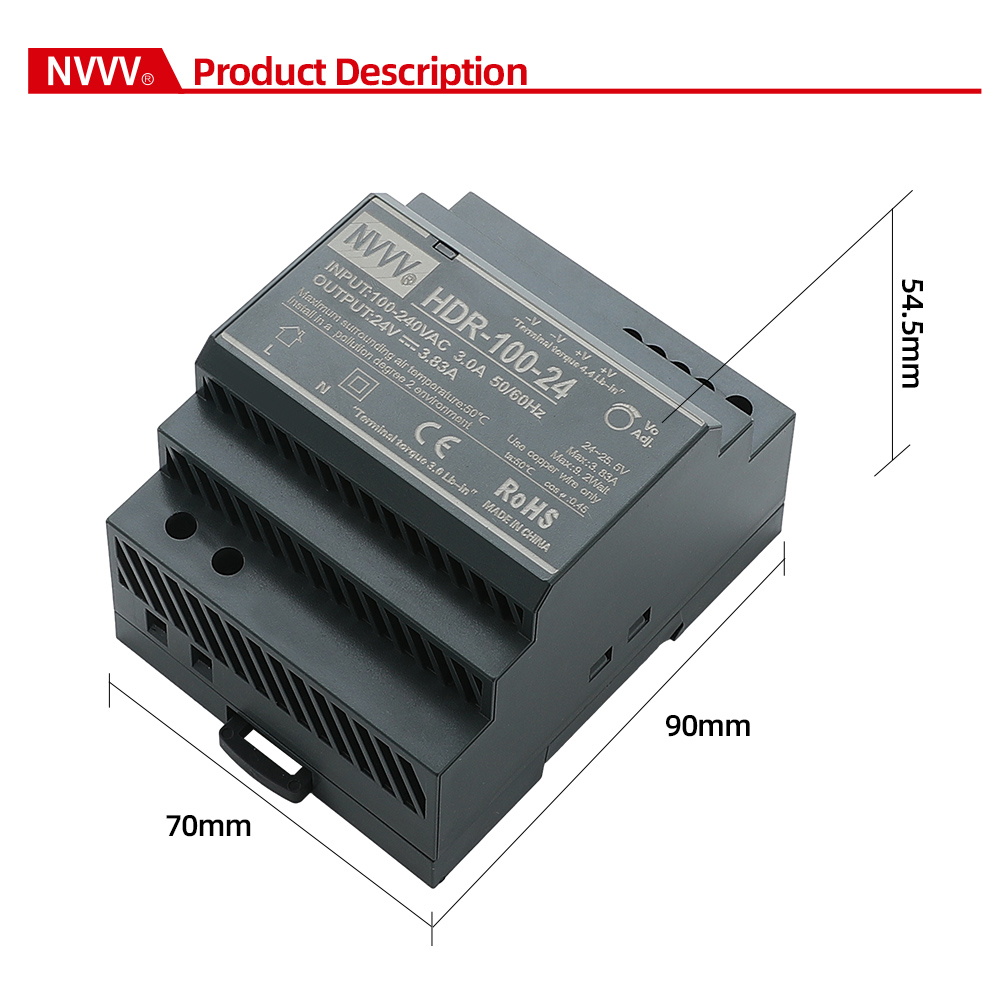

70*90*54.5
Weight:
0.3kg
Description
Contact Supplier
Description
| 85 ~ 100W Ultra Slim Step Shape DlN Rail HDR - 100 series | ||||||||
| SPEClFlCATlON | ||||||||
| MODEL | HDR-100-12 | HDR-100-15 | HDR-100-24 | HDR-100-48 | ||||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |||
| RATED CURRENT | 7.1A | 6.13A | 3.83A | 1.92A | ||||
| CURRENT RANGE | 0 ~ 7.1A | 0 ~ 6.13A | 0 ~ 3.83A | 0 ~1.92A | ||||
| RATED POWER | 85.2W | 92W | 92W | 92.2W | ||||
| RlPPLE & NOlSE（max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||||
| VOLTAGE ADJ.RANGE | 12 ~ 13V | 15 ~ 17V | 24 ~ 25.5V | 48 ~ 48.7V | ||||
| VOLTAGE TOLERANCE Note.3 | 士2.0% | 士1.0% | 士1.0% | 士1.0% | ||||
| LlNE REGULATlON | 士1.0% | 士1.0% | 士1.0% | 士1.0% | ||||
| LOAD REGULATlON | 士1.0% | 士1.0% | 士1.0% | 士1.0% | ||||
| SETUP，RlSETlME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||||
| HOLD UP TlME（TYP.) | 30ms/230VAC 12ms/115VAC at full load | |||||||
| lNPUT | VOLTAGE RANGE | 85 ~ 264VAC（277VAC operational ） 120 ~ 370VDC（390VDC operational ） | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFlClENCY（TYP.) | 88% | 89% | 90% | 90% | ||||
| AC CURRENT（TYP.) | 3A/115VAC 1.6A/230VAC | |||||||
| lNRUSH CURRENT（TYP.) | COLD START 35A/115VAC 70A/230VAC | |||||||
| PROTECTlON | OVERLOAD | HDR-100 : 102 ~ 110% rated output power ; HDR-100-XXN : 105 ~ 150% rated output power | ||||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||||
| Protection type : Shutdown o/p voltage, re-power on to recover | ||||||||
| ENVlRONMENT | WORklNG TEMP. | -30 ~ +70℃（Refer to "Derating Curve"） | ||||||
| WORklNG HUMlDlTY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP.，HUMlDlTY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFlClENT | 士0.03%/℃（0 ~ 50℃）RH non-condensing | |||||||
| VlBRATlON | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z aXes; Mounting: Compliance to lEC60068-2-6 | |||||||
| OPERATlNG ALTlTUDE | 2000 meters | |||||||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |||||||
| SAFETY | WlTHSTAND VOLTAGE | l/P-O/P:4kVAC | ||||||
| lSOLATlON RESlSTANCE | l/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| OTHERS | MTBF | 3271.9k hrs min. Telcordia SR-332（Bellcore）; 856.5k hrs min. MlL-HDBk-217F（25℃） | ||||||
| DlMENSlON | 70*90*54.5mm（W*H*D） | |||||||
| PACklNG | 0.27kg; 48pcs/13.74kg/0.96CUFT | |||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Harmonic current test at 90% load for HDR-100-XXN. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft）. | |||||||
