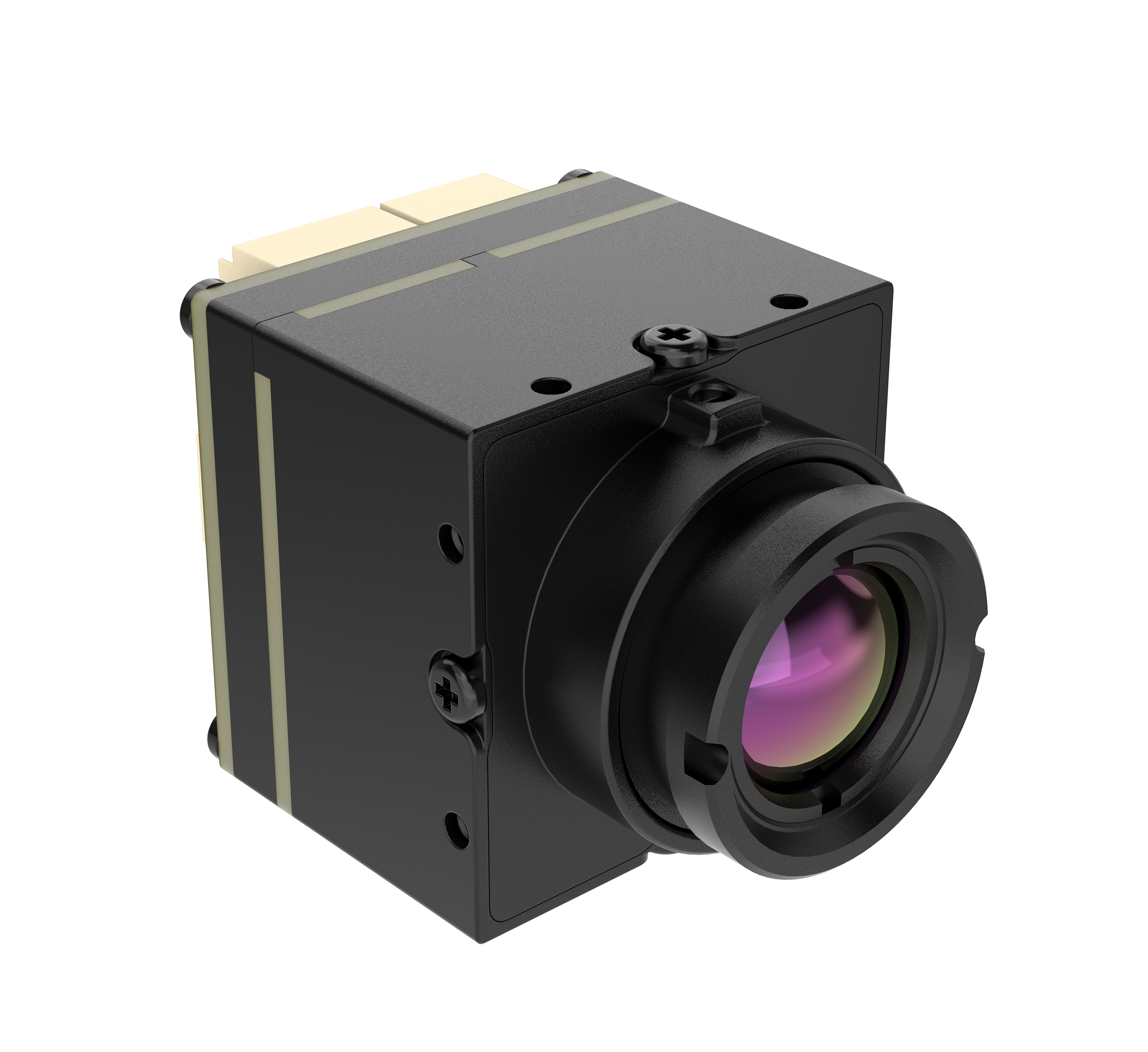

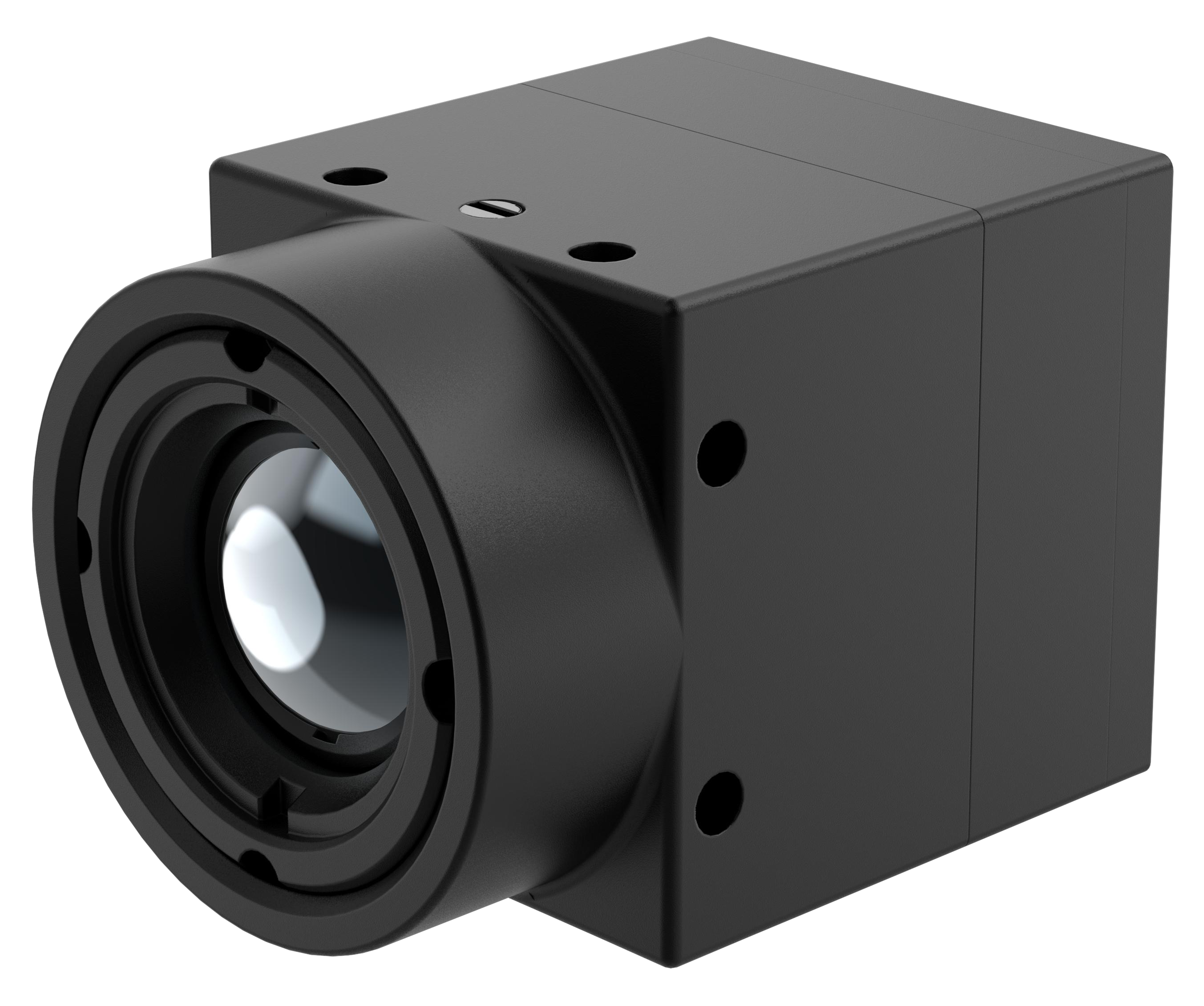

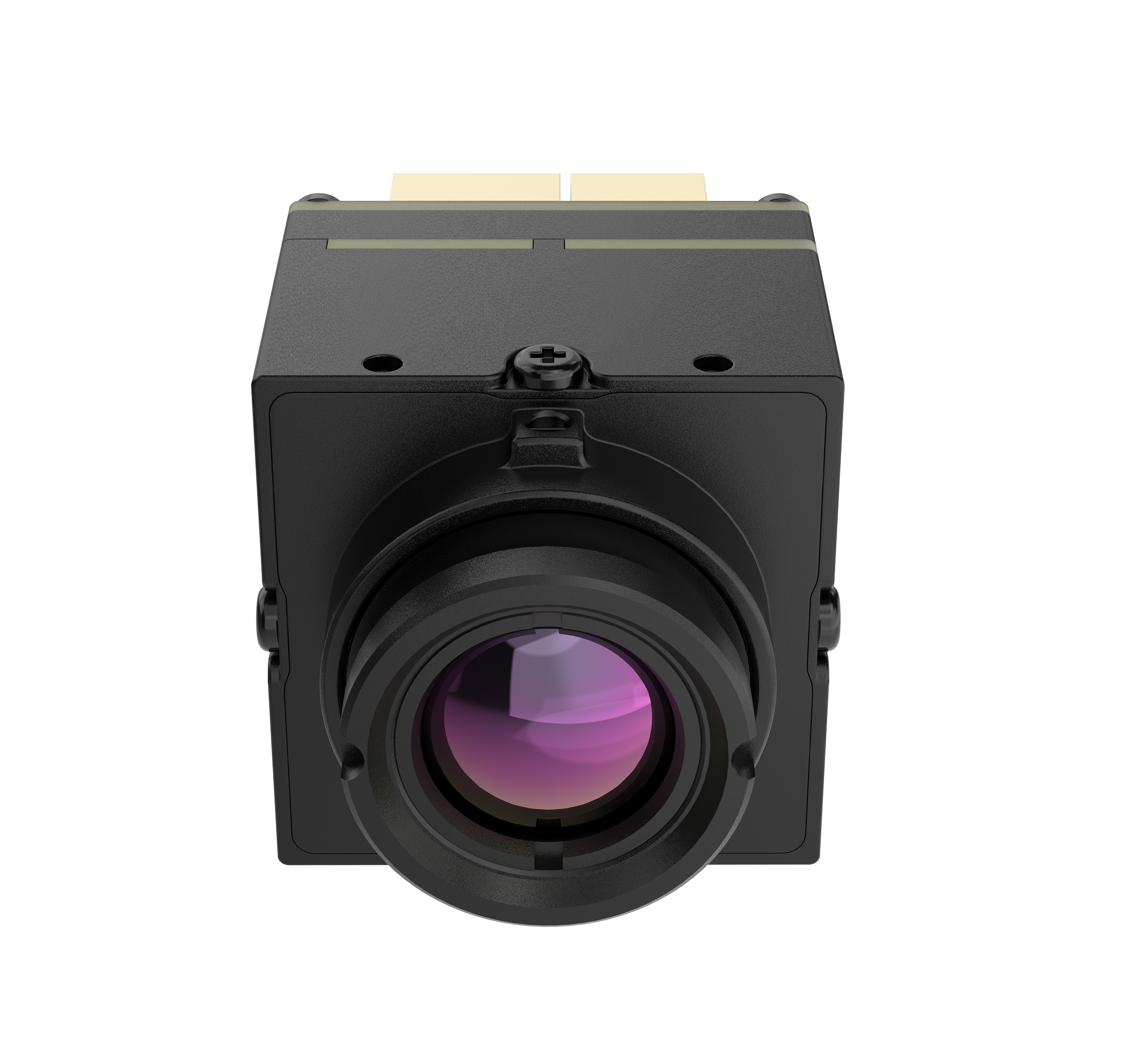

Ultra‑Clear Infrared Imaging

640×512 high resolution, equipped with 12‑μm VOx uncooled infrared detector, spectral response 8‑14 μm long‑wave infrared. Rich image details are presented, and long‑distance heat targets can be clearly identified.

Smooth High‑Definition Video Output:

Real‑time imaging at 50 Hz high frame rate, no motion blur or stutter, delivering stable performance for all‑weather dynamic monitoring applications.

Multiple Lenses for Optional Selection:

9.1 mm focal‑length lens as standard configuration. Custom‑available focal lengths include 4.1 mm, 6.8 mm, 12 mm, 13 mm and more, to meet diverse field‑of‑view and detection‑distance requirements.

Versatile Image‑adjustment Functions for Multi‑scenario Deployment:

Built‑in multiple color palettes including White‑hot, Black‑hot, Red‑hot, Rainbow and more. 1‑8× digital zoom, multi‑mode image mirroring, brightness & contrast adjustment are supported for flexible image optimization.

Excellent Stability for Wide‑temperature Operating Conditions:

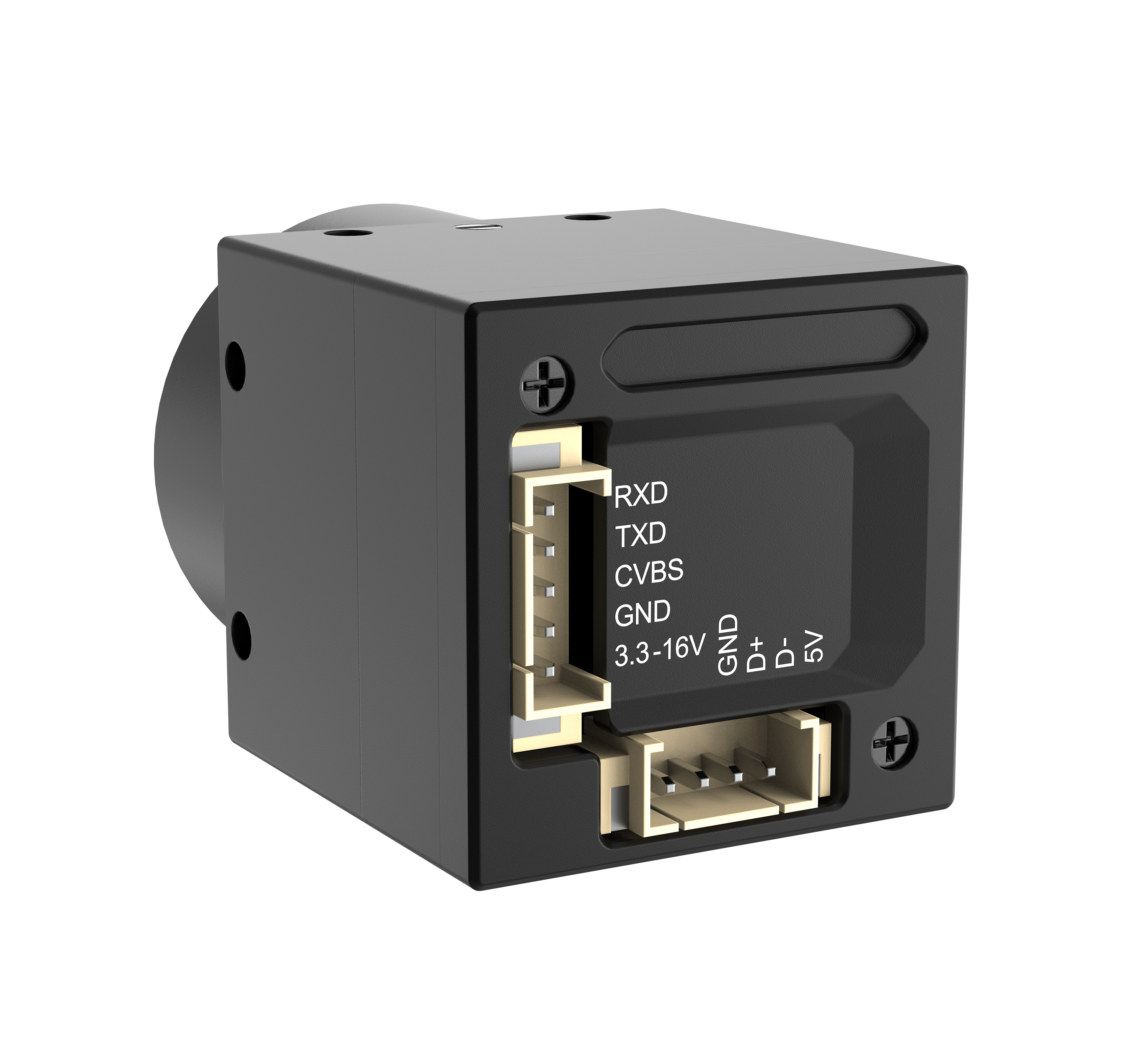

Stable operation from ‑30℃ to +50℃, storage temperature ranging from ‑40℃ to +70℃. Wide input‑voltage 3.3V‑16V, low power consumption ＜0.9W for long‑duration operation.

Compact & Light‑weight, Easy‑to‑integrate Module:

Miniature form‑factor, net weight only 30g. Ideal for integration into pan‑tilt security systems, on‑board devices, industrial inspection equipment and other finished solutions.
