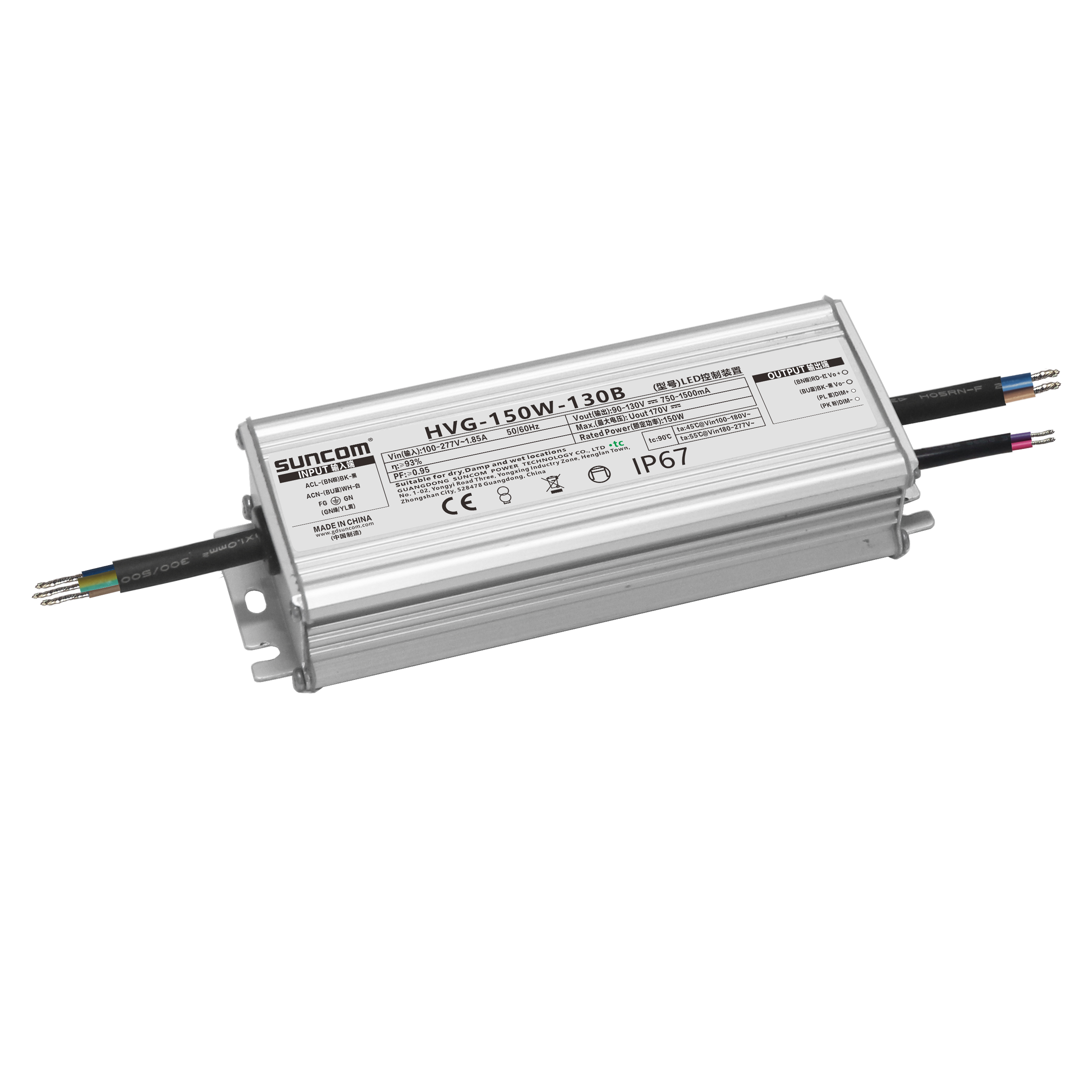

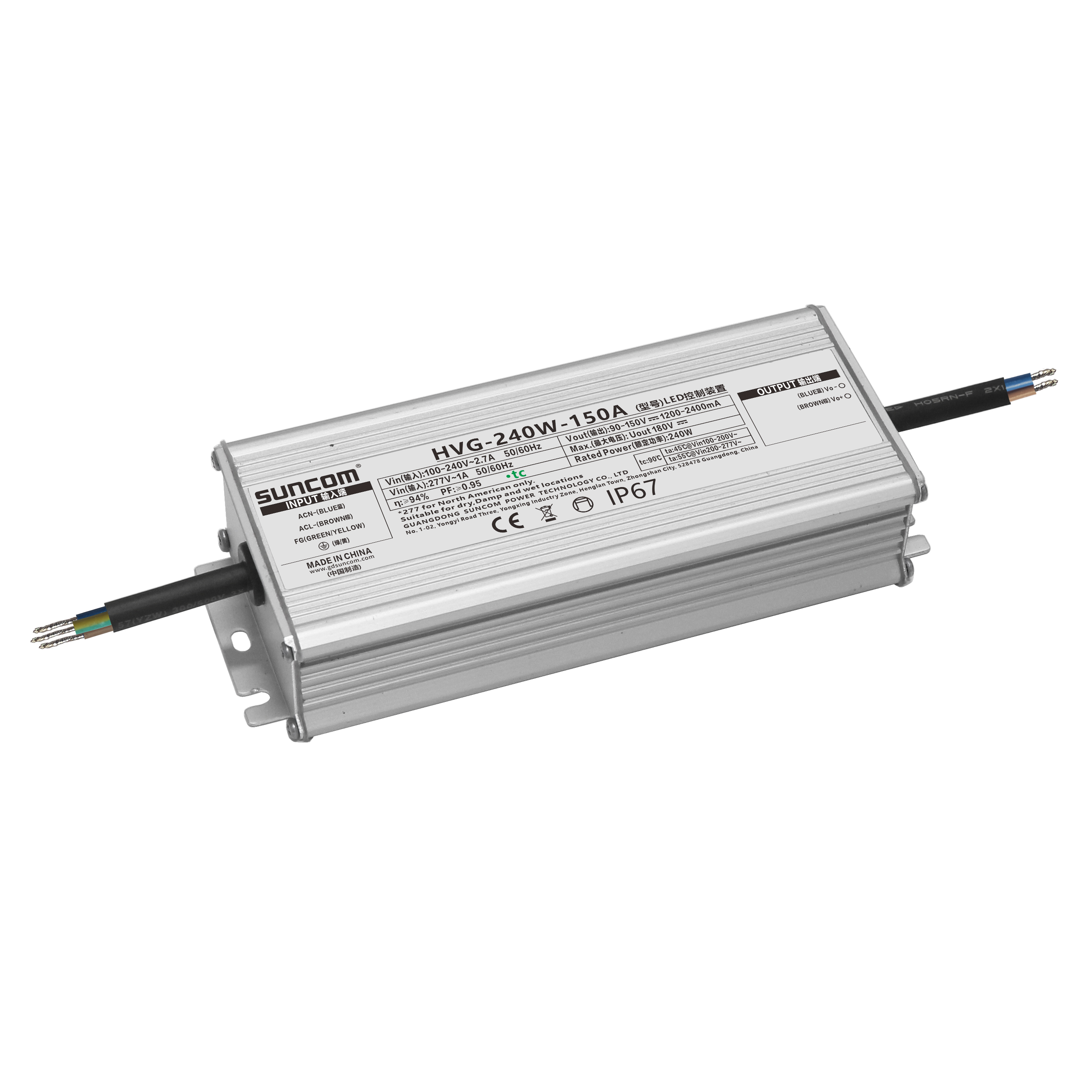

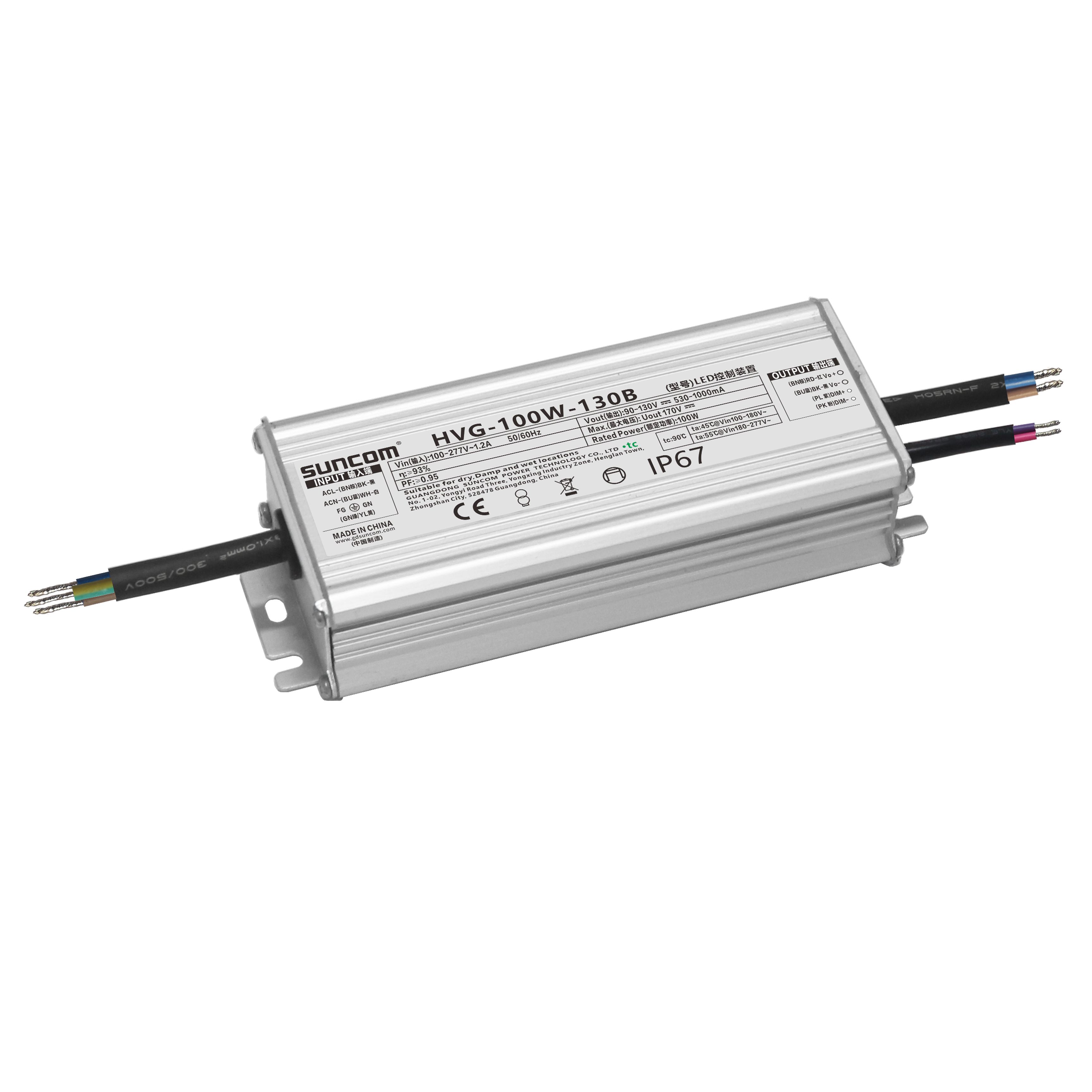

HVG series:Non-isolated Street Light LED Drivers
Application:
Street light
Brand:
suncom
Customised:
Yes
Feature:
INPUT VOLTAG: 100-277V OUTPUT VOLTAGE: 90-130V ELECTRICAL PERFORMANCE PARAMETERS: THD<10%/PF>0.95 SURGE PROTECTION GRADE: 6/10KV (≤75W: 4/6KV) IP GRADE: IP67 WARRANTY: 5 years
Size:
105*56*32mm,136*56*32mm,145*56*32mm,etc.
Model No.:
HVG-30W-130A,HVG-50W-130A,HVG-75W-130A,ETC.
Power Source:
AC Power
Light Source:
LED
Description
Contact Supplier
Description
Input voltage range: 100-277V
Output voltage: 90-130V
THD＜10%/PF＞0.95
Class I type for insulation
Constant current output , with power limitation for control mode, non-isolated
Efficiency up to 93%（Typ.）
Surge protection: 6/10KV
Metal material case, protection grade against water and dust: IP67
Protections: UVP/SCP/OTP/OVP
Products certifications: CCC/CE/CB
Dimming function: 3 in 1 dimming (1-10V dimming/PWM dimming/resistor dimming)
Output current is dimmed by external potentiometer ( Only Type A )
Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B）
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40 ~ 80℃
Warranty: 5 years
