Handheld CB Radio
Production Lead Time:
3 day(s)
Model No.:
666
Brand:
TeLT
Colour:
Black
Size:
100 x 53 x 28mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
L/C, T/T, Western Union, Paypal
Minimum Order Quantity:
1 piece(s)
Description
Contact Supplier
Description

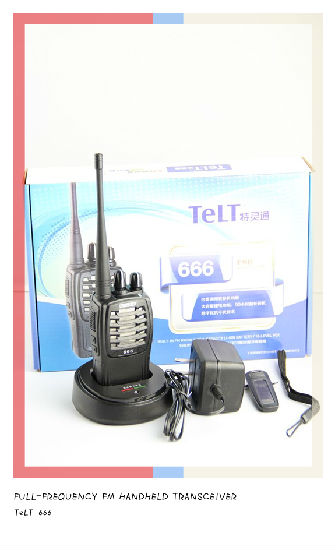

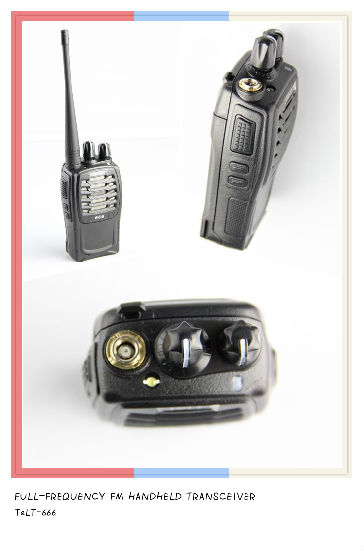

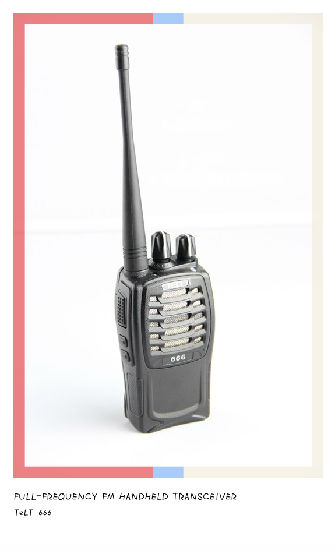

Showcased here is a handheld cb radio.

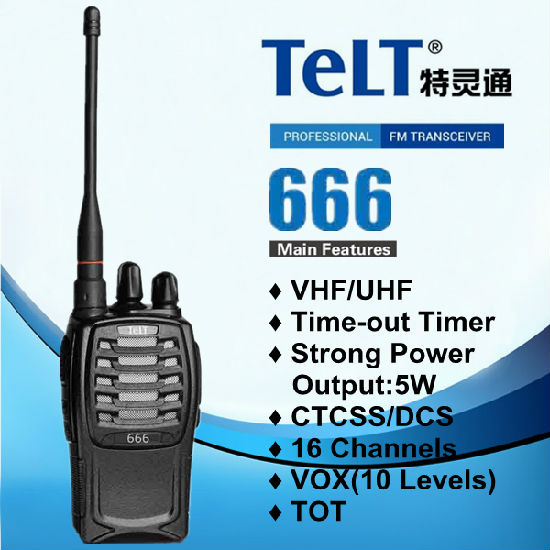

Main features:
Main features:
- 5W output power.
- CTCSS/DCS encode and decode.
- Alarm function.
- 16 channels.
- Built-in FM radio.
- VOX (10 level).
- Frequency stability ±2.5ppm.
- Wide (25kHz) and narrow (12.5kHz) available.
- Power save function.
- Low battery alert.
- High/low power switch able.
- Time-out timer.
- Voice prompt.
- Frequency range: VHF 137-174MHz 244-246MHz; UHF 350-390MHz, 400-470MHz.
- Channel No.: 16 channels.
- Channel step: 5kHz/6.25kHz.
- Frequency stability: 2.5ppm.
- Operating temperature: -10℃ to + 60℃.
- Working voltage: 7.4V DC.
- Dimension (H x L x W): 100 x 53 x 28mm.
- Weight: 210g.
- Distances: 3-18km.
- Output power: 5W/7W regulable.
- Max.freq.deviation: ＜±5kHz.
- Antenna impedance: 50Ω.
- Transmitting current: ≤1300 mA.
- Modulation distortion: ＜5% (300kHz–3kHz).
- Modulated mode: FM (F3E).
- Residualwave radiation: ≤-65dB.
- Sensitivity: 0.20μV (12dB SINAD).
- Operating bandwidth: wide.25kHz; narrow.12.5kHz.
- First IF of receiver: 38.850MHz/26.450MHz.
- Second IF of receiver: 450kHz.
- Squelch sensitivity: 0.16μV.
- Audio power output: ≤1W.
- Standby: 20mA.
