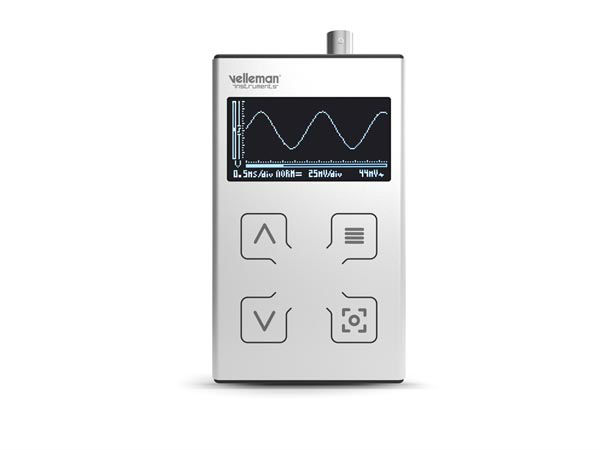

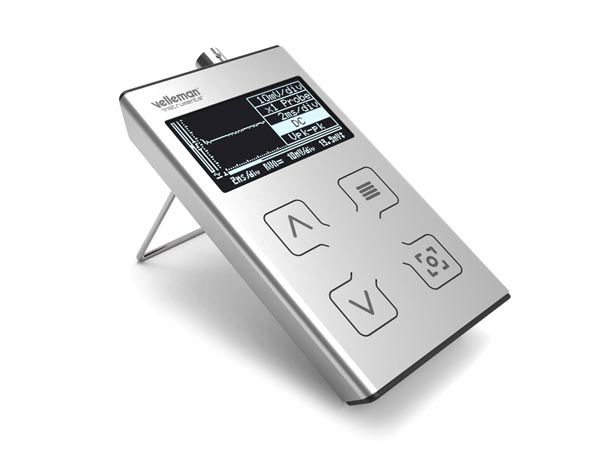

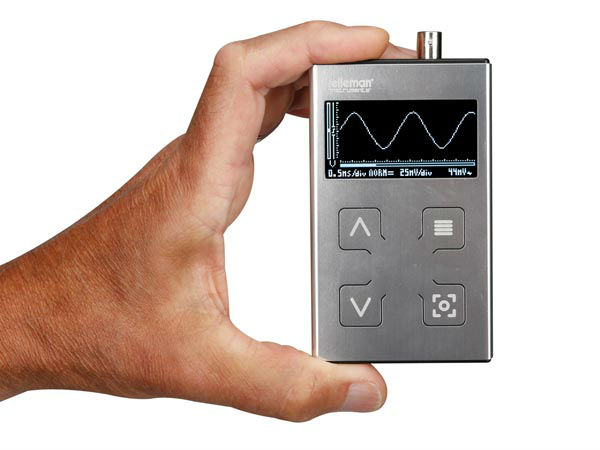

• The HPS140MK2 handheld pocket scope still holds the same power as its predecessor, the HPS140, but in a new and modern design.
• Although small in size, the HPS140MK2 has a bandwith of up to 10 Mhz and packs 40 Ms/s in real time. The scope's sensitivity can go as low as 0.1 mV and it has signal markers for amplitude and time.
• Add the HPS141 option and use your HPS140MK2 as a versatile component tester.

Features:
-40 Mega samples/sec in real time
-bandwith up to 10 Mhz
-full auto range option
-sensivity down to 0.1 mV
-signal markers for amplitude and time
-memo hold function
-direct auto power measurement
-optional:
HPS141: component tester for pocket scope HPS140MK2
HPSPR1: X10 measuring probe
HPSP1: protective pouch for Velleman Instruments

Specifications:
-bandwith: up to 10 Mhz (-3dB or -4dB at selected ranges)
-input range: 1 mV to 20 V/division in 14 steps
-input coupling: DC, AC and GND
-real-time sample rate up to 40 MS/s
-AD resolution: 8 bits
-time base: 250 ns to 1 h per division
-auto set-up function (or manual)
-probe x10 readout option
-readouts: DC, AC + DC, True RMS, dBm, Vpp, Min-Max. (+-2.5%)
-audio power measurement from 2 to 32 ohms
-hold & store function
-time and voltage markers readout
-max. 100Vp AC + DC
-white LED backlight
-power supply: 4x1.5 V AAA batteries (not incl.)
-operating time: up to 8 hours on quality Alkaline batteries
-for use on CLASS II pollution degree II installations
-dimensions: 114x68x22 mm
-weight: 166 gr
-current consumption: max. 150 mA
