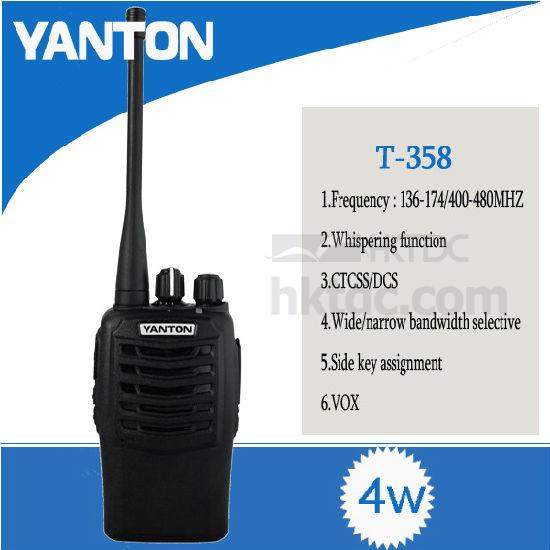

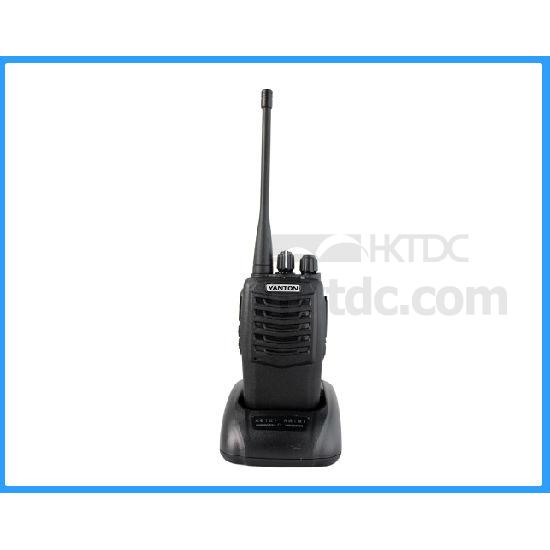

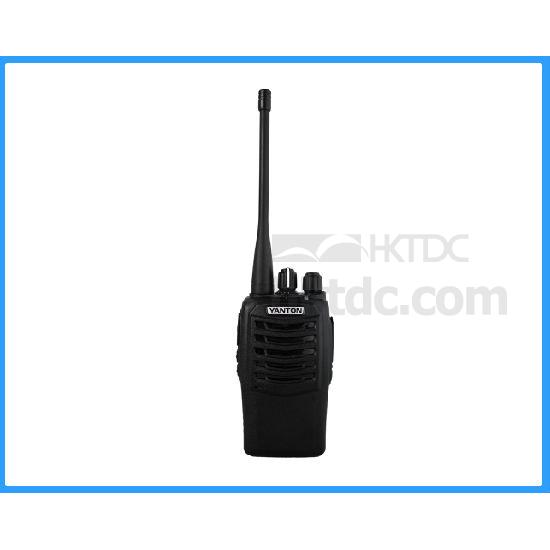

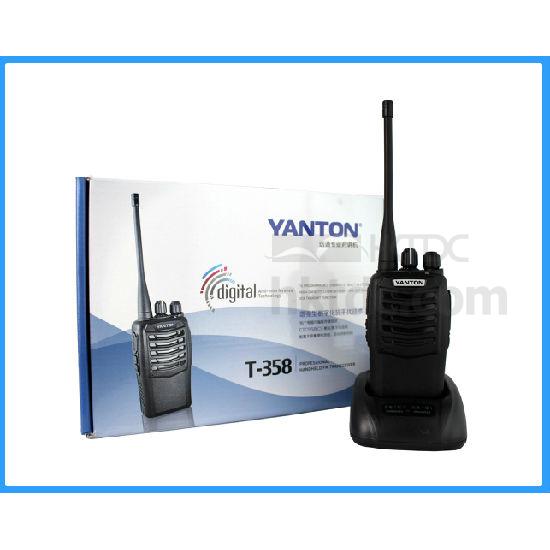

Handy Radio
Production Lead Time:
3 day(s)
Model No.:
T-358
Brand:
YANTON
Colour:
Black
Size:
111 x 54 x 34mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
TT, Western Union, Paypal
Minimum Order Quantity:
1
Description
Contact Supplier
Description
- Output Power:3W
- Frequency Range: 136-174MHz/400-480MHz
- 16 Memory Channels
- Scan
- PC Software Programmable and Wire Copy
- VOX Function
- CTCSS/DCS
- Monitor, Reverse Frequency
- Power Saving Function, Low Power Warning
- High/Low Power Selective
- Wide/Narrow Bandwidth Selective
- End-tone Elimination
- FM Radio (87.5-108MHz)
- Whispering Function
- Busy Channel Lock
- Transmitter Time-out Timer(TOT)
- Side Key Assignment
- 0-9 Grades Squelch Level Setting
- Calling Remind
- Chinese and English Voice Prompt
- 1800mAH Li-ion Battery
- Frequency range: 136-174MHz/400-480MHz
- Channel no.: 16.
- Operating temperature: -20-60°C.
- Frequency stability: ±2.5ppm.
- Antenna: high gain antenna.
- Antenna impedance: 50Ω.
- Operating voltage: DC 3.7V.
- Battery: 1800mAh (Li-ion).
- Mode of operation: simple or semi-duplex.
- Weight: 249g (with antenna & battery).
- Dimensions: 111 x 54 x 34mm (L x W x H, without antenna).
- Output power: 3W
- Modulation mode: F3E.
- Maximum deviation: ≤5kHz.
- Remain wave radiation: <-60dB.
- Transmitting current: ≤1000mA.
- RF sensitivity: <0.25μV (12dB).
- Squelch sensitivity: <0.20μV.
- Inter-modulation anti jamming: 50dB.
- Rated audio power output: 500mW.
- Receiving current: ≤100mA.
- Squelch standby current: 20mA.
