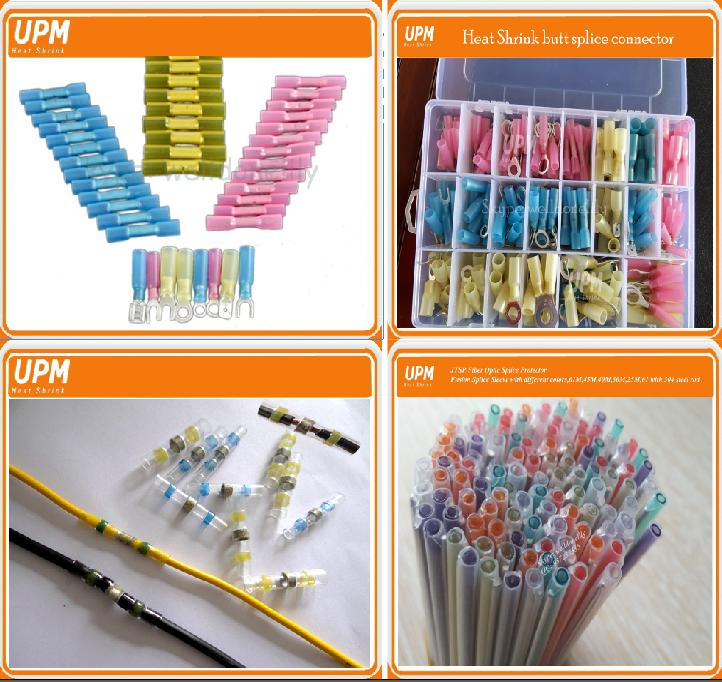

Heat Shrink Butt Splice Connector and Terminals RIng Spade Male Female Fork shape
Production Lead Time:
28 day(s)
Shipping Method:
by sea
Model No.:
Wr-02
Brand:
UPM heat shrink
Port:
Dalian, China
Type of Payment:
T/T, D/P
Minimum Order Quantity:
300 piece(s)
Customised:
Yes
Description
Contact Supplier
Description
| WR-01N RoHS Solder Sleeve Wire Splices | ||||||||
| Introduction | ||||||||

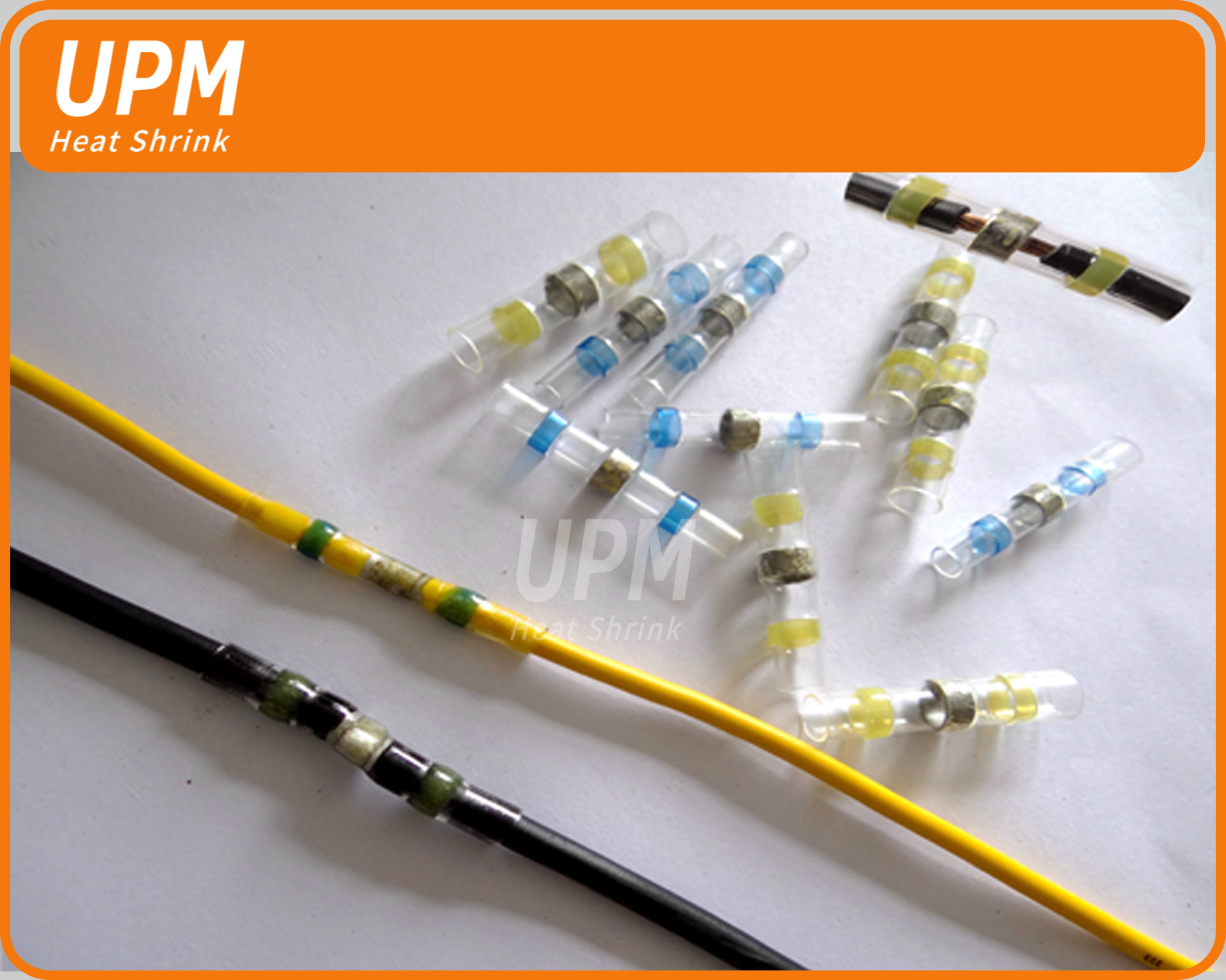

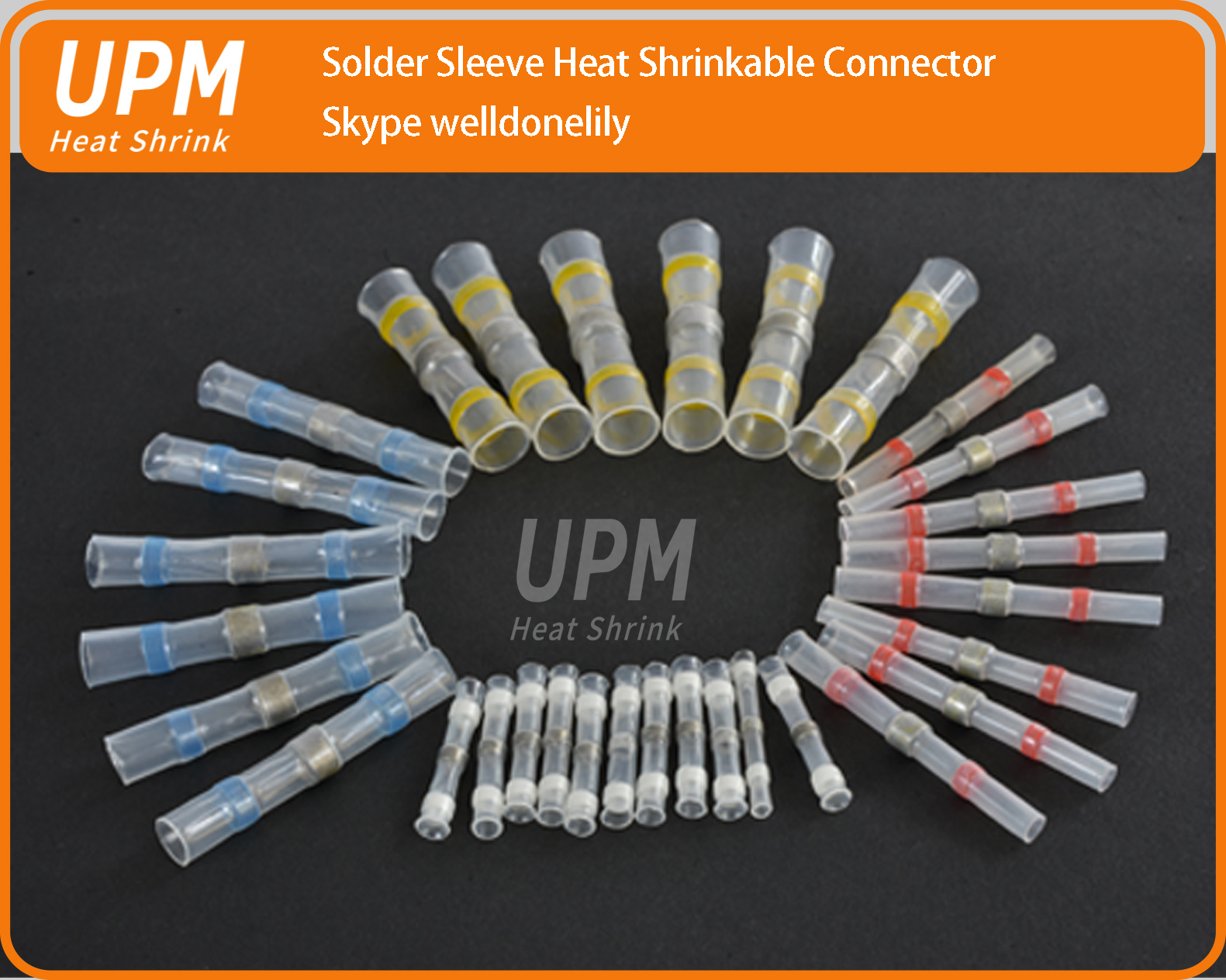

| Solder sleeve discrete wire terminators,including cross-linked polyolefin insulation tube,prefluxed lead-free solder ring,meltable adhesive ring.Used for terminating wires to component terminals, such as tabs, connector pins, and switch terminals.Wire connection, fusion, insulation and waterproofing all completed in one step.One piece transparent design,easy inspection and convenient installation. | ||||||||
| Features Operating temperature: -55 to 125°C Minimum fully recovery temperature: 115°C Solder complete melting temperature: 150 ℃ Shrink ratio: 2:1 Voltage class: 600V Lead-free environmentally friendly solder ring | ||||||||
| Technical Data | ||||||||
| Property | Test Method | Requirement | ||||||
| Tensile Strength | ASTM D2671 | ≥14 MPa | ||||||
| Ultimate Elongation | ASTM D2671 | ≥400% | ||||||
| Heat Aging (150°C/168h) Tensile Strength Ultimate Elongation | ASTM D2671 | ≥10 MPa ≥200% | ||||||
| Dielectric Voltage Withstand | AC 2500V, 60s | No breakdown | ||||||
| Heat Aging (150°C/168h) Dielectric Voltage Withstand | ASTM D2671 | No breakdown, and not less than 50% before aging | ||||||
| Low-temperature flexibility (-40°C/4h) | ASTM D2671 | No cracking | ||||||
| Heat shock (200°C/4h) | ASTM D2671 | No cracking | ||||||
| Secant modulus 2% | ASTM D2671 | ≤250 MPa | ||||||
| Volume resistivity | ASTM D2671 | ≥1.0×1014Ω.cm | ||||||
Dimension | ||||||||
| Part NO. | Tube Dimensions (mm) | Wire Dimensions (mm) | Wire Range | Color | ||||
| Inner diameter d (min.) | Length L | B (min.) | B&C (max.) | C (min.) | A.W.G | mm2 | ||
| WR-01N-11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24 | 0.25-0.34 | White |
| WR-01N-12 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red |
| WR-01N-13 | 4.7 | 40 | 2.3 | 4.7 | 2.0 | 16-14 | 1.5-2.5 | Blue |
| WR-01N-14 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 | 4.0-6.0 | Yellow |
