Heat Shrink Cable Accessories Cable Joint and Termination
Production Lead Time:
28 day(s)
Shipping Method:
by Sea
Model No.:
C15
Brand:
UPM heat shrink
Type of Payment:
T/T, D/P
Description
Contact Supplier
Description

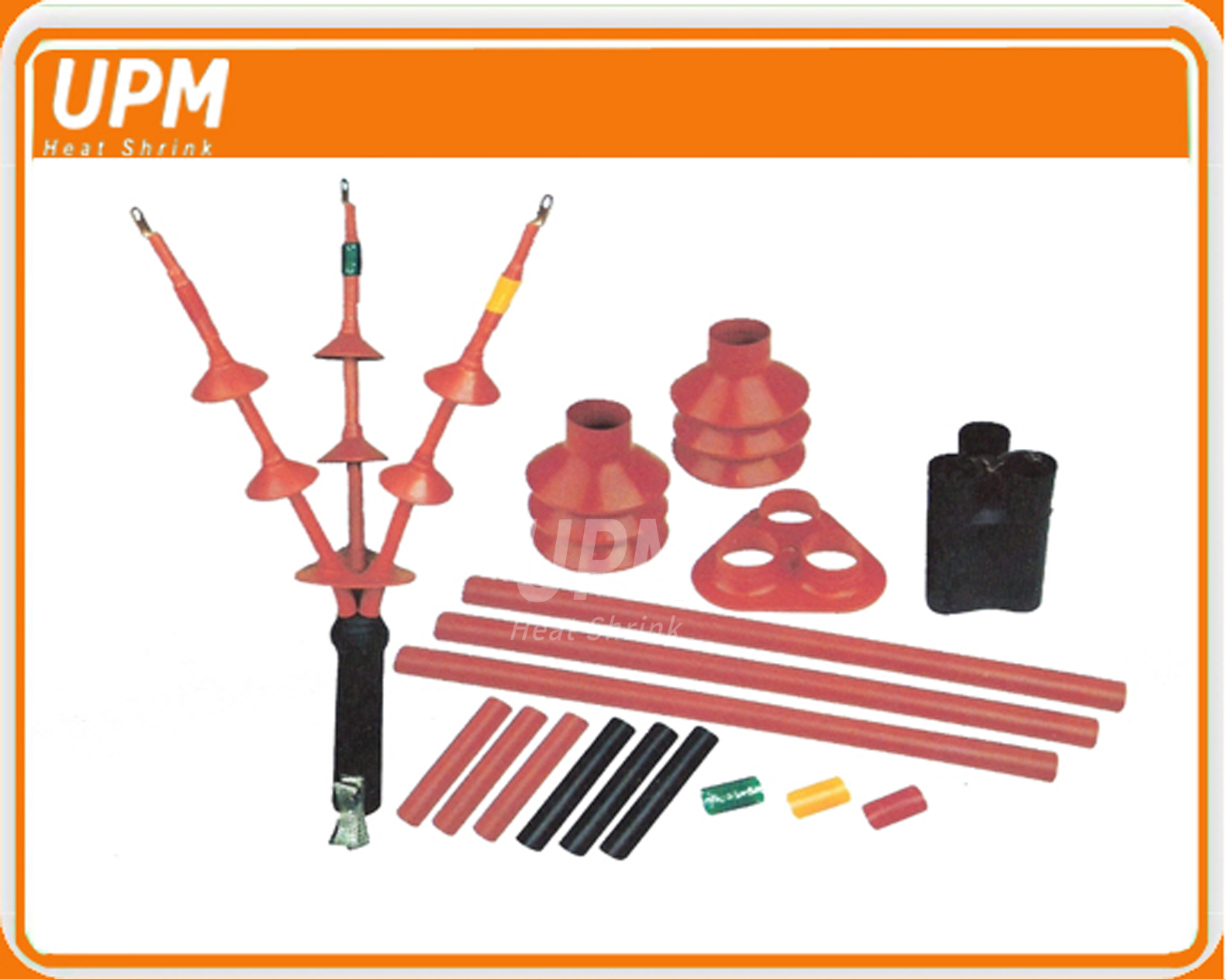

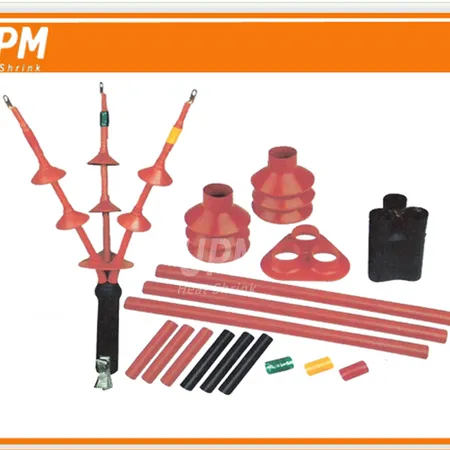

| C35 8.7/15kV Heat Shrink Cable Accessories | ||||||
| Introduction | ||||||
| Single core, 3 cores cable accessories. Suitable for protection of indoor and outdoor electric power cable joint and termination up to 8.7/15kV. | ||||||
| Features | ||||||
| Voltage class: 8.7kV/15kV | ||||||
| Operating temperature: -55 to 105°C | ||||||
| Supplied by set, with the materials in the kit | ||||||
| Well resistance against weather and damage | ||||||
| Compliant Standard: IEC 60502-4:2010-12, GBT 12706.4 | ||||||
| Technical Data | ||||||
| Property | Test Method | Requirement | ||||
| Work frequency dry voltage withstand | 45kV/1min | No breakdown and no flashover | ||||
| Work frequency wet voltage withstand | 45kV/1min | No breakdown and no flashover | ||||
| Work frequency long term voltage withstand | 35kV/4hrs | No breakdown and no flashover | ||||
| Impact voltage withstand | 105 kv /±10times | No breakdown | ||||
| D.C.voltage withstand | 52 kV/15mins | No breakdown and no flashover | ||||
| Partial discharge(kV, pc) | 13, ≤20 | 13, 10 | ||||
| Dimension | ||||||
| Indoor Termination | Outdoor Termination | Joint | Size for conductor (mm2) | |||
| Reference C15 | Cable core number | Reference C15 | Cable core number | Reference C15 | Cable core number | |
| NSY-1031 | 3 | WSY-1031 | 3 | JSY-1031 | 3 | 25-50 |
| NSY-1032 | 3 | WSY-1032 | 3 | JSY-1032 | 3 | 70-120 |
| NSY-1033 | 3 | WSY-1033 | 3 | JSY-1033 | 3 | 150-240 |
| NSY-1034 | 3 | WSY-1034 | 3 | JSY-1034 | 3 | 300-400 |
| NSY-1011 | 1 | WSY-1011 | 1 | JSY-1011 | 1 | 25-50 |
| NSY-1012 | 1 | WSY-1012 | 1 | JSY-1012 | 1 | 70-120 |
| NSY-1013 | 1 | WSY-1013 | 1 | JSY-1013 | 1 | 150-240 |
| NSY-1014 | 1 | WSY-1014 | 1 | JSY-1014 | 1 | 300-400 |
