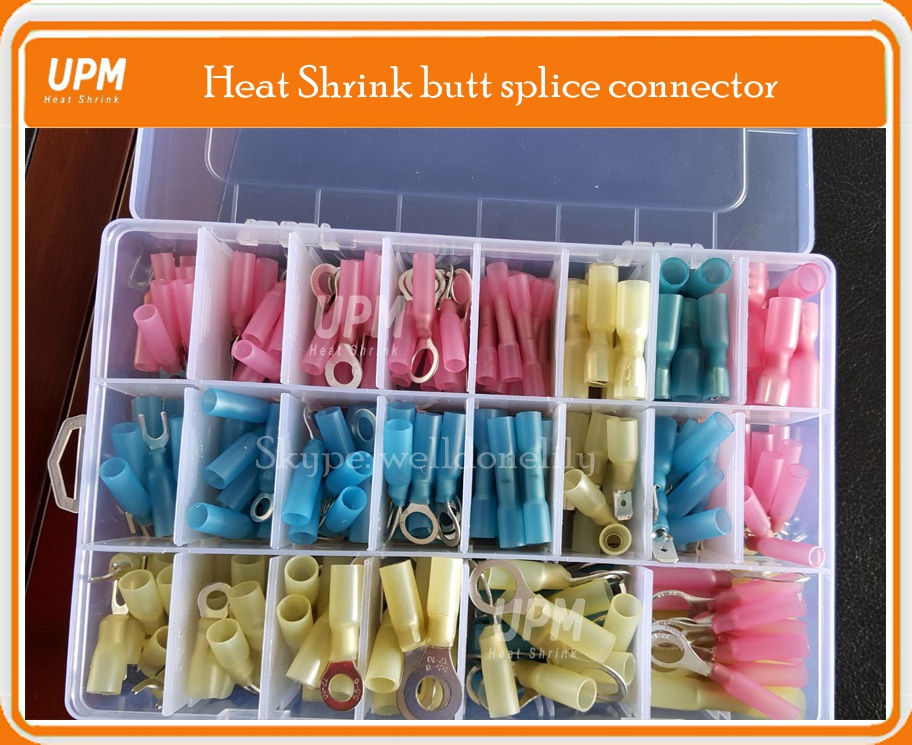

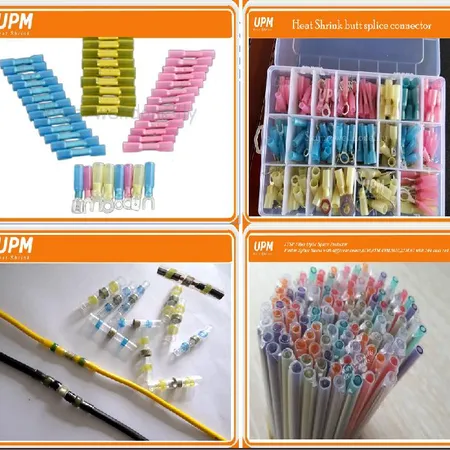

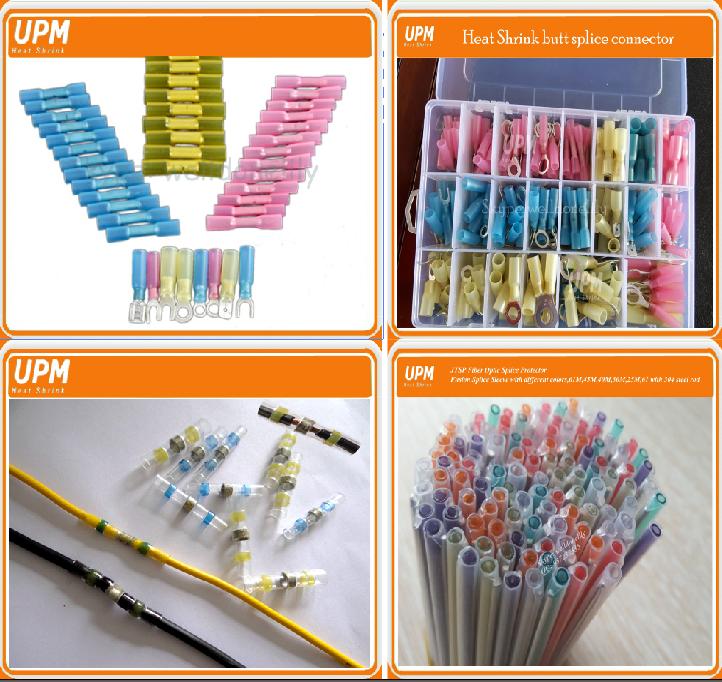

Heat Shrink solder sleeve and butt splice connector and terminators
Production Lead Time:
28 day(s)
Shipping Method:
by sea
Application:
used to terminate wires safely, or connect one wire to another for fixing and anti-vibration purpose to strengthen durability, stability, and reliability.
Customised:
Yes
Model No.:
WR01
Brand:
UPM Heat Shrink
Free sample :
Available
OEM service :
Available
Trade term:
FOB
Description
Contact Supplier
Description
| WR-01 Solder Sleeve Wire Splices | ||||||||
| Introduction | ||||||||
| Solder sleeve discrete wire terminators,including cross-linked polyolefin transparent insulation tube,prefluxed solder ring,meltable adhesive ring.Used for terminating wires to component terminals,such as tabs,connector pins,and switch terminals.Wire connection,fusion,insulation and waterproofing all completed in one step.One piece transparent design,easy inspection and convenient installation. | ||||||||
| Features |
| Operating temperature: -55 to 125°C |
| Minimum fully recovery temperature: 115°C |
| Solder complete melting temperature: 150 ℃ |
| Shrink ratio: 2:1 |
| Voltage class: 600V |
| Dimension | ||||||||
| Part NO. | Tube Dimensions (mm) | Wire Dimensions (mm) | Wire Range | Color | ||||
| Inner diameter d (min.) | Length L | B (min.) | B&C (max.) | C (min.) | A.W.G | mm2 | ||
| WR-01-11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24 | 0.25-0.34 | White |
| WR-01-12 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red |
| WR-01-13 | 4.7 | 40 | 2.3 | 4.7 | 2.0 | 16-14 | 1.5-2.5 | Blue |
| WR-01-14 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 | 4.0-6.0 | Yellow |
| Part NO. | Tube Dimensions (mm) | Wire Dimensions (mm) | Color | ||
| Inner diameter d (nom.) | Length L | Inner diameter | Width | ||
| WR-01-3A | 3.0 | 40 | 2.8 | 3.2 | Blue |
| WR-01-5A | 5.0 | 30 | 4.8 | 4.2 | Blue |
| WR-01-5B | 5.0 | 21 | 4.8 | 3.0 | Blue |
| WR-01-5C | 5.0 | 40 | 4.8 | 4.2 | Blue |
| WR-01-7A | 7.0 | 31 | 7.3 | 4.2 | Blue |
| WR-01-7B | 7.0 | 20 | 7.3 | 3.0 | Blue |
| WR-01-9A | 9.0 | 36.5 | 9.0 | 4.5 | Blue |
| WR-01-11A | 11.0 | 34 | 11.5 | 4.2 | Blue |
| WR-01-11B | 11.0 | 36.5 | 11.5 | 4.2 | Blue |
| WR-01-14A | 14.0 | 47 | 14.0 | 4.5 | Blue |
| WR-01-17A | 17.0 | 56 | 17.8 | 6.0 | Blue |

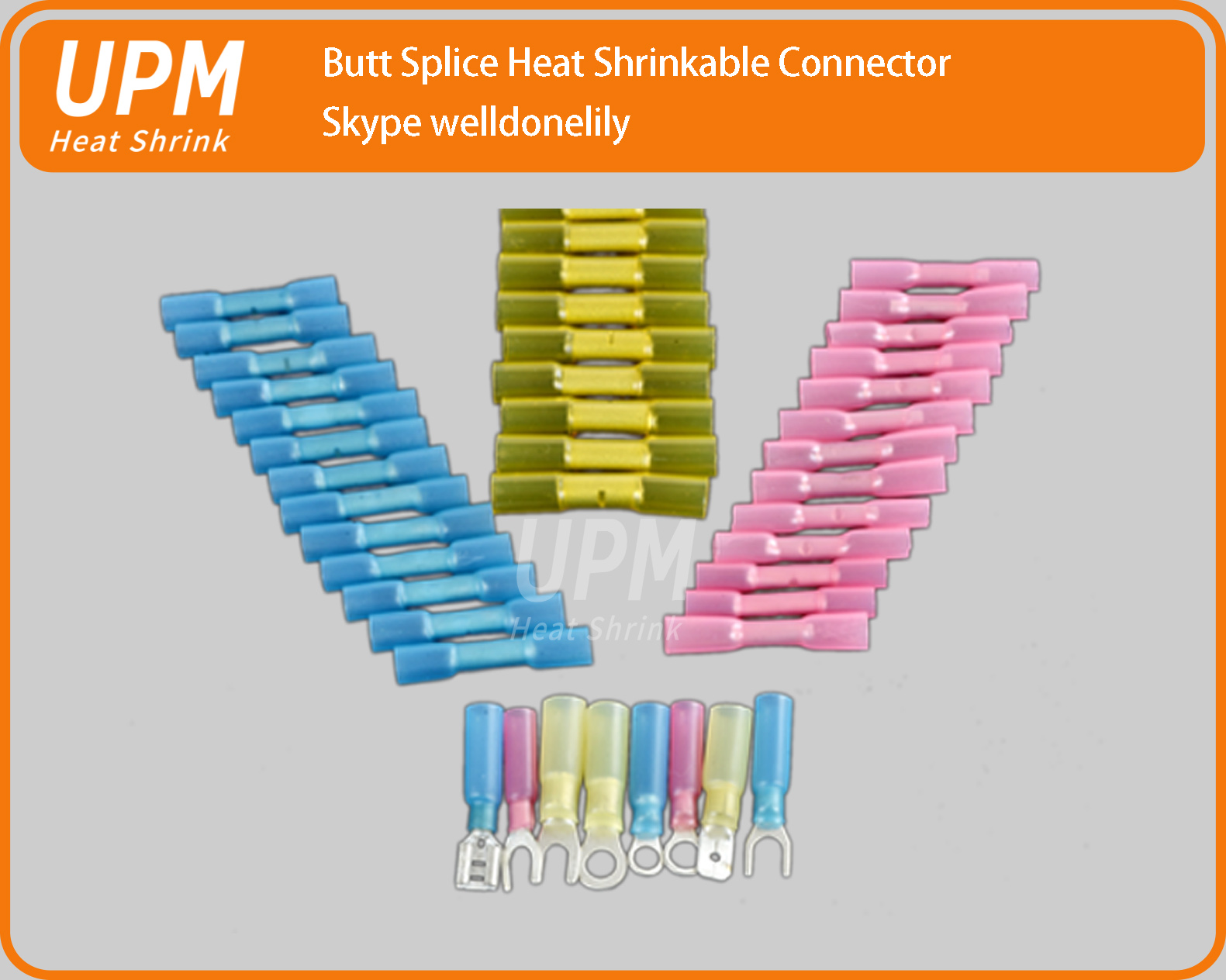

| WR-02 Heat Shrinkable Crimp Splices |
| Cross-linked polyolefin jacket,adhesive-lined,with built-in crimping connectors or terminals.Easy and fast installation,used to terminate wires safely, or connect one wire to another for fixing and anti-vibration purpose to strengthen durability, stability, and reliability. |
| Features |
| Operating temperature: -55 to 125°C |
| Minimum fully recovery temperature: 130°C |
| Semi-rigid polyolefin + Dual wall heat shrink tube |
| Wear resistance and mechanical damage resistance |
| Water sealing, good adhesion to metal, polyethylene, and PVC |
| Halogen-free, RoHS compliant |
| Dimension | |||||||||
| Part NO. | Wire Range | Dimensions (mm) | Heat Shrink Tube (mm) | Color | |||||
| A.W.G | mm2 | d | B | L2 | D | A | L1 | ||
| WR-02-0.5 | 26-22 | 0.2-0.5 | 2.1 | 1.3 | 10 | 4.1 | 3.2 | 26 | Yellow/Clear |
| WR-02-1 | 22-18 | 0.5-1.0 | 3.3 | 1.7 | 15 | 5.9 | 4.7 | 36 | Red |
| WR-02-2 | 16-14 | 1.5-2.5 | 4.0 | 2.4 | 15 | 7.1 | 5.7 | 36 | Blue |
| WR-02-3 | 12-10 | 4-6 | 5.5 | 3.5 | 15 | 8.0 | 6.7 | 42 | Yellow |
| WR-02-3.5 | 14-12 | 2.5-4 | 5.5 | 4.1 | 20 | 7.8 | 6.5 | 38 | Black |
| WR-02-8 | 8 | 10 | 7.0 | 4.8 | 21 | 9.5 | 8.0 | 42 | Yellow |
