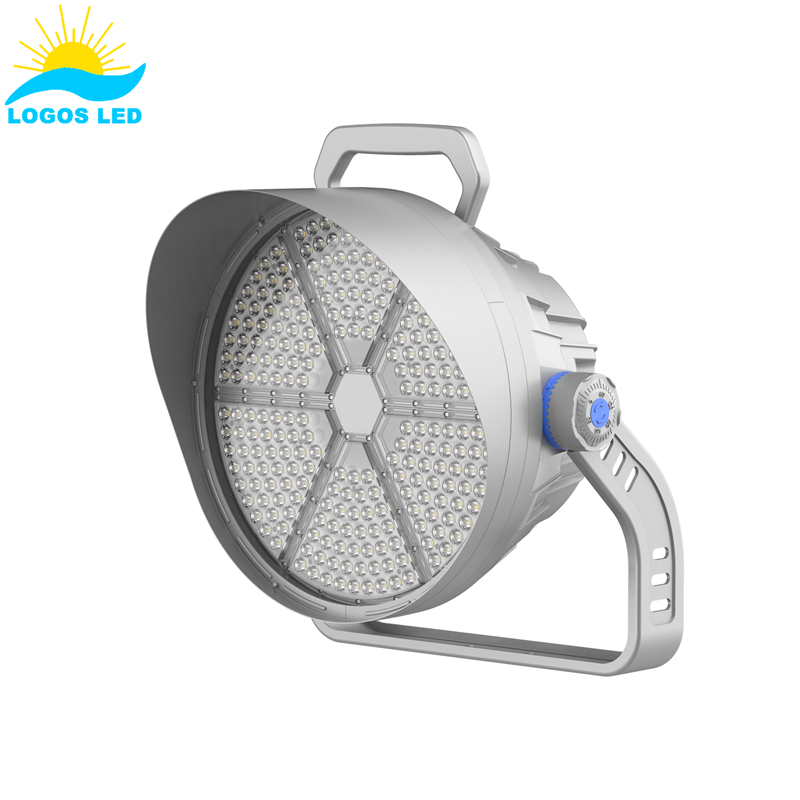

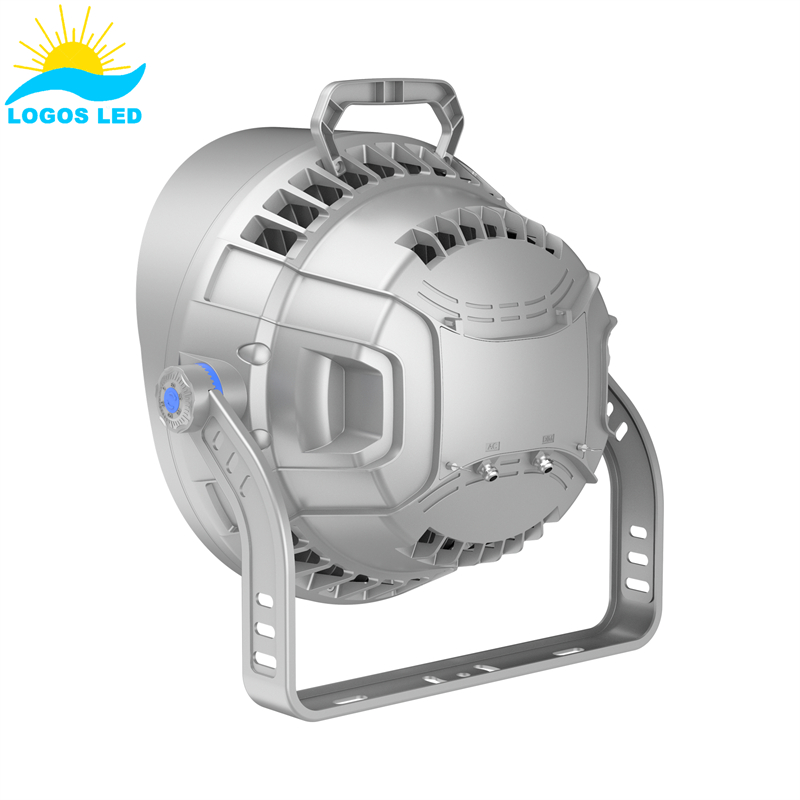

    Helios LED High Mast Light
    Share this page
    US $300.00 - US $600.00
    Production Lead Time:
    15-20 day(s)
    Shipping Method:
    Express/Air/Train/Sea shipment on request
    Power:
    400W-1200W
    Lumen Efficiency:
    150lm/w
    CCT:
    3000/4000/5000/5700/6500K
    CRI:
    Ra>80(Ra>90 optional)
    Chip Brand:
    Lumileds/Osram
    Beam Angle θ/2:
    10°/ 15°/ 25°/ 45°/ 60°/ 90°
    Light Decay Rate:
    Less than 3% in 6,000Hours
    Lifespan:
    ≥50,000Hrs
    Input Voltage:
    100-240VAC 50/60Hz
    Power Factor:
    PF>0.95
    THD:
    <15%
    Driver Brand:
    Meanwell/Sosen/Inventronics
    Material:
    Die-cast Aluminum Housing+Polycarbonate Lens+Tempered Glass Cover(on request)
    Degree of Protection:
    IP66 & IK08
    Finish:
    Grey
    Installation:
    Mounted
    Working Temperature:
    -30℃~+50℃
    Storage Temperature:
    -40℃~+70℃
    Certificate:
    CE, CB, RoHS
    Warranty:
    5 years
    Optional Functions:
    0-10V/PWM/DALI/DMX Available on Request
    Description
    Certification & Document
    Contact Supplier
    Description

    The HELIOS LED High Mast Light is a robust round-shaped fixture designed for optimal performance and durability. Crafted with die-cast aluminum and high thermal conductivity, it ensures rapid heat dissipation and superior thermal management in a compact structure. Equipped with top-quality LEDs and reliable power supply, this light offers a 5-year warranty, demonstrating its commitment to longevity. It features an IP66 waterproof rating and double surge protection up to 10KV to withstand harsh conditions. The anti-UV optical lens boasts an IK08 rating and over 94% light transmittance, ensuring professional light distribution across various beam angles. Optional tempered glass cover and spill shield further enhance its functionality, minimizing light pollution and making it ideal for diverse applications.

    Features

    - Die-cast Aluminum heat sinking, high thermal conductivity enables rapid heat dissipation to the outside, excellent thermal management & compact structure;

    - Packed with reputed brand LEDs and power supply to ensure the product reliability and life expectancy, 5 years warranty;

    - IP66 structural waterproof design; Double surge protection: driver & extra 10KV SPD;

    - Anti UV optical polycarbonate lens, IK08 and light transmittance > 94%, professional light distribution with different beam angles for various applications;

    - Optional tempered glass cover, apply in harsh conditions;

    - Spill shield to reduce light pollution.


    Certification & Document
    Certificate Name
    Issued By
    Certificate Type
    Valid Date
    LogosLED CE-EMC Cert for LED High Mast Light
    Issued By
    LCS
    Certificate Type
    EMC
    Valid Date
    28 Apr 2024
    -
    (N/A)
    LogosLED CE-LVD Cert for LED High Mast Light
    Issued By
    LCS
    Certificate Type
    CE
    Valid Date
    14 May 2024
    -
    (N/A)
