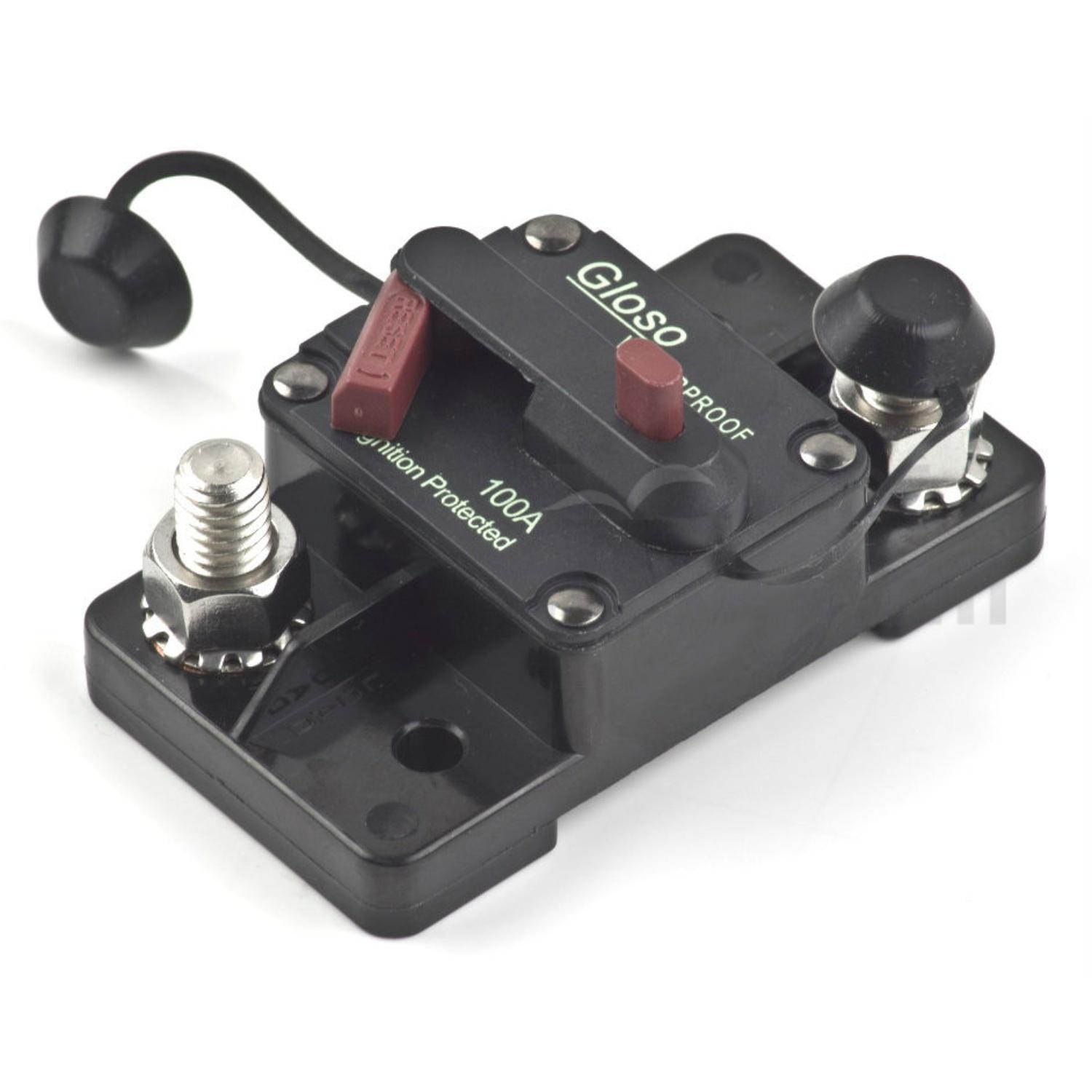

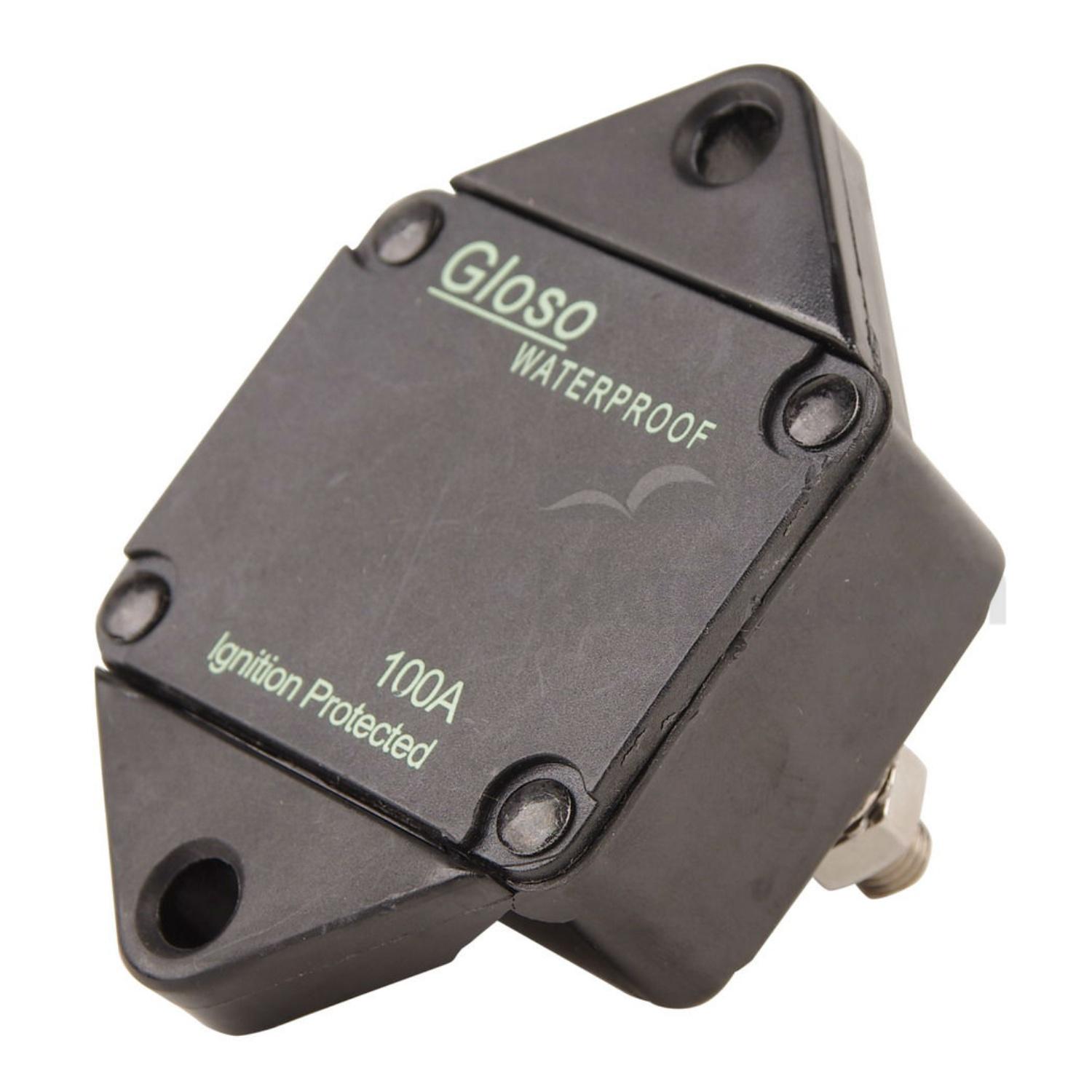

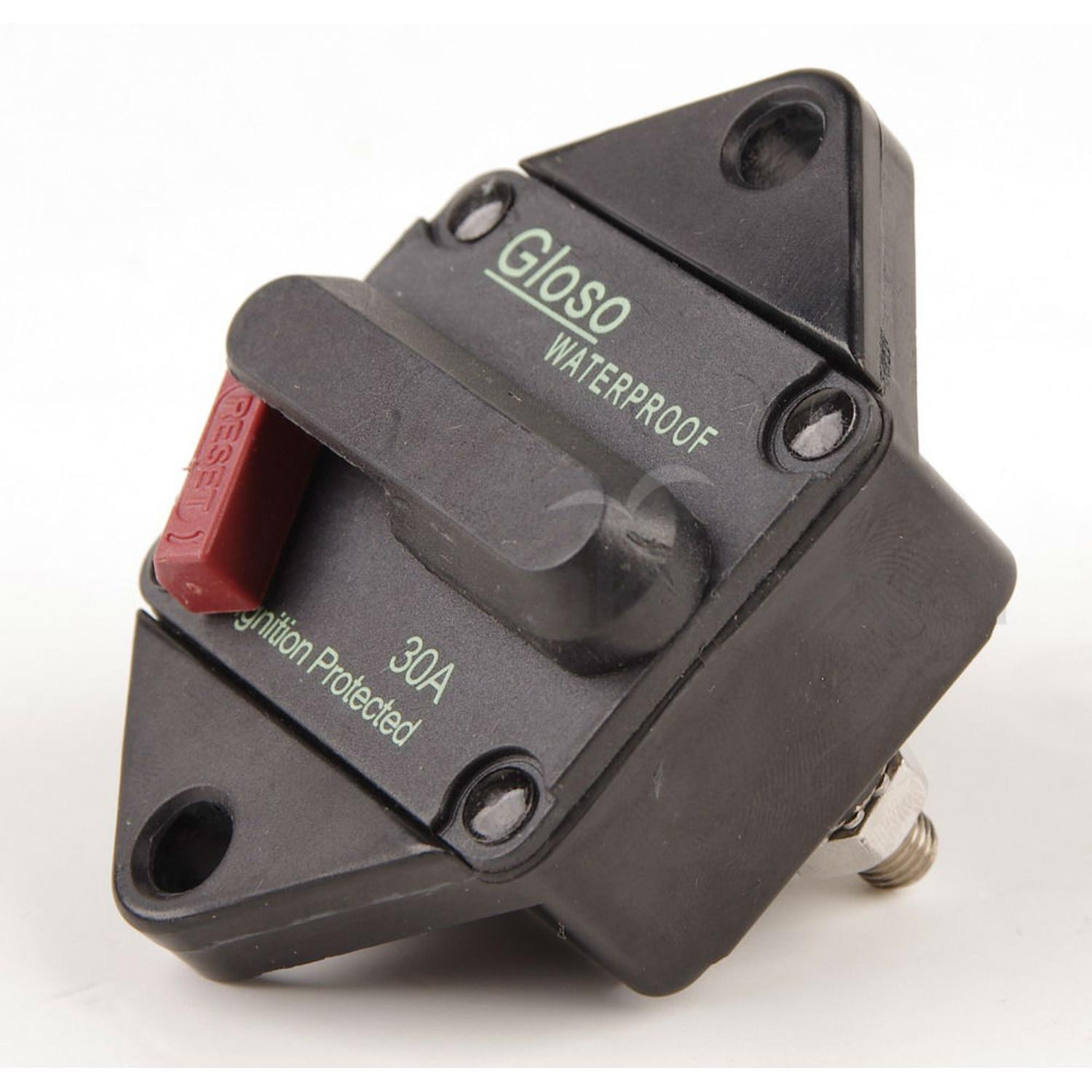

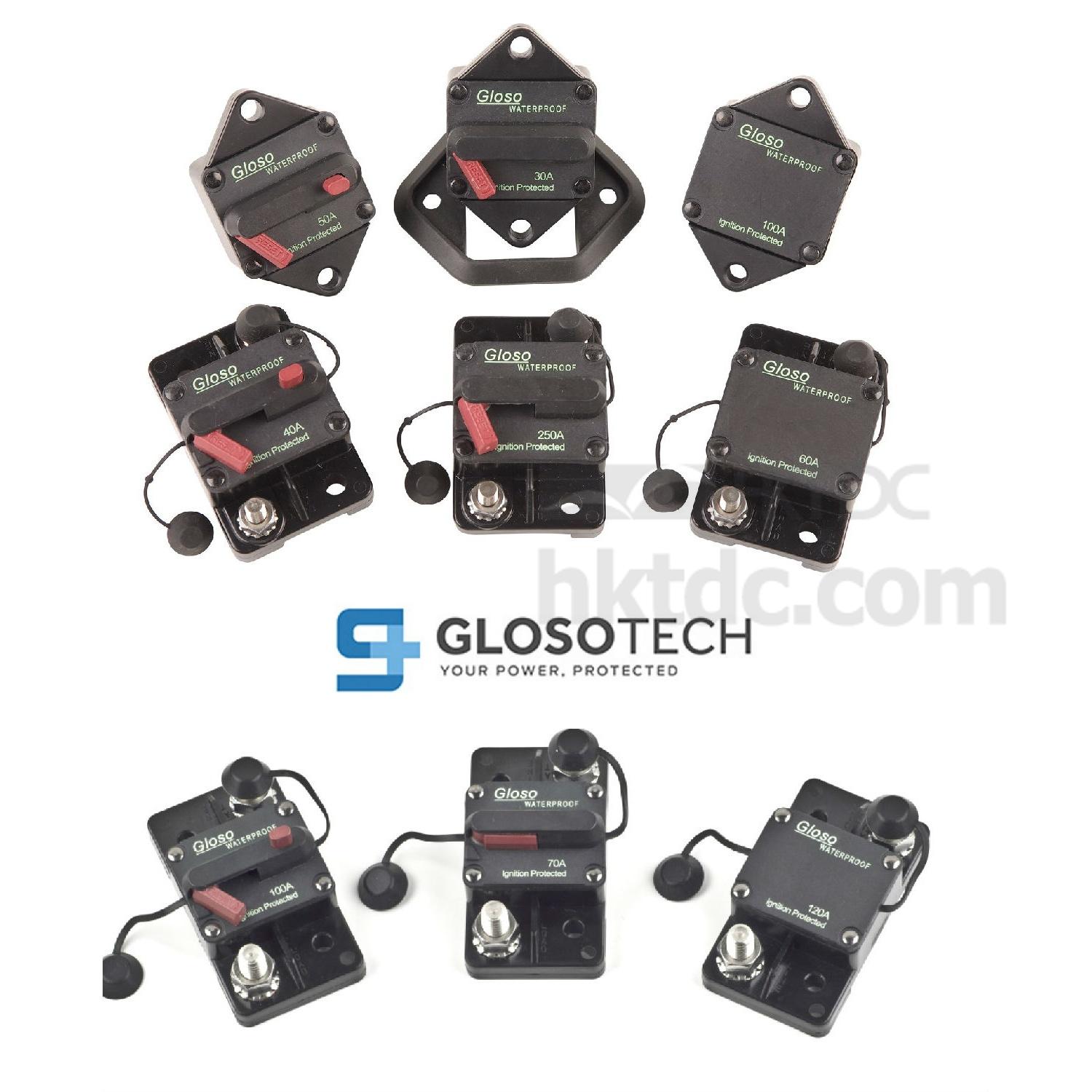

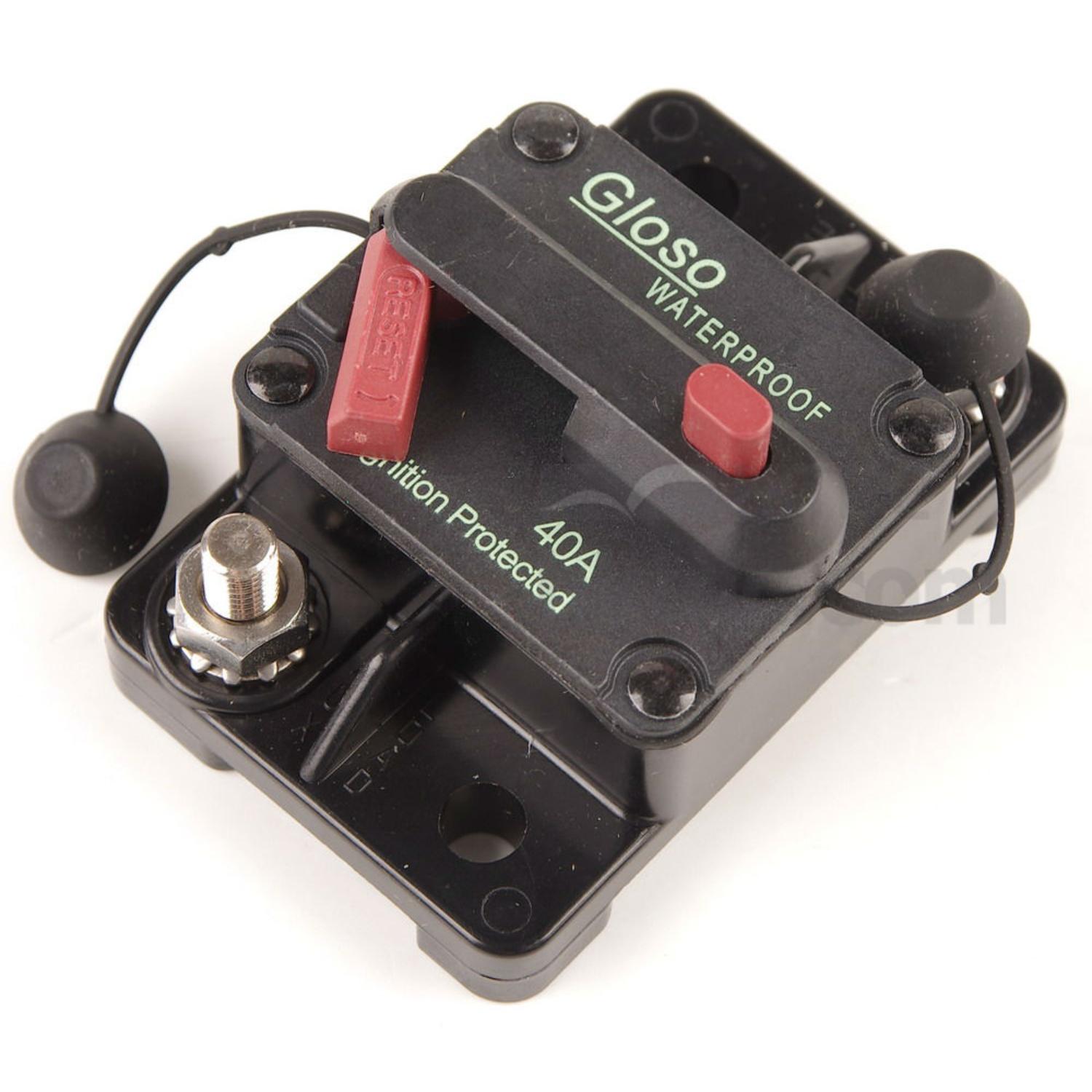

• Auto, Manual & Switchable Reset Circuit Breakers

Features:

• Applications: Typically used in auxiliary and accessory circuits in truck, bus. RVs and marine systems. Others include battery chargers and DC audio systems. E9 are sealed for engine compartment and bilge area applications.

Specification:

• Single Pole Thermal Type Breakers
• Rating: 25-200A, 48Vdc
• Interrupt Rating: 3000A @ 30Vdc
• Operating Temperature Rating: -25F (-32C) to 180F (82C)
• Storage Temperature Rating: -30F (-34C) to 300F (149C)
• Materials: Black UL-Rated 94V0 thermoplastic. Thermoplastic Elastoplast stud insulators are provided on covered units
• Marking: Custom marking are available
• Termination: 1/4-28 and 3/8 threaded studs are both available
• Torque Rating: 50 in-lbs (5.6Nm) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6Nm) max. Threaded insert option has a max torque of 25 in-lbs (2.8Nm).

Safety Approval:

• SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
• Ingress Protection Rating: IP67

Other Description:

• Corrosion
• Conforms to Mil-STD-202, Method 101, Test Condition A, for 500 hours under a 5% salt spray.
• Humidity
• Conforms to Mil-STD-202, Method 106, for 240 hours at 95% RH
