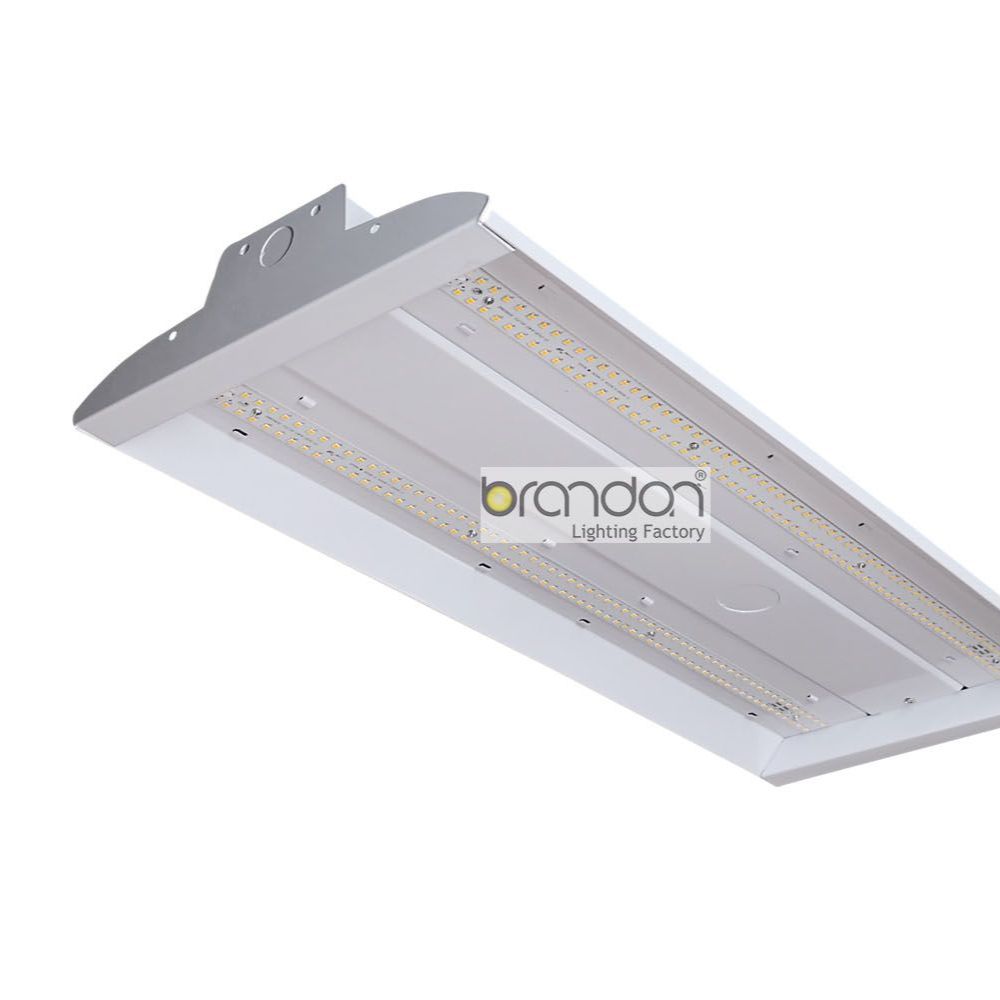

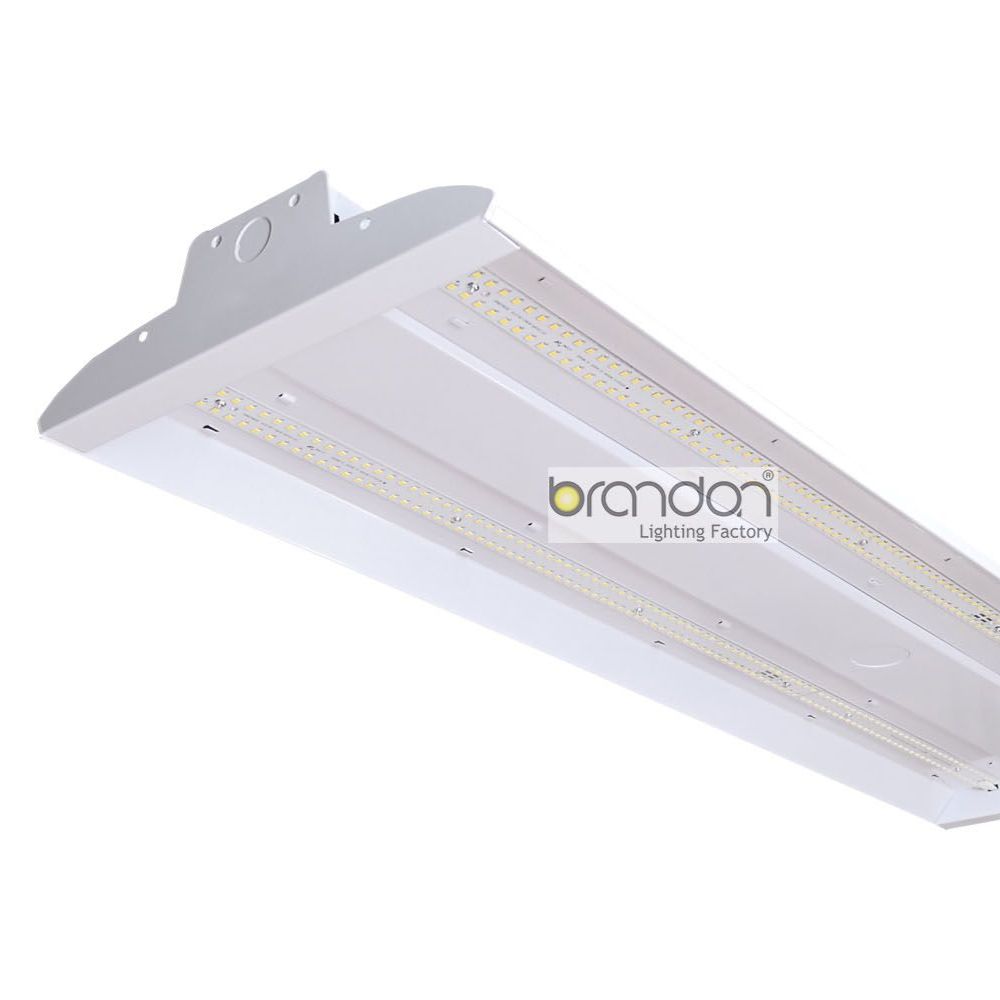

Brandon MX898L Series LED High bay is a compact and economical luminaire utilizing the latest in LED technology, offers exceptional lighting in low to high ceiling applications and delivers the best luminous performance. Employing a 0-10V dimming driver, this fixture will work with occupancy sensors and emergency kits for energy saving. Various color temperature, lumen outputs and accessories for distribution, lens and installation make it perfect for industrial, commercial, manufacturing, warehousing, gymnasium and other applications with mounting heights ranging from 10’ to 40’.

CFI FBY LED high bay provides versatility in form and function. With a wide range of lumen packages and accessories available, this luminaire can be used in many different applications ranging from warehouses and manufacturing facilities to retail outlets and school gymnasiums.

DESCRIPTION

• A cost-effective solid state LED solution for highbay and lowbay applications, replacing up to 250 watt and 600 watt HID fixtures and
• multi-lamp fluorescent luminaires.
• FEATURES
•  >150 lpw ultra-high efficiency delivers superior performance over fluorescent and HID, saving up to 60% of energy costs
• Universal 0-10V driver for continuous dimming
• 1S items feature pre-installed adjustable microwave occupancy sensor
• LISTINGS
• UL Listed for damp locations
• Design Lights Consortium® Premium Qualified - meets the
• Requirements for the highest DLC qualification for efficacy and lumen maintenance

PERFORMANCE

•  Rated lifetime L70
• >50,000 @ 40°C (104°F)
• 4000K, 5000K CCT
• CRI: 80+

ELECTRICAL

• Input voltage: 120-277V, 347-480V
• Dimmable power supply (0-10V)
• Driver efficiency: >85%
• Power Factor: >.9
• THD: <20%V
• Wattage: 50W/100W/150W/200W
