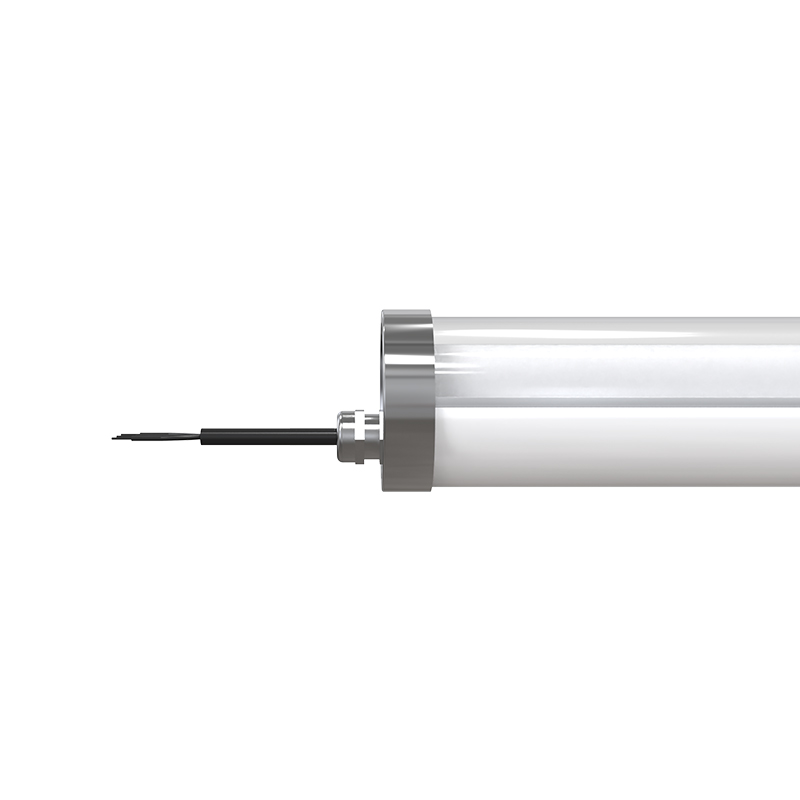

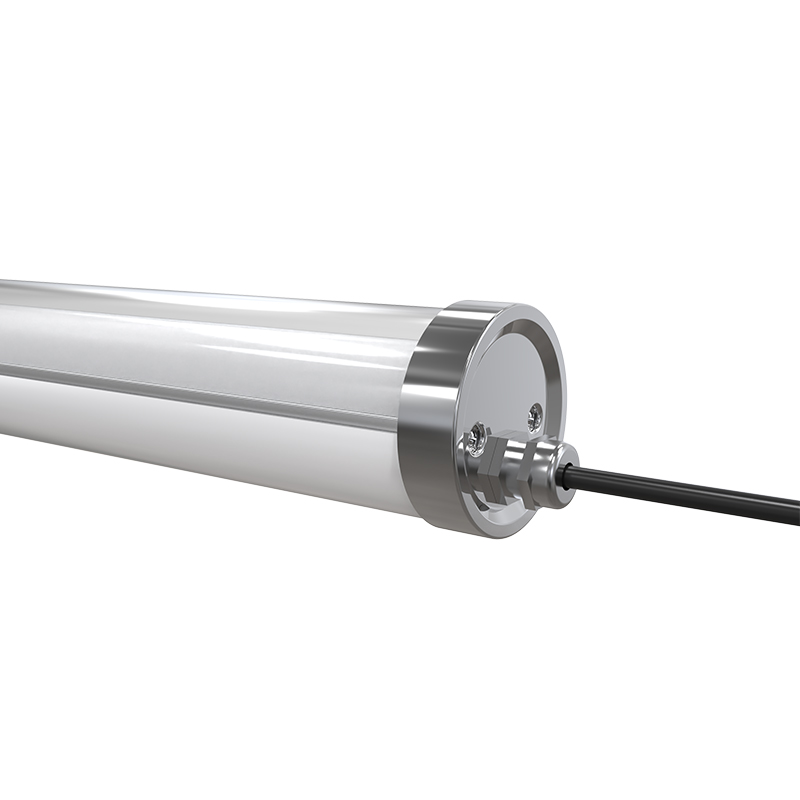

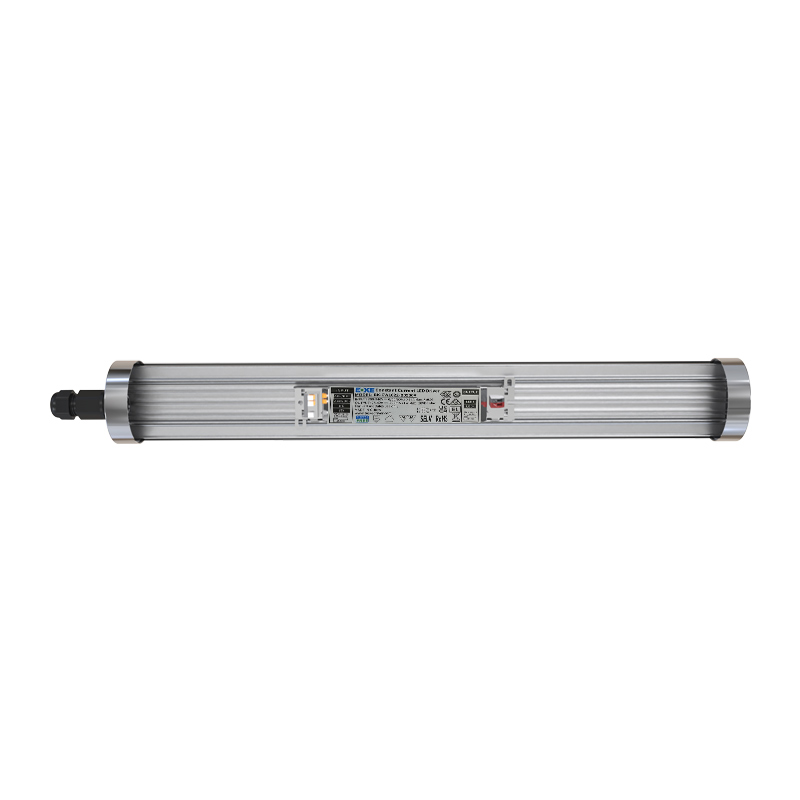

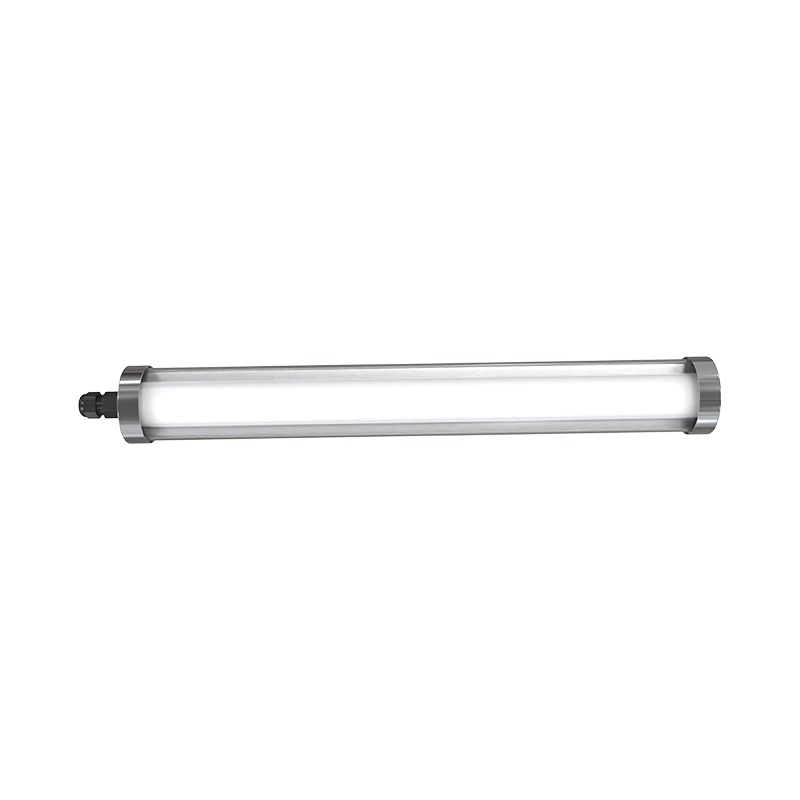

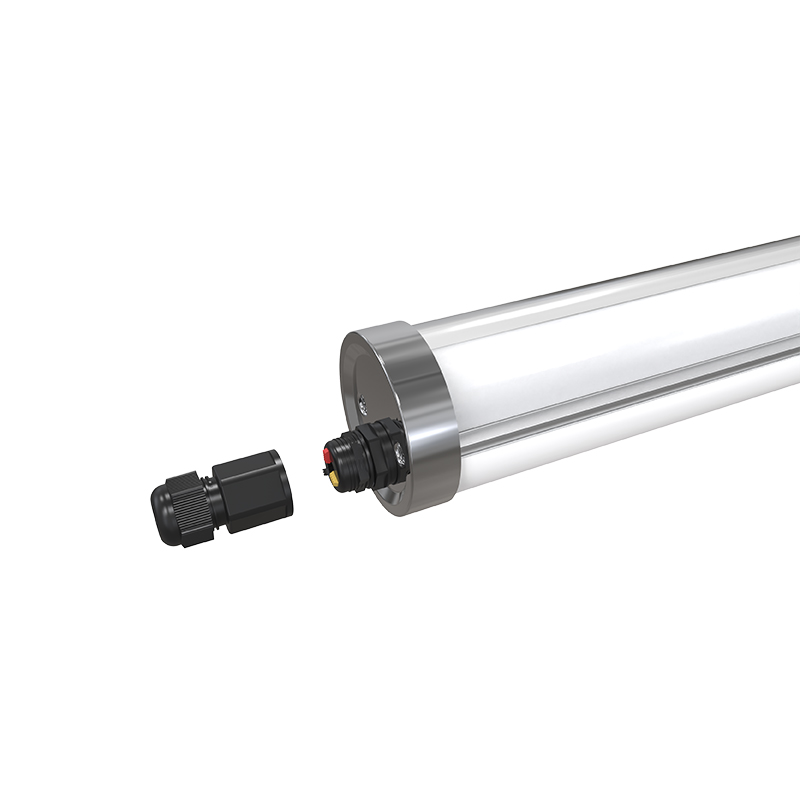

    High Borosilicate Glass Tube LED Tri-Proof Light
    Share this page
    US $21.85 - US $247.00
    US $23.00 - US $260.00
    Production Lead Time:
    25-30 day(s)
    Shipping Method:
    EXW
    Brand:
    TUBU
    Customised:
    Yes
    Beam Angle:
    120°C
    CCT:
    3000K/4000K/5000K/6000K
    Description
    Contact Supplier
    Description

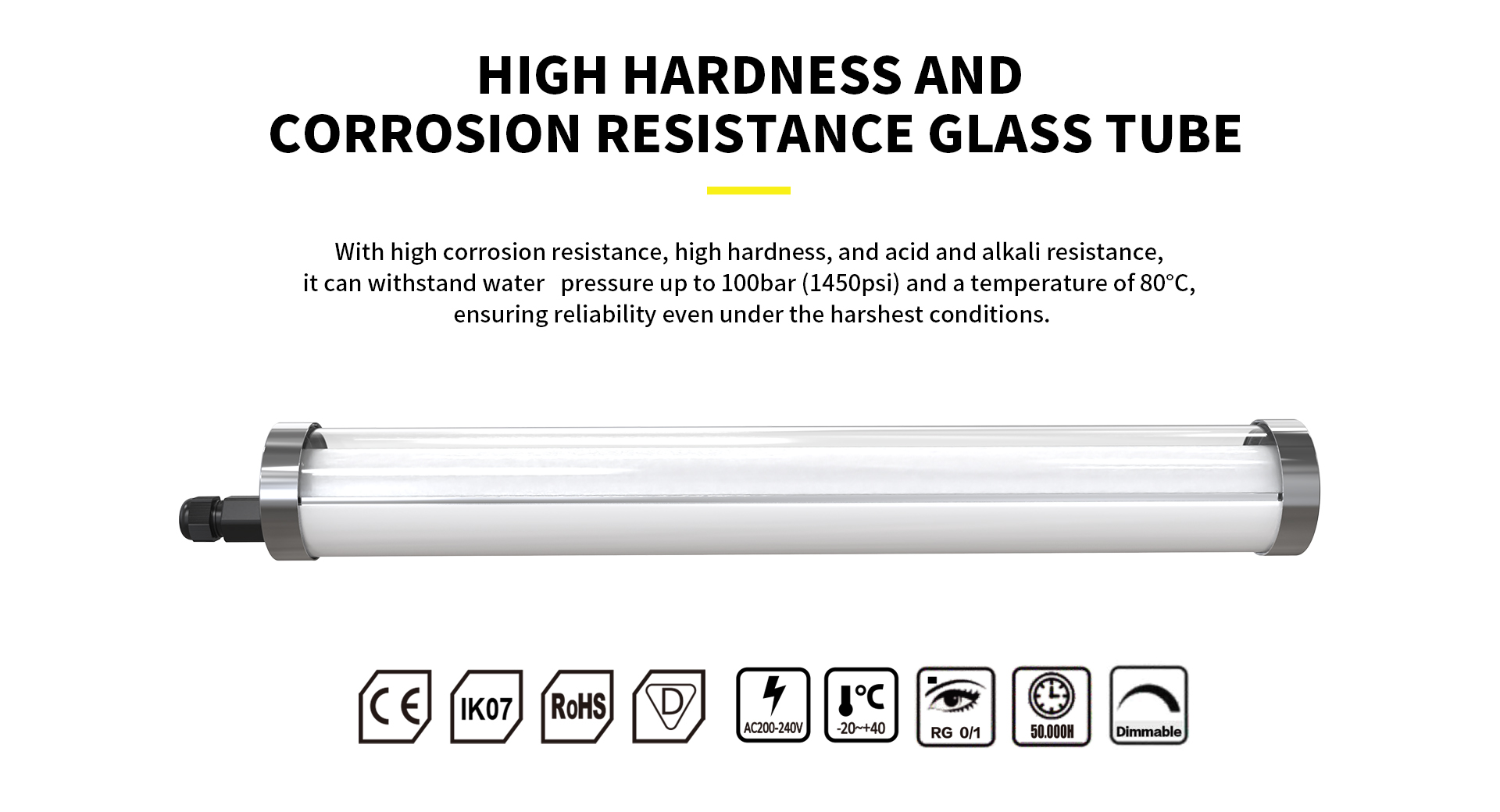

    The borosilicate glass tube LED tri-proof lights have IP67, IP69K, and IK07 ratings, offering unmatched protection against dust, water, and mechanical shocks. Made of high borosilicate material, it has excellent corrosion resistance, high hardness, acid, and alkali resistance, ensuring long service life and durability even under harsh conditions.

    One of the outstanding features of TUBU's tri-proof lights is their ability to withstand water pressures up to 100 bar (1450 psi) and temperatures up to 80°C. This means it can easily withstand harsh environments while maintaining peak performance. The borosilicate glass used in tri-proof light has a low coefficient of thermal expansion, making it highly resistant to sudden temperature changes. The instantaneous temperature difference ranges from -50°C to 150°C (sudden temperature change within 200°C), minimizing the risk of bursting and giving you peace of mind in any situation.

    Features
    • IP67 & IP69K &IK07

    •  Material High boron silicon

    •  High corrosion resistance、 high hardness、acid and alkali resistant

    •  Against water pressure of 100bar(1450psi) and temperature of 80℃

    •  High borosilicate glass has a very low coefficient of thermal expansion and high-temperature resistance. The instantaneous temperature difference is -50°C to 150°C (under a sudden temperature change within 200°C), and it is not easy to burst.

    • Reach food grade standard

    •  System efficiency up to 130lm/W & 150lm/W

    •  High CRI >80

    •  Environmentally friendly, no mercury, No UV, No IR

    •  Wide beam angle 120°

    •  Energy Efficiency Grade: C+

    •  Quick Start instant 100% Luminous flux

    •  5Year Warranty on complete fixture. (LEDs, Driver, & Housing)

    •  Certificate: CE, RoHS Certified

    •  Surface Mount or Suspension Mount

    • Chemical resistance

    Tech Specs:
    Product Code产品代码TBL9P2F-20WTBL9P4F-40WTBL9P5F-50WTBL9P5F-60W
    Power功率20W40W50W60W
    Input Voltage输入电压200-240VAC/100-277VAC (50/60HZ)
    Input Current输入电流0.09A@220VAC0.19A@220VAC0.23A@220VAC0.28A@220VAC
    PF功率因数0.90@220VAC
    Dimming Option调光方式0-10V/Dali
    CCT色温3000K/4000K/5000K/6000K
    Ra > 80显指Luminous Flux2600Lm±5%5200Lm±5%6500Lm±5%7800Lm±5%

    Efficiency130Lm/W±5%
    Ra > 80显指Luminous Flux3000Lm/W±5%6000Lm/W±5%7500Lm/W±5%9000Lm±5%

    Efficiency150Lm/W±5%
    LED Brand灯珠品牌Lumileds/Hongli 2835
    Beam Angle发光角度120°
    Operation Temp工作温度-20C~+40C
    Storage Temp存储温度-20C~+60C
    Life Span寿命Ta 40C  L70>54000Hours
    IP ClassIP67&IP69K
    IK Classglass IK07
    CertificateCE, RoHs, CB, IK07, IP69K
    Lamp Body Color灯体颜色Glass transparent & 304/316 Stainless Steel End Caps
    Product Size (mm)产品尺寸Ø75*552Ø75*1152Ø75*1452Ø75*1452
    Packing Size (mm)外箱尺寸730*345*2401330*345*2401630*345*2401630*345*240
    Quantity/carton装箱数量9PCS6PCS6PCS6PCS
    Gross weight (kg) ±0.3重量(预估)16182828
    Installation mode安装方式Surface Mount/Suspension Mount
