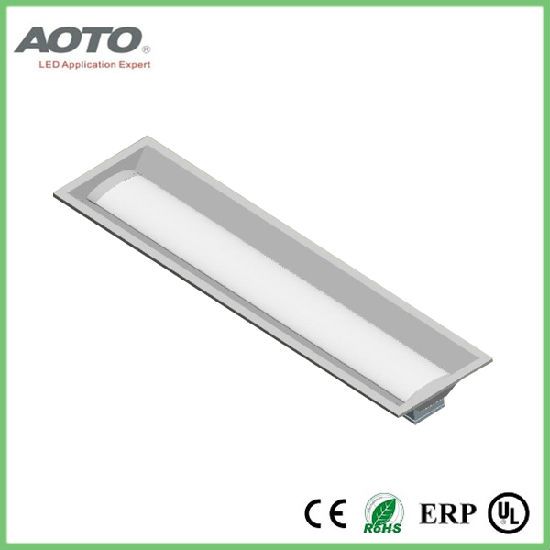

High Brightness 100lm/w LED Troffer
Production Lead Time:
10 day(s)
Model No.:
AT-DPL-S0312S5-040
Brand:
AOTO
Size:
595*595*70MM
Type of Payment:
T/T, LC, Western Union
Minimum Order Quantity:
100
Voltage(V):
100-240V
Certification:
CE, EMC, LVD, RoHS
Wattage(W):
40W
Warranty:
3 year
Light Source:
LED
Body Material:
Aluminum
Is Dimmable:
Yes
Power Source:
external driver
Install Style:
recessed, suspended
Use:
commercial lighting
Description
Contact Supplier
Description
Characters:
★ The thickness is 70mm, back-lighting.
★ Optimum light uniformity and high color homogeneity
★ LED Source: high brigntness SMD 2835
★ Luminous efficiency: 100lm/W
★ Beam angle: 120dg
★ Lifespan: 50000hrs
★ Installation: Embeded, Suspended
★ Standards: CE, RoHS approved
★ Heat dissipation: Aluminum PCB ensure excellent heat dissipation.
★ Optional dimming: Infrared,0-10v,DALI.
Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.
Item No. AT-DPL-S0312S5-040
Electrical Paremeters: Power 40W
Input Voltage AC100-240V (50/60Hz)
LED style 432pcs SMD 2835
output current 1000mA
output voltage 36V
Power Factor ﹥0.9
Opticall Paremeters: Luminous output 3800lm@3000K, 4000lm@4000K, 4000lm@6000K
Color Temp (CCT) 3000K/4000K/6000K
Color Rendering ﹥80
Beam Angle 120dg
Uniformity ﹥90%
Physical Paramete:
r Material Iron +（Optical）PC
Lighting method Back-lit
Power supply External driver (included)
Operation Temperature -20°C ~ +45°C
Storage Temperature -25°C ~ +55°C
Protect Level IP20
Certificate CE, RoHS
★ The thickness is 70mm, back-lighting.
★ Optimum light uniformity and high color homogeneity
★ LED Source: high brigntness SMD 2835
★ Luminous efficiency: 100lm/W
★ Beam angle: 120dg
★ Lifespan: 50000hrs
★ Installation: Embeded, Suspended
★ Standards: CE, RoHS approved
★ Heat dissipation: Aluminum PCB ensure excellent heat dissipation.
★ Optional dimming: Infrared,0-10v,DALI.
Application:
1. Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport.
2. Office lighting: Conference, Factories, offices.
3. Institution Buildings: schools,hospitals, pharmacy.
Item No. AT-DPL-S0312S5-040
Electrical Paremeters: Power 40W
Input Voltage AC100-240V (50/60Hz)
LED style 432pcs SMD 2835
output current 1000mA
output voltage 36V
Power Factor ﹥0.9
Opticall Paremeters: Luminous output 3800lm@3000K, 4000lm@4000K, 4000lm@6000K
Color Temp (CCT) 3000K/4000K/6000K
Color Rendering ﹥80
Beam Angle 120dg
Uniformity ﹥90%
Physical Paramete:
r Material Iron +（Optical）PC
Lighting method Back-lit
Power supply External driver (included)
Operation Temperature -20°C ~ +45°C
Storage Temperature -25°C ~ +55°C
Protect Level IP20
Certificate CE, RoHS
