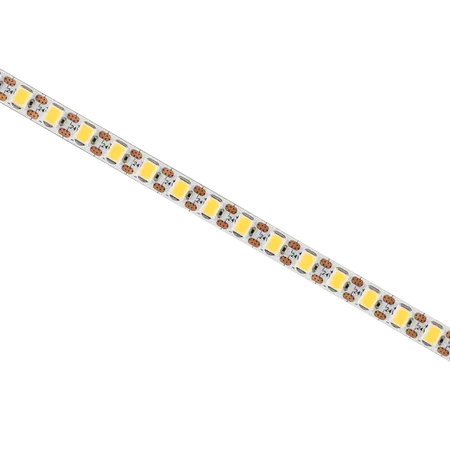

High-Efficacy Free-Cutting Series - 140lm/W 24V 160LED/M - 9682
Part No. :
GL-N2835XX-24-CV-160-9682
Dimension:
L5000*W5*H1.5mm [L197*W0.2*H0.06in.]
Increment:
6.25mm [0.25in.] (The minimum length for use is 6.25mm[0.25in.] with 1 LED)
LED Type:
SMD 2835
LED Qty:
160LED/M [48LED/ft.]
Voltage:
24VDC
Power:
9.6W/M [2.9W/ft.]
CCT/Wavelength:
2700/3000/3500/4000/5000/6500K (3 step in one bin)
Brightness@CRI90&4000K:
1344lm/M [410lm/ft.]
Light Efficiency@CRI90&4000K:
140lm/W
Beam Angle:
120°
IP Rating:
IP20/IP65 [Dry/Wet]
Description
Contact Supplier
Description
Features
-
-
1. Field cuttable per one LED to be any length for precise assembly.
2. High efficacy up to 140lm/W in CRI90 with energy efficiency class in E.
3. Universal PCB width for perfect installation with aluminum profile.
4. High density of LED array for dot-free linear lighting performance.
Details
-
-
Application
Indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.
