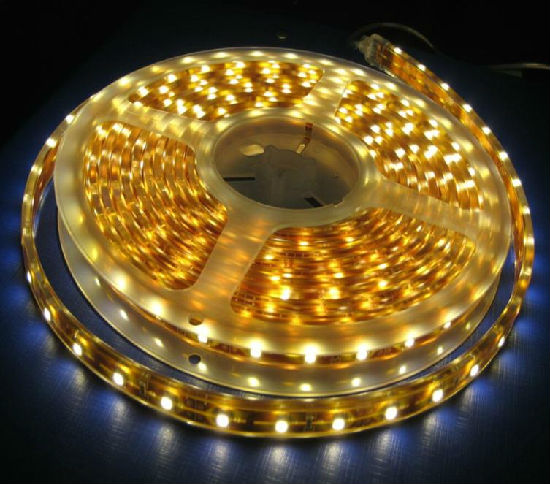

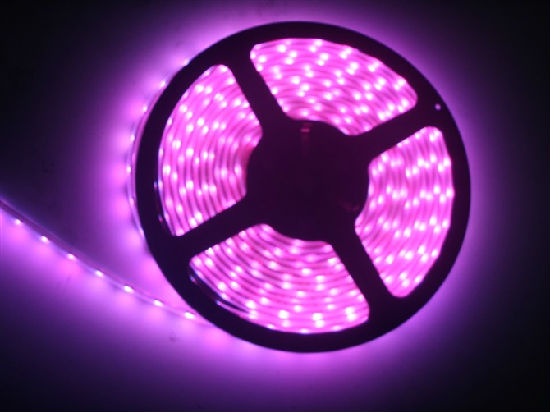

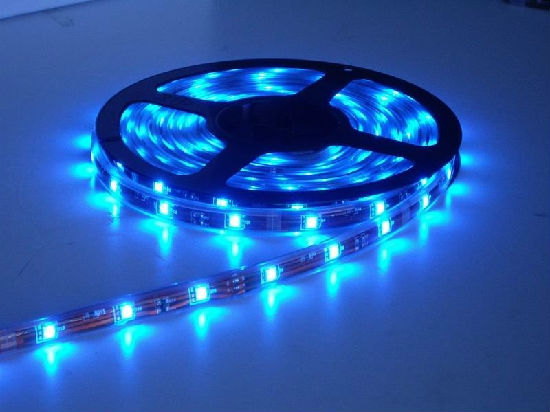

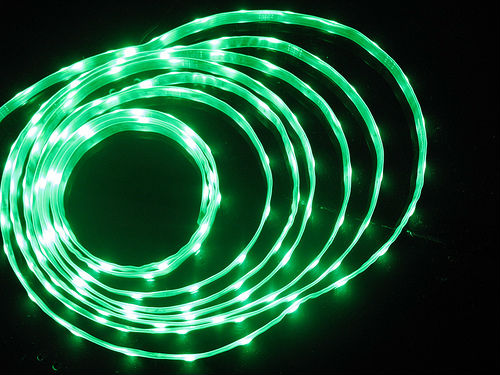

High Power Waterproof LED Strip

Model No.:

YLL-F1210Y30-50

Brand:

OEM/ODM

Port:

Shenzhen, Hong Kong

Type of Payment:

T/T, L/C, Western Union

Minimum Order Quantity:

1 roll

Description

Contact Supplier

2 years warranty.
Only 5% attenuation after 1000h.
LED type: SMD 5050-60LEDs-IP67.
Waterproof size: (L) 1000mm x (W) 10mm.
Non waterproof size: (L) 1000mm x (W) 8mm.
LED qty per meter 60pcs.
Working voltage: DC12V.
Wattage per meter: 7.7W/m.
Current per meter: 0.6A.
Emitting color: R/Y/B/G/W/WWRGB.
Choice PCB color: black, white, copper.
Operating temperature: -20°C~+60°C.
Storage temperature: -20°C~+80°C.
Light intensity for each LED: cool white 1700-2000mcd.
Light output for 5 meters: cool white 240-420 lumens.
Packing: 5 meters per reel.

Technology data:

Available in different lengths 0.5m or 1m.
Each unit of 3 LEDs can be cut off at regular segments without damaging the rest ribbon.
Harmonious light with 120 degree wide viewing angle.
Choice PCB color: copper PCB, white PCB, black PCB three kinds color.

Feature:

Available in full range of single-color: red, yellow, blue, green, white, pink, purple, RGB full-color.
Easy to install by the 3m tape on the PCB back.
Low power consumption.
High intensity and stability.
Unique circuit design with strong resistance against static electricity ensures the stability of the strips for long lifespan guaranteed.
Easy connection with snap-in connectors.
Solid-state, high shock and vibration resistant.
No RF interference.
Long life 100,000 +hours.
Certifications: RoHS and CE.
