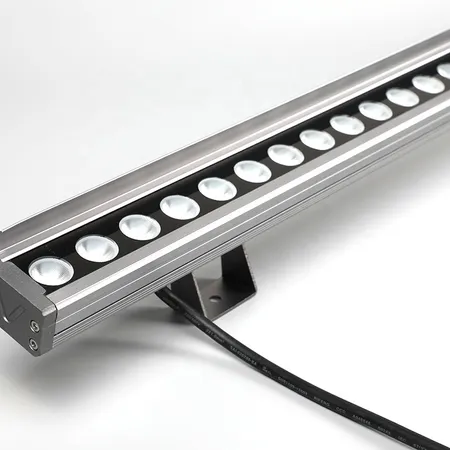

    High Quality LED Wall washer
    Share this page
    US $10.00 - US $100.00
    Production Lead Time:
    18 to 25 day(s)
    Shipping Method:
    Ex-works
    Model No.:
    LWW-3601-3600-BH
    Power :
    36 Watts
    Beam Angle:
    12°/24°/30°/40°/60°/Oval lens 10*30°/15*40°
    Material:
    Anodizing CNC Aluminum 6063 Housing
    Description
    Contact Supplier
    Description

    . 36 PCS 1W LED with high lumen and beautiful light output.
    .20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
    .12°/24°/30°/40°/60°/Oval lens 10*30°/15*40°  beam angle as options
    . 2700 lm  luminous flux output
    .IP65 waterproof
    . 3 years warranty
    .8~10 years professional sales and technicians to serve you



    General Data

    Item No.

    LWW-3601-3600-BH

    Power

    36 Watts

    LED type

    36 PCS 1W  LED

    Luminous flux

    2700 lm

    CCT

    2700K,3000K,4000K,6000K

    CRI

    80+

    Beam angle

    12°/24°/30°/40°/60°/Oval lens 10*30°/15*40°

    Dimension

    1000*45*28 mm (Length x Width x Height)

    Cut out

    /

    Net weight

    1.75 kgs

    Warranty

    3 years

    Certifications

    CE, RoHS

    Electrical Data

    Input voltage

    AC100~265V

    Insulation class

    Class I

    Cable

    2 PCS rubber cables with waterproof connectors,one side male,another side female

    Driver

    Built-in high voltage constant current driver with transformer

    Construction Data

    IP rating

    IP65 Waterproof

    Housing

    Passivated (Anodizing) Aluminum

    Protection finishing

    20~25μm thickness anodized film for housing .Dark grey

    Trim

    Aluminum + glass

    Glass

    Step tempered Glass.T=4mm.

    Loading capacity

    220 kgs

    Cable Gland

    PG  IP65

    Gasket

    PMQ silicone gasket seal

    Accessories

    Bracket

    Aluminum bracket

    Barn door

    Without barn door as standard , and with barn door as options
