High Sensitivity OEM Camera Modules Full HD 1080P HDR Auto Exposure
Production Lead Time:
7 day(s)
Shipping Method:
DHL/FedEx
Customised:
Yes
Model No.:
SNS-2MP-PS5268-M1
Resolution:
1920×1080
Size:
Customizable
Brand:
Sinoseen
Description
Contact Supplier
Description

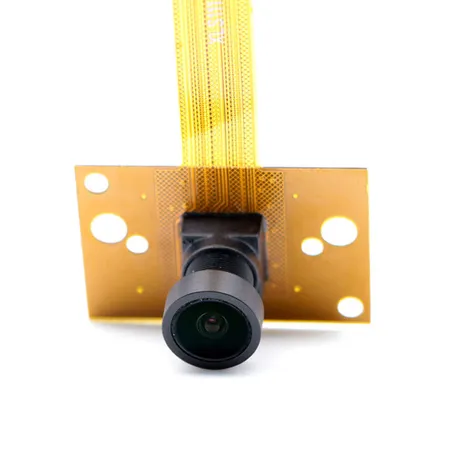

The 2MP MIPI camera module features the PS5268 sensor from PrimeSensor, offering Full HD 1080p resolution with FinePixel™ and HDR technology for superior image quality. It supports 14-bit linear or 12-bit tone-mapped output via MIPI CSI-2, ensuring low power consumption. With I2C control, on-chip HDR synthesis, and black level correction, it delivers high-performance, cost-effective solutions for HDR applications like surveillance and automotive imaging.
Module No | SNS-2MP-PS5268-M1 |
Pixel Size | 3.0μm x 3.0μm |
Effective Pixels | 1928H×1088H |
Video output | Raw Bayer10bit/8bit |
Active Array Size Video Rate | 1080p: 1920x1080 @ 60fps 1080p: 1920x1080 HDR-LTM @30fps |
Image Sensor | 1/2.7" |
Sensor Type | PrimeSensor PS5268 |
Lens view | FOV100°(optional),F/N(optional) |
TV Distortion | <1% |
AEC | Support |
AEB | Support |
AGC | Support |
Operating voltage | Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
Operating temperature | -30～85℃ |
Storage temperature | -20～70℃ |
Dimensions | Customizable |
*2MP Full HD Resolution: Delivers 1920x1080 (1080p) high-quality imaging.
*FinePixel™ & HDR Technology: Ensures excellent image quality and single-shot high dynamic range.
*Low Power Consumption: Highly efficient with MIPI CSI-2 interface.
*Flexible Output: Supports 14-bit linear or 12-bit tone-mapped raw data.
*I2C Control: Programmable exposure for varying luminance conditions.
*On-Chip HDR Synthesis: Enables high-performance, cost-effective HDR applications.
