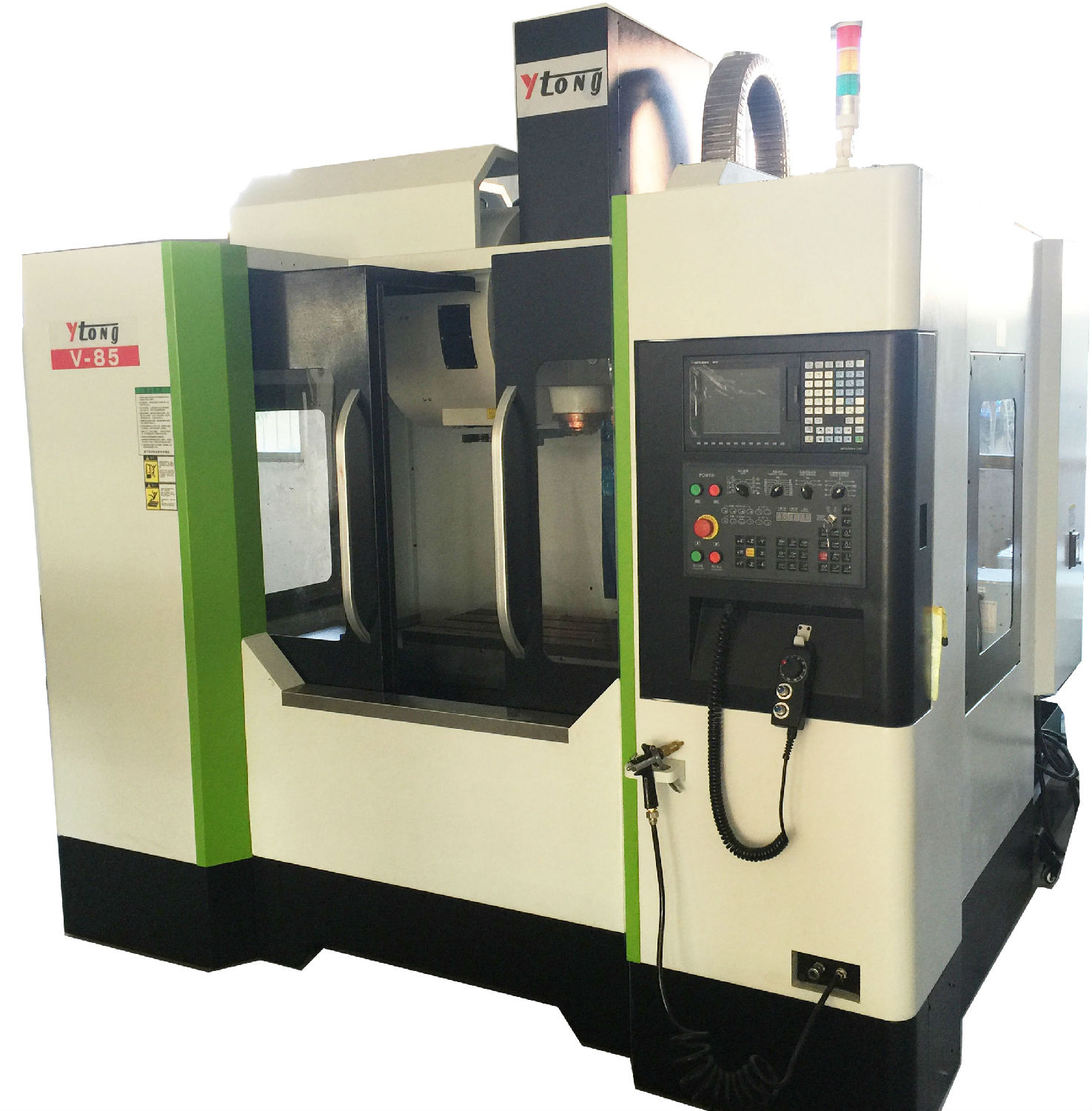

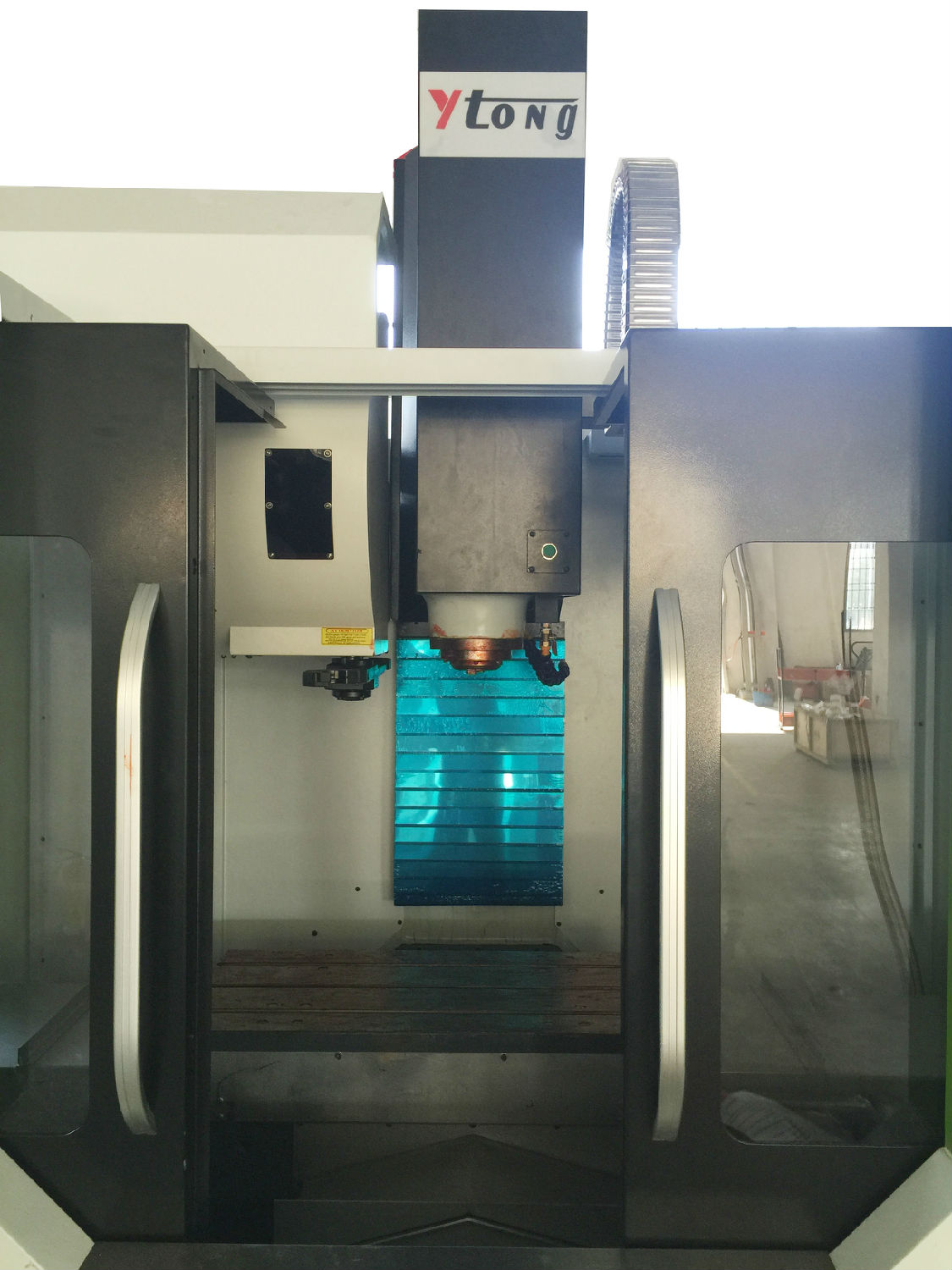

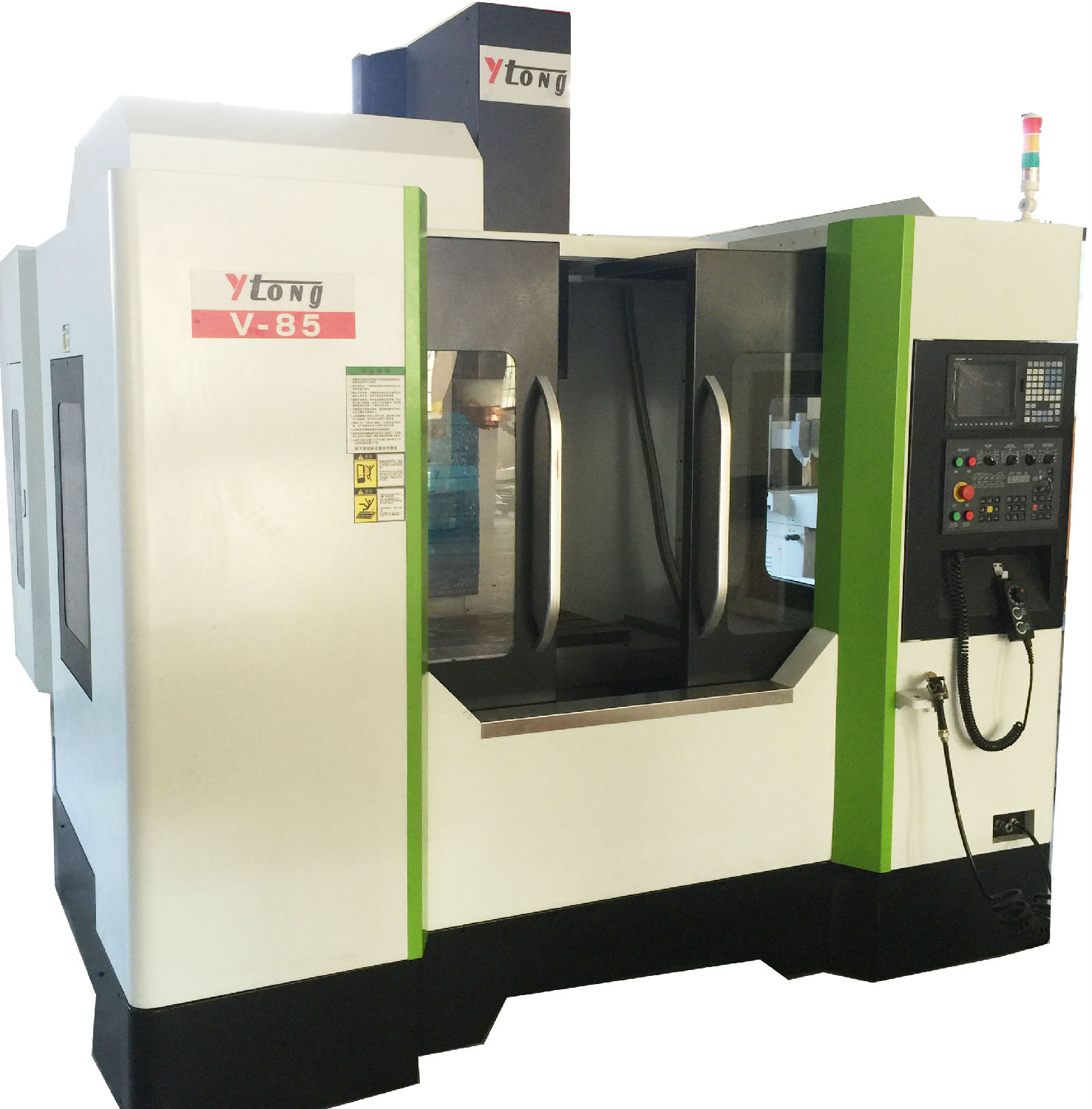

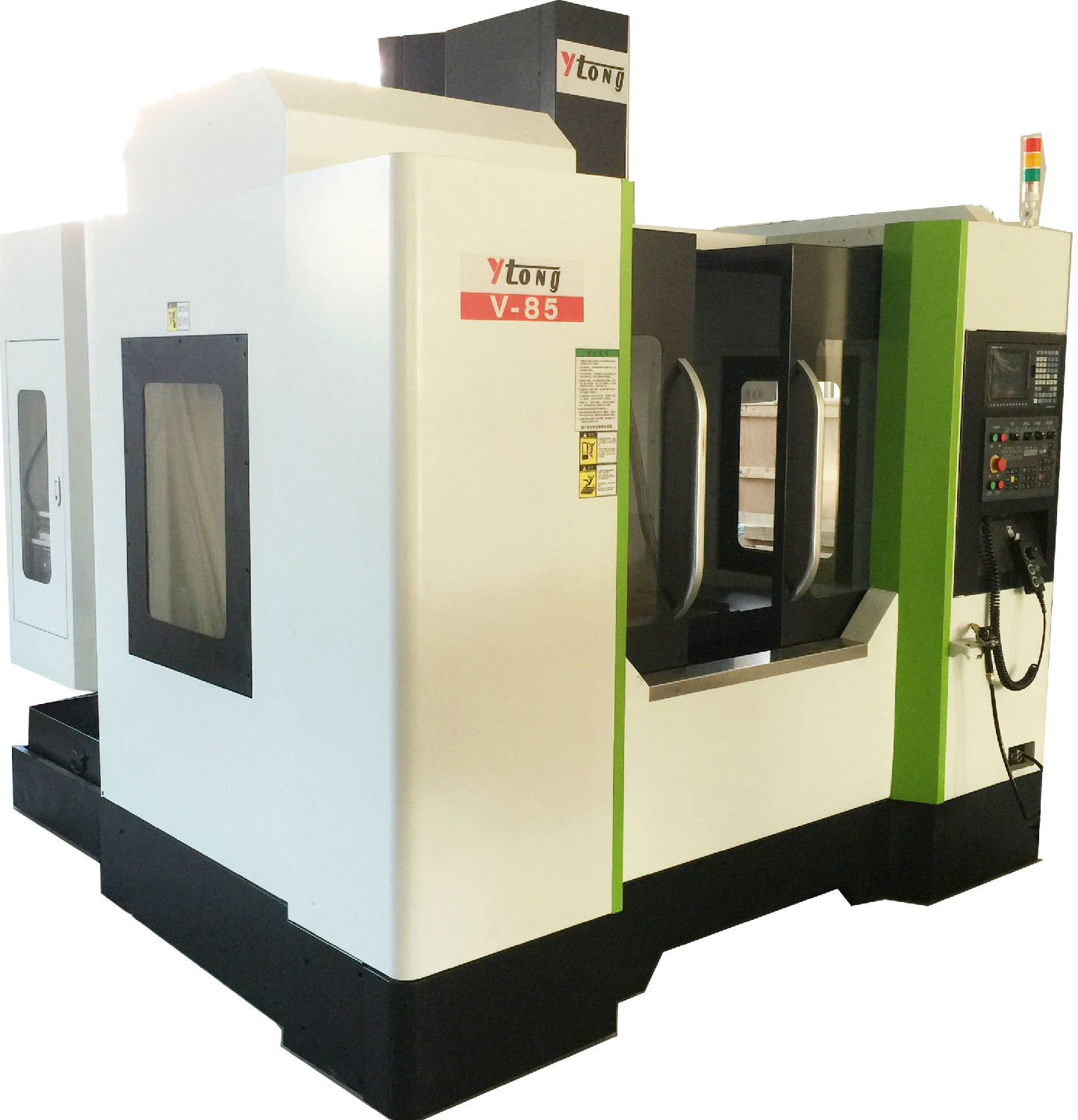

High Speed CNC Milling Machine Center
Model No.:
V85
Brand:
Yitong
Size:
(L x W x H) (mm) 2,450 x 2,180 x 2,650
Customised:
Yes
Type:
Vertical
Description
Contact Supplier
Description
- Table size W x Y (mm) 450x900.
- Travel longitude(X) (mm): 800.
- Travel crossward(Y) (mm): 500.
- Travel vertical (Z) (mm): 500.
- Distance between spindle and table (mm): 170-670(120-620).
- Spindle rotation speed (rpm): 10000(direct connection 12000/15000).
- Spindle taper: BT40-140 short nose spindle.
- Spindle motor (kw): 7.5kw.
- Work table t slot (no.-size x pitch) (mm): 3-18x130.
- ATC type: arm type tool magazine with 24T tools.
- Time of changing tool (T-T): 2.5.
- Rapid longitude (X) (m/min): 48.
- Rapid crossward (Y) (m/min): 48.
- Rapid vertical (Z) (m/min): 48.
- X Y Z motor (NM): 2012/12/12.
- Max cutting feed (m/min): 15.
- Positioning accuracy (m/min): 0.006.
- Minimum set moving unit (mm): 0.001.
- Net weight (KG): 3800.
- Maximum load of table (KG): 500.
- Remark: two size options for distance between spindles to work table.
- Difference control system with difference spindle power.
- Stock available: 100.
- The best choice of high sped processing of parts
- Key parts with high quality are from Japan and Taiwan to assure high quality level and perfect performance .
- Compact structure design to save space to improve using ratio of working place.
- Low inertia design to highly enhance dynamic response feature, especially fit high speed and high efficiency of parts processing.
- Two options of spindle height, for flexibly choosing according to customer's process request.
- No heavy balanced hammer design to improve response of Z axis to achieve the best processing result.
- Two options of spindle connection; direct connection and belt connection.
- High capacity of water tank and cyclic spraying spindle to achieve the best washing-chip and cooling effect.
- Oil water skimmer to prevent cooling liquid getting deterioration.
- Standard accessories with water gun and air gun for easy cleaning.
- Industrial Highlights
- Machine parts
- Aluminium alloy parts
- Communication parts
