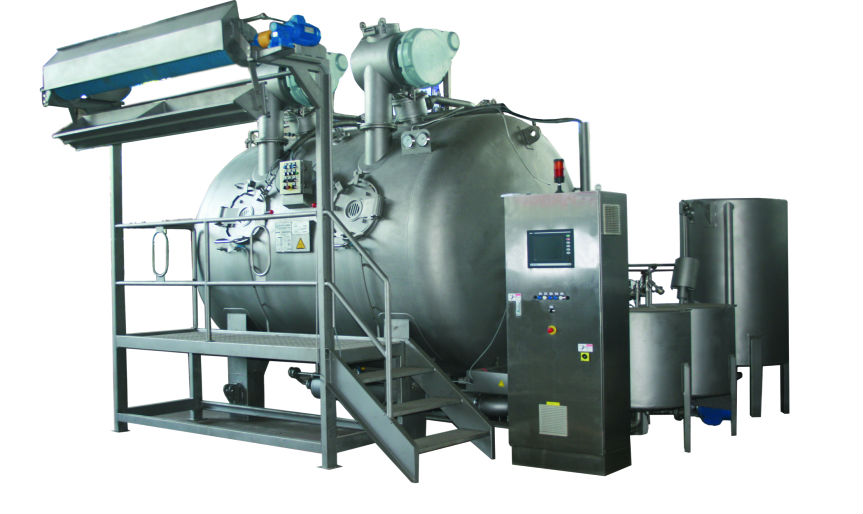

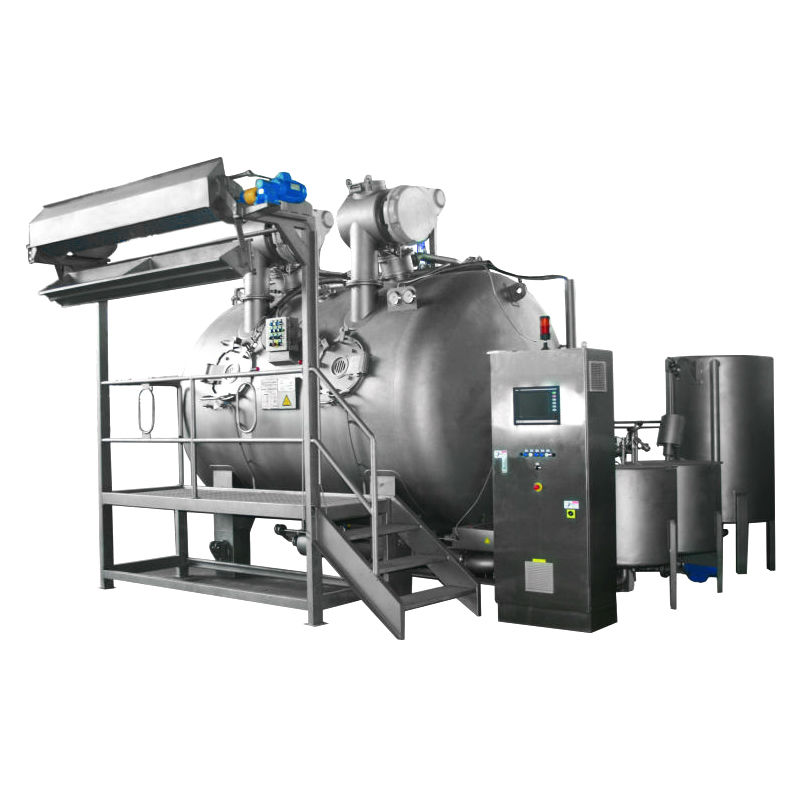

高温低浴比O型染色机GOFX系列 HIGH TEMPERATURE O TYPE FABRIC DYEING MACHINE WITH EXTRA LOW LIQUOR RATIO GOFX

• Main Kier (Horizontal)

1. Each tube with quick locking service door for easy opening and closing.
2. Each tube with flexible/adjustable independent fabric trough at the bottom of the kier, lined with Teflon sheet for smooth fabric transport, eliminating crease marks and lifter tension.

• Circle main pump possess of cavitations erosion can maintain stable pressure and flow under high temperature environment with low liquor ratio.
• Each tube with programmable inverter-controlled internal fabric plaiter, for flexibility in setting parameters according to the fabric type and load.
• Each tube with bi-pyramid type nozzle, suitable for dyeing 200 to 750 grams per square meter fabric weight, knitted or woven (other nozzle sizes available as optional).
• Each tube with entangling alarm system for automatic machine stop and reset device, with seam detector and operation control device, to monitor circulation of fabric and detect fabric ends.
• Equip with automatic filter clearing system and lint digester.
• Indirect heating double dosing tank with dosing pump, mechanical stirring, automatic level control and regularly chemical dosing system.
• Tubular heat-exchangers combined with pipes can increase heating efficiency and balance nozzle pressure, while I/P control heating and cooling.
• Lifter, unloading plaiter and plaiter equipment.
• Programmable fill/drain and level control system
• Main tanks cleaning system.
• Multi-purpose washing system.
• Multi-purpose stock tank with circulation pump, indirect heating system, spray and level control.
• SETEX controller.



• 卧式主缸体带安全保护的快速开关工作门，渐扩式圆环形储布槽，布槽底部铺设铁氟龙片，织物由上而下平滑向前移动，减少折叠和提布张力。
• 带诱导轮的循环主泵，具有良好地预防及耐汽蚀性能，在低浴比高温介质环境下仍保持稳压稳流的高效性能，主泵配备变频控制，适应不同克重布料织物。
• 配置双锥角型中号（M）喷嘴，适用克重200-750g/m2布料，另有3种规格为任选项
• 配布头探测器，堵布停车系统及绞缠自解装置；
• 自动清洁，碎毛过滤器
• 间接升温双料桶，配加料桶，机械搅拌器，自动控制液位，比例式定量加料系统；
• 列管式换热器连分流管，提高热效能及均衡喷嘴压力；
• I/P控制升/降温
• 提布装置（变频控制）
• 全自动进、排水和液位控制系统；
• 主缸洗缸系统
• 多功能洗水系统
• 多功能预备缸配循环泵，间接升温，花洒及液位控制
• 德国SETEX777CE微电脑控制器主控电箱。
