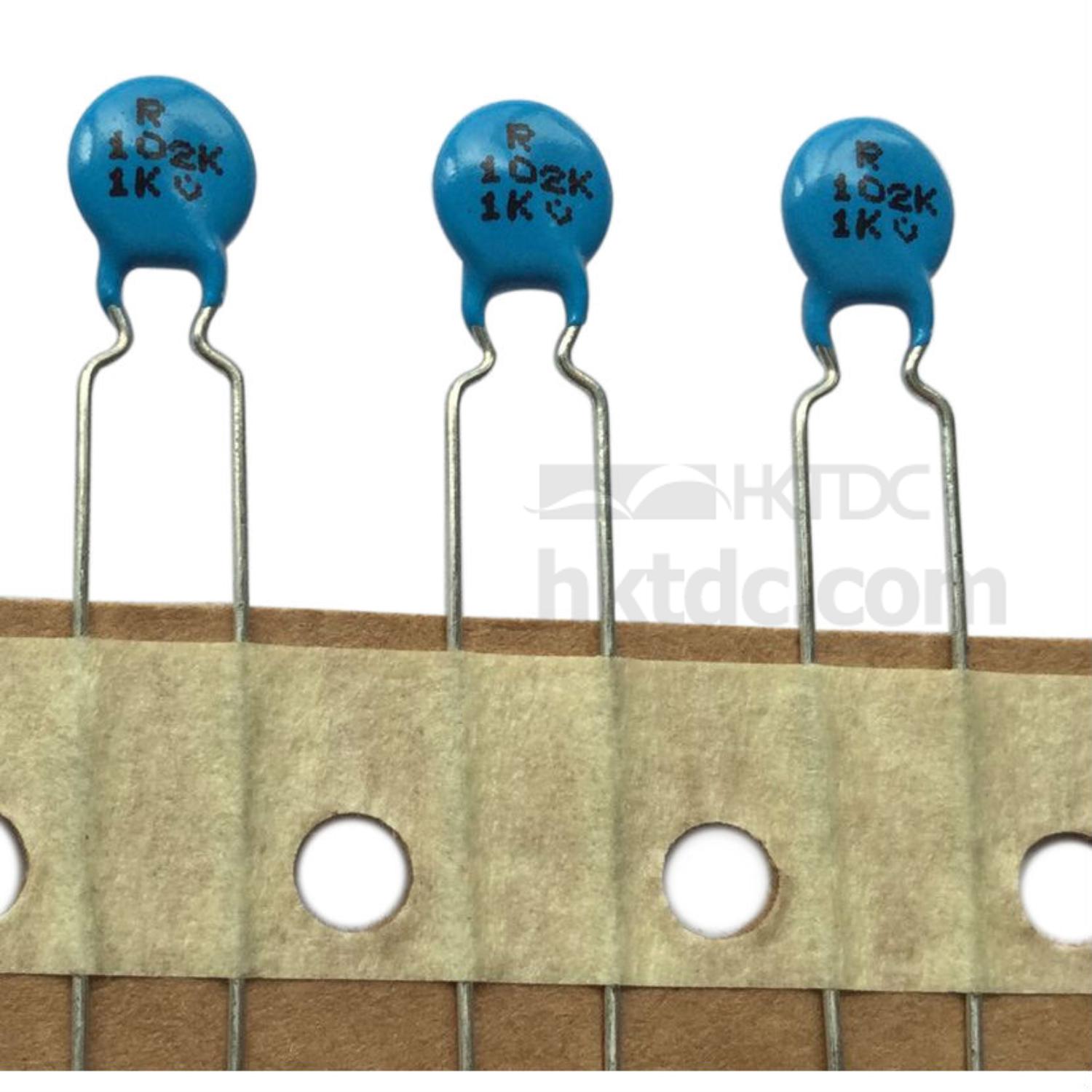

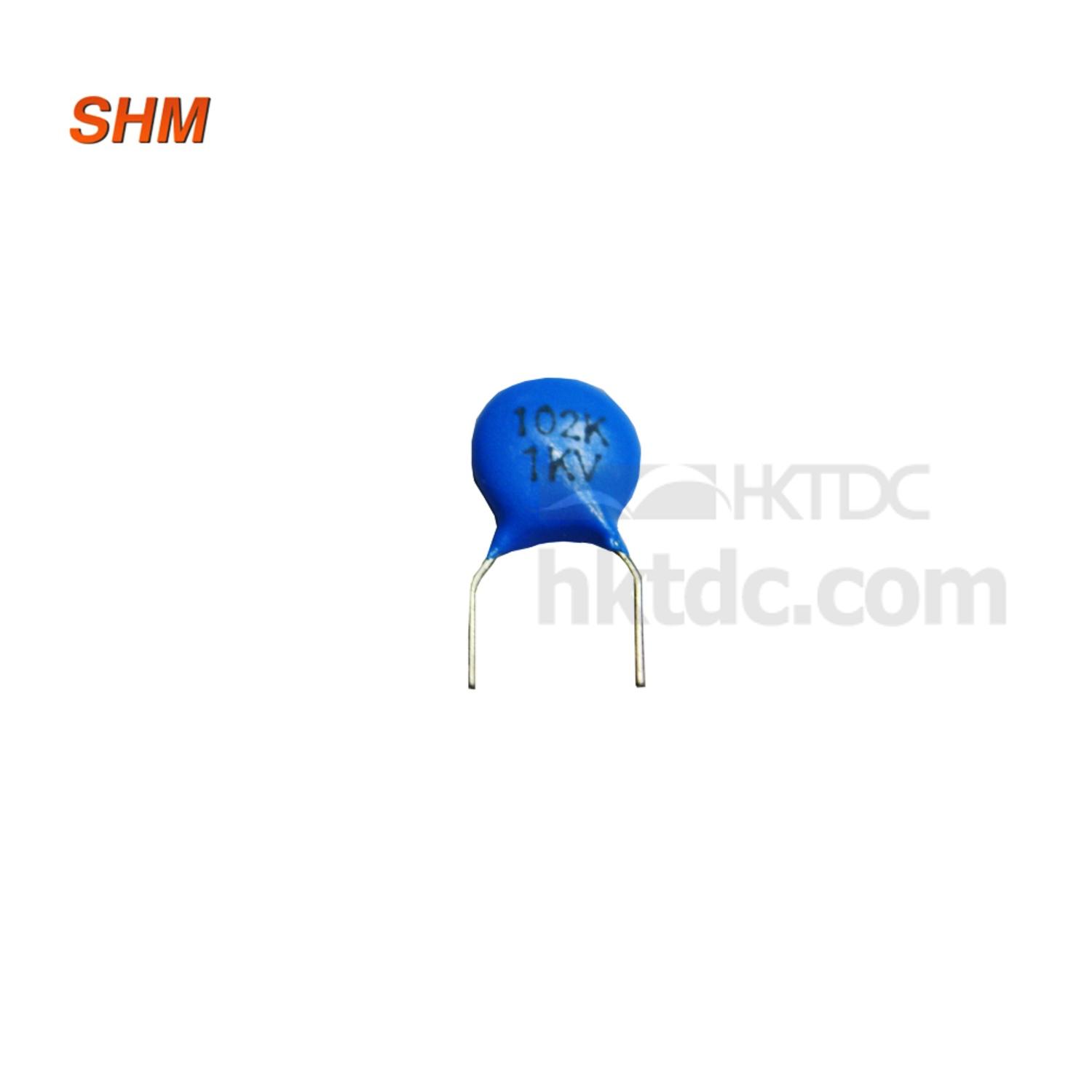

High Voltage Ceramic Disc Capacitor 102K 1KV

Production Lead Time:

7 day(s)

Model No.:

180pF +-5%

Brand:

SHM

Colour:

Blue

Port:

Hong Kong

Minimum Order Quantity:

1,000

Package:

Yes

Customised:

Yes

Rated Voltage:

1 ~ 15KV

Description

Contact Supplier

Operating temperature: -85~125℃ (-25~125℃)
Capacitance and dissipation factor/quality factor testing condition : 25℃, 1Vrms, 1MHz (Class I) 1KHz (Class II)
Dissipation factor / quality factor (Q) : Y5P Y5U Y5V ≦2.0% Y5P (Low dissipation type) ≦0.5%,
SL: CR<30pF, Q≧400+20CR; CR≧30pF, Q≧1000
Rated Voltage: 1 ~ 15KV
Voltage proof: 2UR ; 1.5UR
Insulation resistance (IR) : IR ≧ 10000Mohm (500VDC)
Temperature Characteristic: Y5P, Y5U, Y5V, YR, CO, SL
