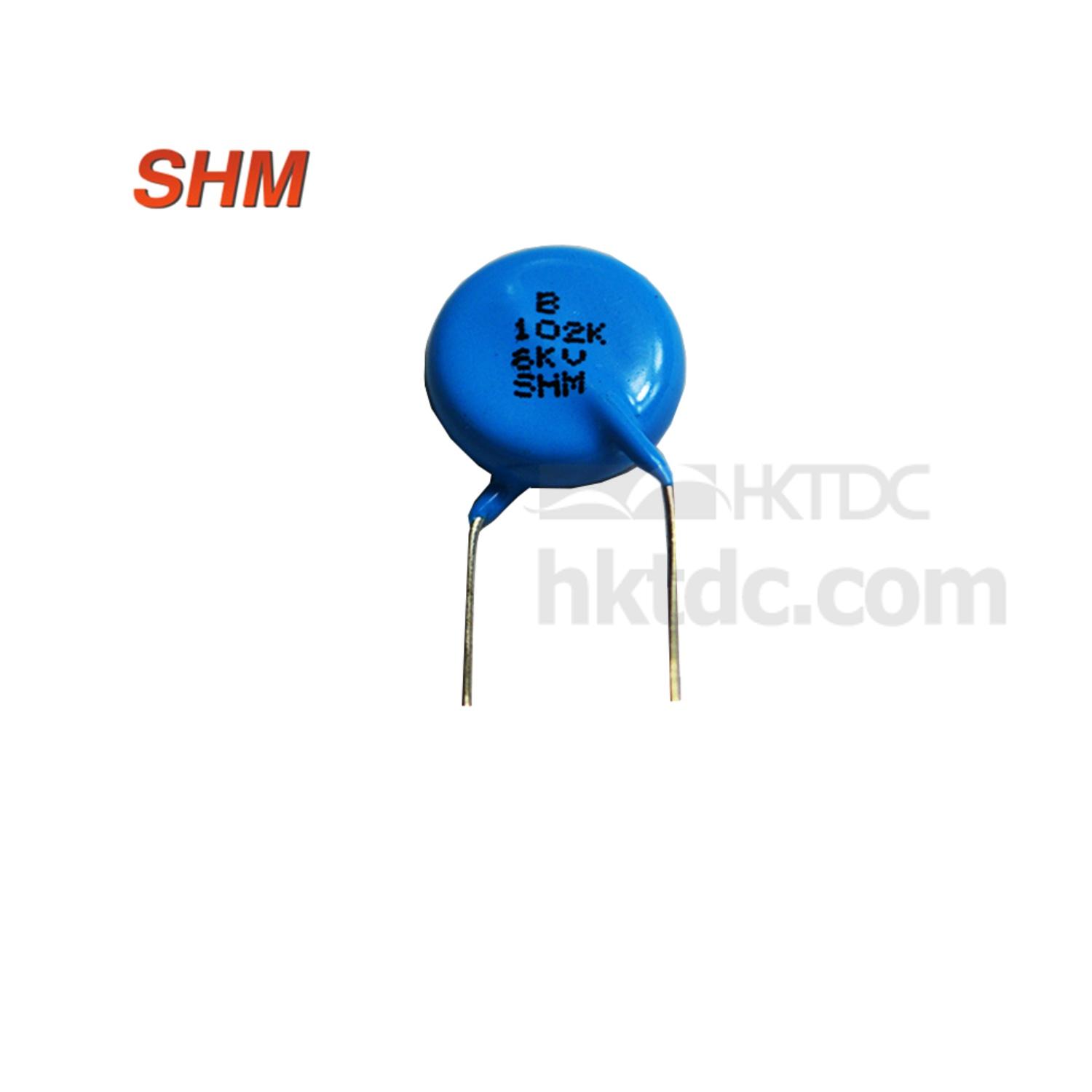

High Voltage Ceramic Disc Capacitor 102K 6KV
Share this page
Production Lead Time:
7 day(s)
Model No.:
180pF +-5%
Brand:
SHM
Colour:
Blue
Port:
Hong Kong
Minimum Order Quantity:
1,000
Package:
Yes
Customised:
Yes
Rated Voltage:
1 ~ 15KV
Description
Contact Supplier
Description
  • Operating temperature: -85~125℃  (-25~125℃)
  • Capacitance and dissipation factor/quality factor testing condition : 25℃, 1Vrms, 1MHz (Class I)  1KHz (Class II)
  • Dissipation factor / quality factor (Q) :  Y5P Y5U Y5V ≦2.0%  Y5P (Low dissipation type) ≦0.5%,
  • SL: CR<30pF, Q≧400+20CR; CR≧30pF, Q≧1000
  • Rated Voltage: 1 ~ 15KV
  • Voltage proof: 2UR ; 1.5UR
  • Insulation resistance (IR) : IR ≧ 10000Mohm (500VDC)
  • Temperature Characteristic: Y5P, Y5U, Y5V, YR, CO, SL
