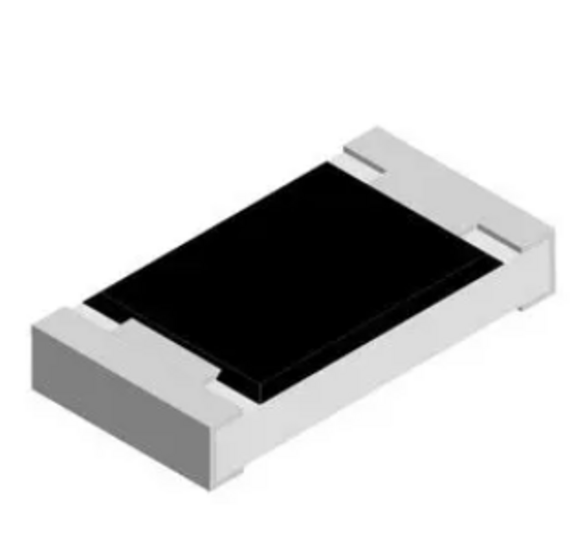

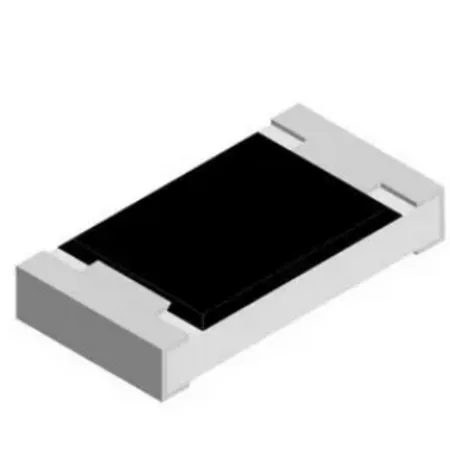

Model No. : CRCW080510K0FKEAHP.

Material : N/A

Purpose : Use for automotive and various fields

Spec : RES,10K,1%,0.33W,0805;R,THICK FILM

Product Width : 1.25mm

Description :

The Vishay CRCW-HP e3 series are pulse proof, high power thick film chip resistors. The CRCW-HP e3 series resistors have pure tin solder contacts on the Ni barrier layer that provides compatibility with the reflow soldering process.

Excellent pulse load capability

Enhanced power rating

Double side printed resistor element

Protective overglaze

AEC-Q200 qualified, rev. C compliant

Available in ±0.5%, ±1% and ± 5% tolerance

Zero ohm jumper are available for all sizes with very high current

Power rating is double than the D/CRCW e3 series

Superior ant surge and pulse characteristics compared to D/CRCW e3 series

Resistance : 10kohm

Power Rating : 500mW

Resistor Technology : Thick Film

Product Range : CRCW-HP e3 Series

Voltage Rating : 150V

Operating Temperature Max : 155°C

SVHC : No SVHC (27-Jun-2024)

Resistance Tolerance : ± 1%

Resistor Case / Package : 0805 [2012 Metric]

Resistor Type : Pulse Proof, High Power

Temperature Coefficient : ± 100ppm/K

Product Length : 2mm

Operating Temperature Min : -55°C

Qualification : AEC-Q200

More details : please refer to catalogues

MOQ : 10pcs
