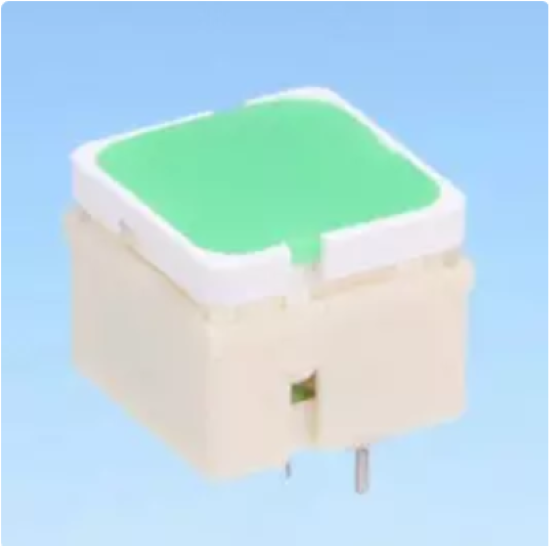

High-profile Illuminated Key Switches

LT5

Salecom tact switches are high brightness LED, dimension: 15 x 15mm and 19 x 19mm, illumination with colored and transparent cover, high temperature materials (UL94V0) option.

Features

• Contact Rating: 100mA max, 42 VAC/DC
• Mechanical life: 1,000,000 cycles
• Contact Resistance: 100mΩ max. (initial)
• Insulation Resistance: 1,000MΩ min.

Application

• Medical equipment
• Automotive
• Industrial control
• Audio control panel
• Lighting
