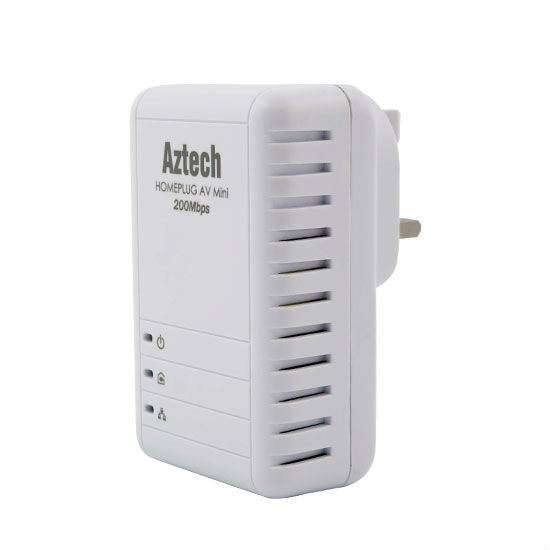

HomePlug AV 200Mbps Ethernet Adapter
Model No. HL113E

Aztech HL113E joins Aztech's line of eco-friendly HomePlugs with the lowest power consumption of 2W. The cable-free solution empowers users to extend Internet access through powerline to connect to devices such as HD TVs, PC, Mac, Game consoles and media players. The slim HomePlug seamlessly integrates into any home environment without the sight of messy wiring or cabling.

Standards

• IEEE 1901/HomePlug AV compliant
• Co-existence with HomePlug 1.0 Nodes
• Compliant to EuP requirements
• IEEE 802.3 10/ 100 Ethernet
• IEEE 802.3az support

Frequency Band

• 2MHz to 30MHz band

Modulation Support

• Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO modulation schemes

Data Transfer Rate

• UP to 200Mbps over powerline

Frequency Band

• 2MHz to 30MHz band

Platform Support

• OS Independent with TCP/IP protocol installed

Security

• 128-bit AES link encryption with key management

Hardware

• Qualcomm Atheros QC6410 chipset

LED Indicators

• Power, powerline and Ethernet LED indicators for displaying the current mode.

External Connectors

• 1 x Electrical power plugs
• 1 x RJ45 for 10/100 Ethernet

Measurements

• Dimension: 85(H) x 53(W) x 30(D)mm
• Weight: 90g

Power Consumption

• 2 Watt (230Vac)

Power Supply

• Switch mode 100V-240V supply for Europe/UK/US/AUS plugs

Temperature

• Operating: 0°C to 40°C
• Non-operating: -25°C to 70°C

Humidity

• Operating: 30% to 80% relative humidity
• Non-operating: 30% to 95% relative humidity

Operating Systems

• Windows 98SE/ME/2000/XP 32bit/Vista 32bit, Window 7(32/64-bit)
