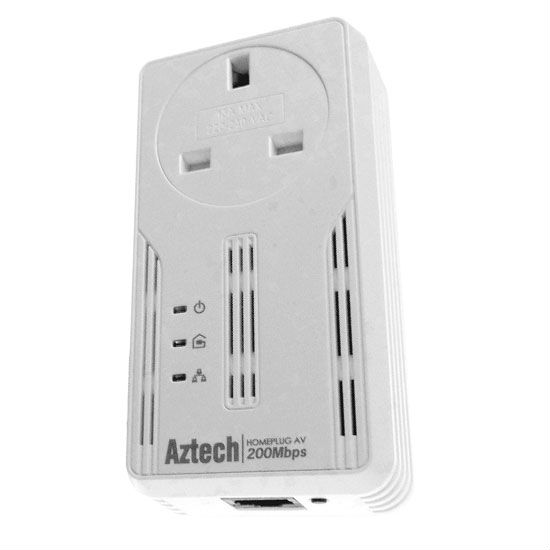

HomePlug AV 200Mbps with Pass Through
Model No.: HL113EP

This power-line adapter is capable of delivering wired data transfer rates of up to 200Mbps. It also comes with an encryption key for protecting the network from unauthorized wire-tapping. Plug this adapter directly into a power outlet and instantly transforms your home's existing electrical circuit into a stable wired network.

Standards

• IEEE 1901/HomePlug AV compliant
• Co-existence with HomePlug 1.0 nodes
• Compliant to EuP requirements
• IEEE 802.3 10/ 100 Ethernet
• IEEE 802.3az support

Data Transfer Rate

• UP to 200Mbps over powerline

Modulation Support

• Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO modulation schemes

Frequency Band

• 2MHz to 30MHz band

Quality of Service

• Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
• Integrated Quality of Service (QoS) Enhancements
• Hardware pocket classifiers for ToS, CoS and IP port number
• Supports IGMP managed multicast session

Diagnostic and Management Interface

• HomePlug AV generic and vendor specific Management Message Entries (MME)

Security

• 128-bit AES link encryption with key management

Memory

• SPI Flash: 2MB

AC Pass Through Power Socket

• Current rating: 13A max (UK), 16A max (DEU)

Hardware

• Qualcomm Atheros QC6410 chipset

Platform Support

• OS Independent with TCP/IP protocol installed

Power Supply

• Switch mode 100V-240V

LED Indicators

• Power, powerline and Ethernet LED indicators for displaying the current mode.

External Connectors

• 1 x Electrical power plugs
• 1 x AC Pass-through socket (available for UK and Europe)
• 1 x RJ45 for 10/100 Ethernet

Push Button/Switch

• 1 x Configuration push button (for simple connect and factory default reset)

Resin/Plastic Casing

• Polycarbonate, FR rating UL94-Vo

Measurements

• Weight: 200g

Power Consumption

• 2 Watt (230Vac)

Platform Support

• Windows 98SE/ME/2000/XP 32bit/Vista 32bit, Window 7(32/64-bit)
